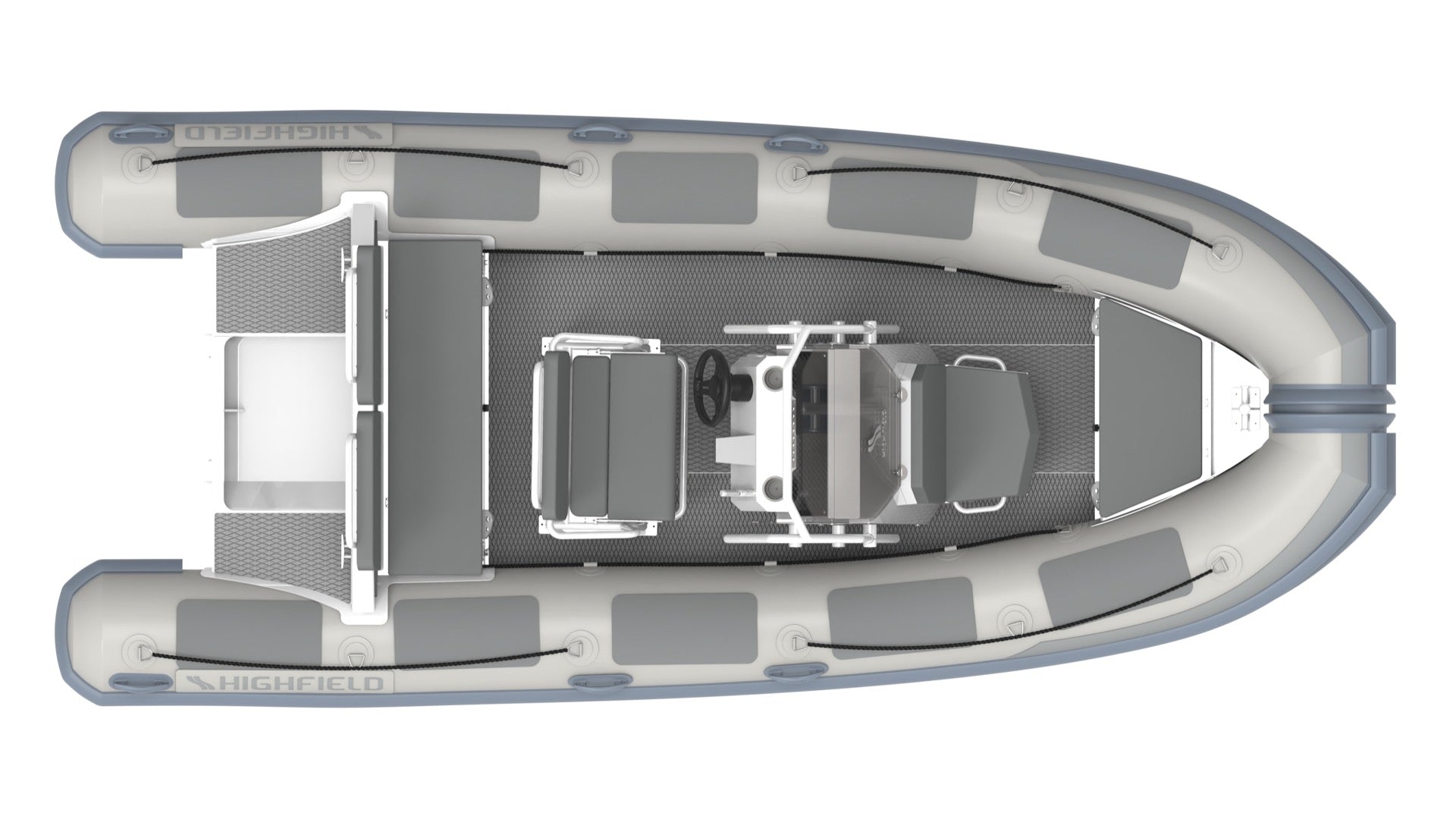

PATROL 540
Overall Length: 5.40m
Maximum People: 12
Max HP: 115 hp
Fuel Tank: 105L
Standard Features
- ORCA® Hypalon or PVC tube
- Bow Cushion
- Flush mount non-return valves
- High tensile chromated & powder coated aluminum hull
- Integrated transom supports
- Self-draining deck
- Steering wheel
- Integrated under-deck fuel tank
- Lifting points and towing eyes
- Anti-slip deck
- Heavy duty rubbing strake
- Keel guard
- Carbon dash
- Electrical pack for console
- Electrical pack for boat
- Transom ladder
- Bow cushion
- Welded seams (PVC)
- Highfield dry bag
- Foot pump, oars, repair kit
Optional Equipment
- Console & seat options
- Suspension seat with shock
- Roll Bar
- Hydraulic Steering System
5 Colour Schemes
Specifications
Overall Length: 5.40m
Internal Length: 4.30m
Overall Width: 2.48m
Internal Width: 1.33m
Dead Rise: 24°
Tube Diameter: 52 cm
# of Air Chambers: 6
Maximum Load: 1375 kg
Maximum People: 12
Boat only Weight: 574kg*
Fuel Tank: 105l
Max HP: 115hp
Engine Shaft: XL Single
Design Category: C
Package size for boat (l x w x h): 510 x 130 x 105cm
