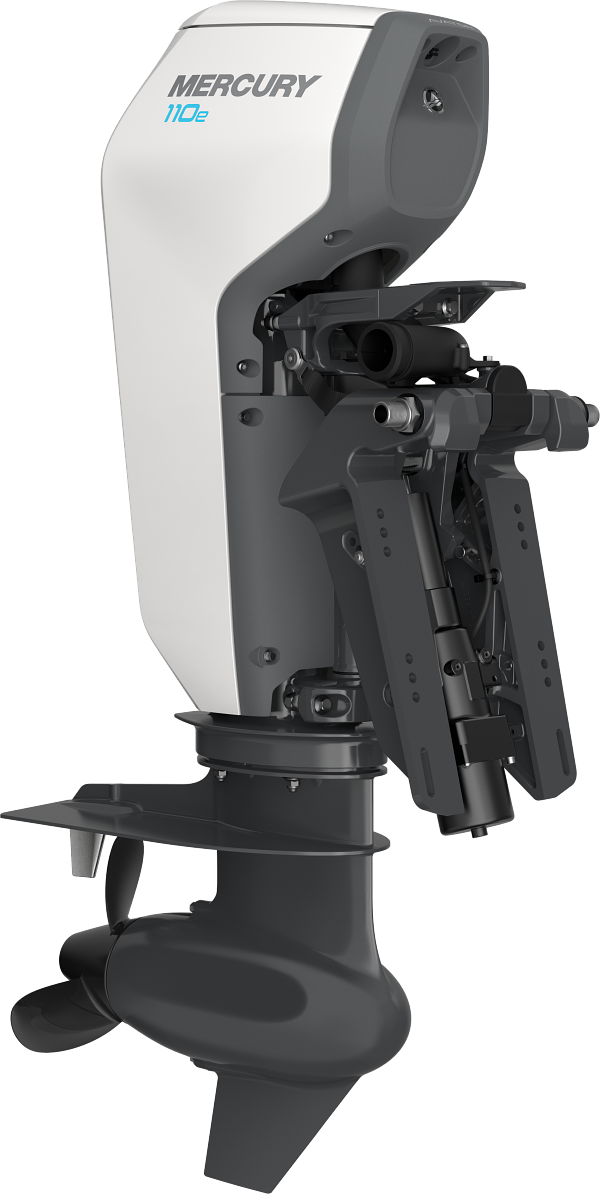

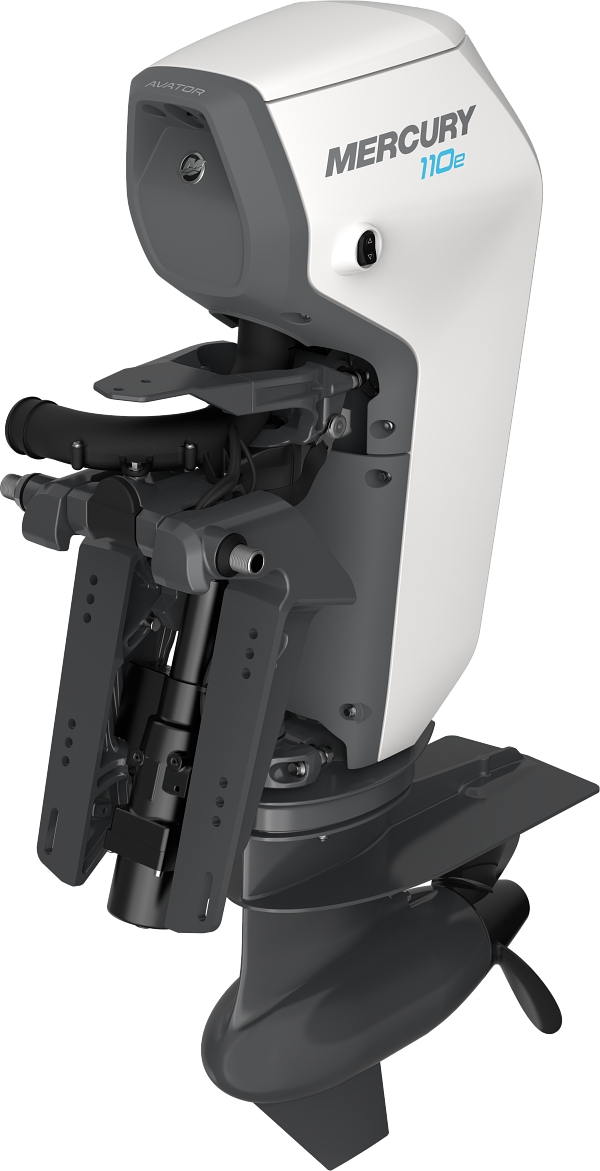

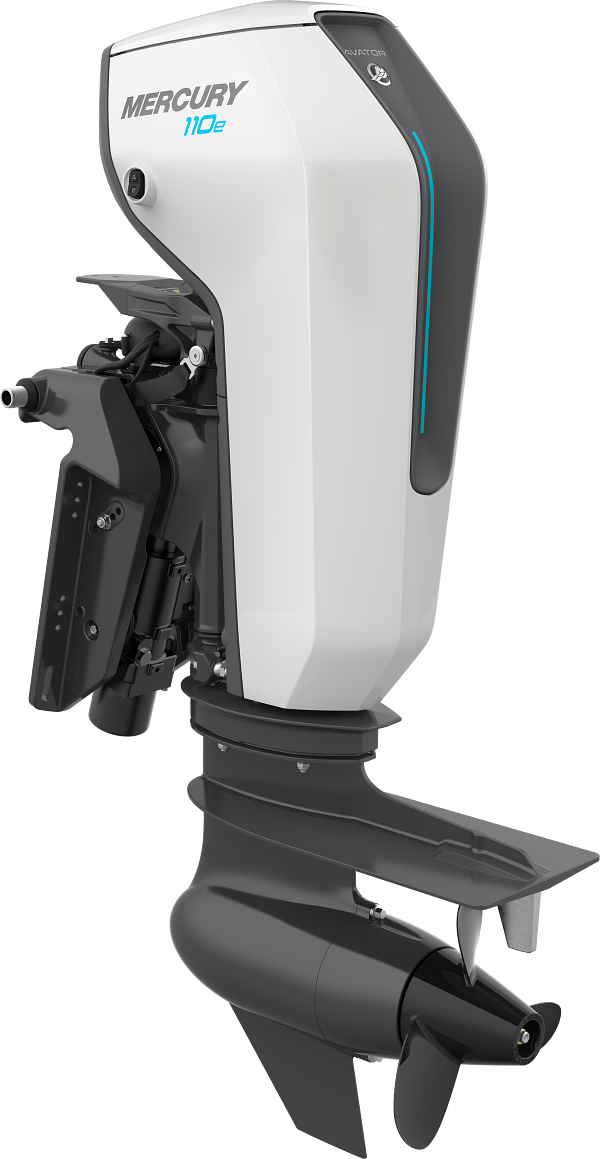

AVATOR 110E
Whether you’re relaxing in the sun or chasing the fish across your favorite lake, the enhanced power of the Avator™ 75e outboards gives you the freedom to expand the horizon and amplify your adventure.
SPECIFICATIONS
- Battery IP Rating: IP67
- Battery Weight: 93 lbs
- Battery: 5376Wh - LiFePO4
- Charger Options: 520W; 1050W
- Input Power: 12.8kW
- Rated Prop Shaft Power: 11000W
- Rated Voltage: 48V
- Shaft Length: 20 in / 508 mm; 25 in / 635 mm
- Propeller Options: 8P; 9P; 10.5P
- Steering: RC
- Total Drive Weight: 124 lb
FEATURES

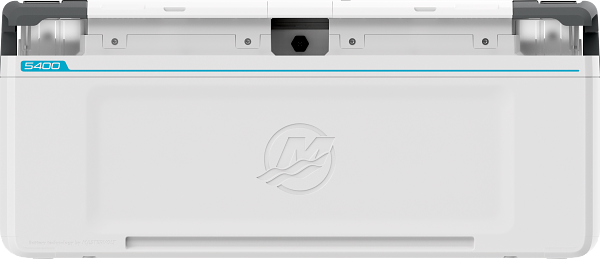

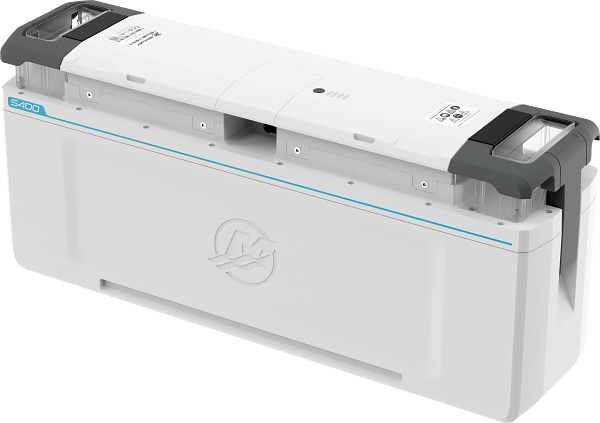

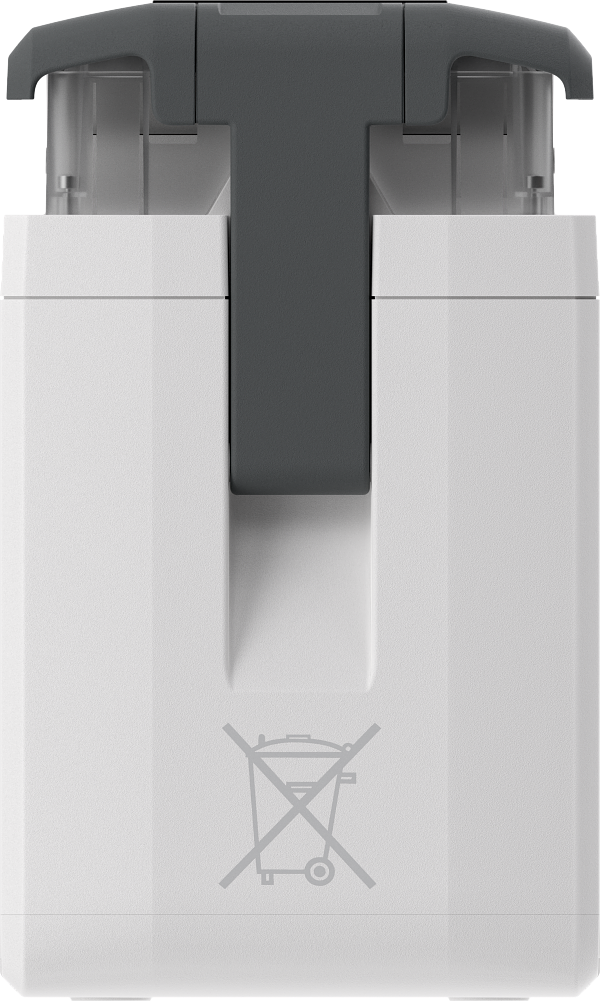

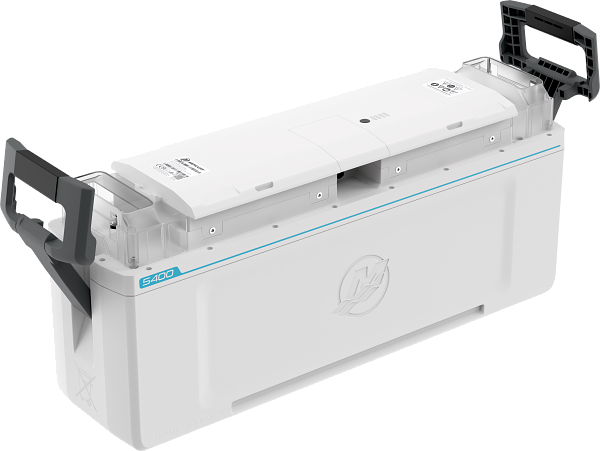

Modular Batteries:
Avator™ 75e and 110e outboards can be configured with up to four 5400Wh batteries, all connected through the 5400 Power Center for seamless integration and convenient single-point charging.

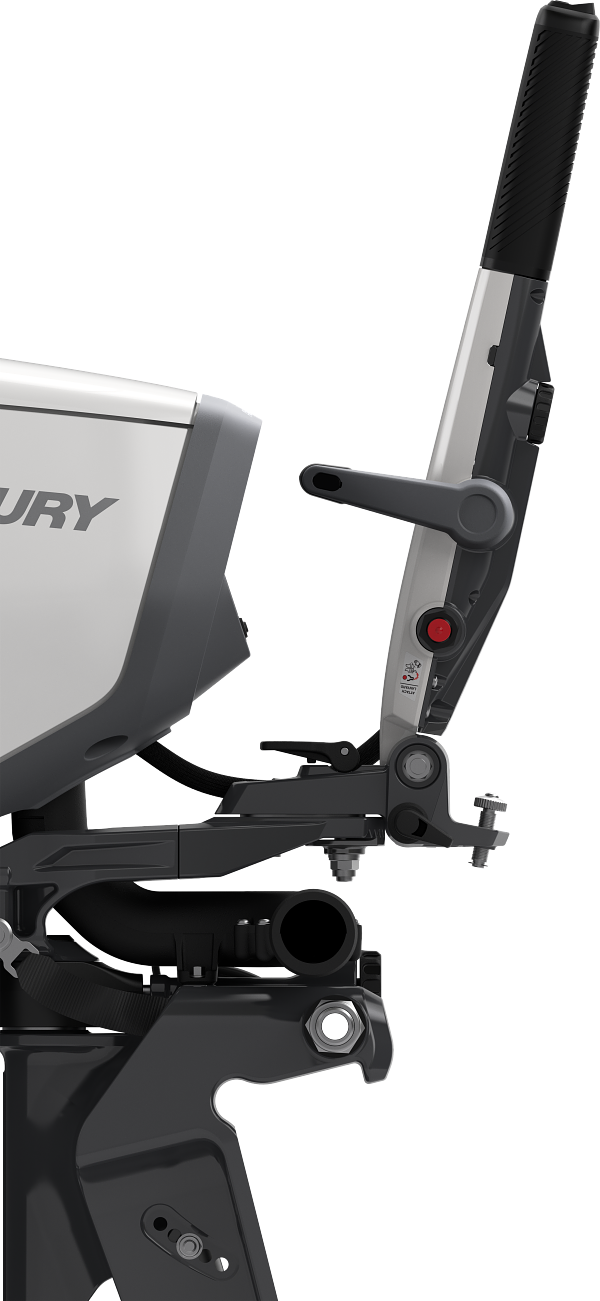

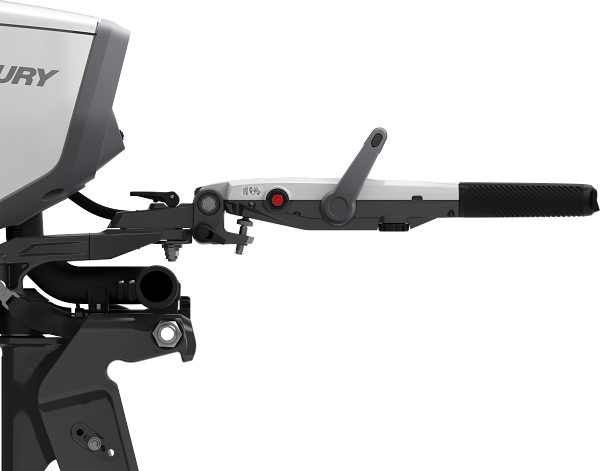

Tiller Handle:
The available tiller for the Avator 75e allows boaters to take control with confidence. The handle adjusts up and down for comfortable steering from any position, incorporates an integrated tilt switch and digital shift controls, and folds up when not in use.
Power Tilt:
The power tilt system makes it easy to dial in performance or raise the outboard in shallow water. You can adjust tilt effortlessly for maximum efficiency and performance.
5400 Power Center:
The 5400 Power Center is an integrated hub that distributes power from the battery bank throughout the system. It can also charge up to four connected batteries simultaneously from a single charging port.
Digital Controls:
For console boats, digital remote controls deliver instant throttle response, confident shifting, and power tilt control with zero hesitation for easy, safe piloting. Controls are available in three styles to fit a range of center- and side-console mounting positions.
Strong Transverse Flux Motor:
Industry-first transverse flux motor technology delivers immediate torque and reliable, efficient power. The motor turns a high-thrust three-blade aluminum prop that further optimizes battery life.
PERFORMANCE
Smooth & Quiet
Smooth, quiet electric power will get you where you’re going without interrupting the conversation.
Superior Efficiency
From the transverse flux motor to the lithium-ion batteries, we’ve optimized every aspect of the Avator propulsion system to deliver more efficient overall performance.
More Power, Bigger Adventures
The power of the Avator 75e and 110e outboards make them ideal for use on larger and heavier vessels, including medium-sized aluminum fishing boats and pontoons.
ADVANTAGES
Smooth Performance:
Vibration-isolating components help ensure your ride is quiet and smooth, keeping you better connected with nature.
Sustainability:
Avator outboards transform the boating experience by making boating possible with no exhaust fumes and zero direct emissions.
Corrosion Resistance:
Every Avator outboard is engineered with proven corrosion-preventive materials and coatings, so you can boat confidently in freshwater or saltwater.
Easy Storage and Maintenance:
With no fuel, no fumes and minimal maintenance, an Avator outboard is simple to own so you can spend your time on the water.
