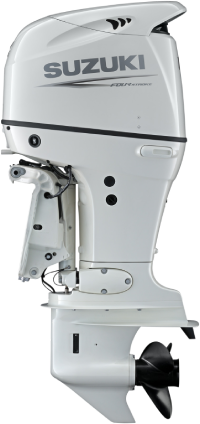

DF115
The all new Suzuki DF115B is perfect for all kinds of freshwater, inshore and offshore fishing boats. Bottom line, you won’t find more power, more advanced technology or a more compact package anywhere else. First in it’s class to offer both Mechanical and Digital Controls.
SPECIFICATIONS
- MODEL: DF115
- Body Color: Pearl Nebular Black or White
- Recommended Transom Height (inches): L: 20 X: 25
- Starting System: Electric
- Weight LBS: Mechanical: L: 414 X: 423 Digital: L:419 X:428
- Engine Type: DOHC 16-Valve
- Fuel Delivery System: Multi Point Sequential Electronic Fuel Injection
- No. Of Cylinders: 4
- Piston Displacement inches (cc): 124.7 (2044)
- Bore X Stroke Inches (mm): 3.40 x 3.50 (86 x 88)
- Maximum Output HP: 115
- Operating Range (RPM): 5000-6000
- Steering: Remote (Tiller Kit Optional)
- Choke: N/A
- Oil Pan Capacity quarts (liter): 5.8 (5.5)
- Ignition System: Solid State Electronic Ignition
- Alternator: 12V 40A
- Trim Position: Power Trim and Tilt
- Gear Ratio: 2.59:1
- Standard Propeller: Optional See Dealer
- Controls: Mechanical(B) or Digital(BG)
- Propeller Selection: 15 - 2
FEATURES
Form meets function:
As the result of research by Suzuki engineers, we’ve designed an updated engine cover that not only looks more powerful, but delivers maximum cooling efficiency for the engine.
Keep water out:
Water in fuel can lead to problems like poor combustion, lower power output and corrosion. The Suzuki Water Detecting System is specially designed to protect your engine from moisture using a water detecting fuel filter that alerts you with both visual and audio warnings.
Know your limits:
Protect your boat and motor from damage that can occur from tilting the motor with the help of a user adjustable tilt limit switch. When adjusted properly, our Tilt Limit System prevents the outboard from tilting beyond a predetermined point.
Knock-your-socks off performance:
The DF115 is one of Suzuki’s first four-cylinder outboards to feature a knock sensor. Found on some V6 models, this system is used to detect and control abnormal combustion to give you better performance, maximum power and increased durability.
