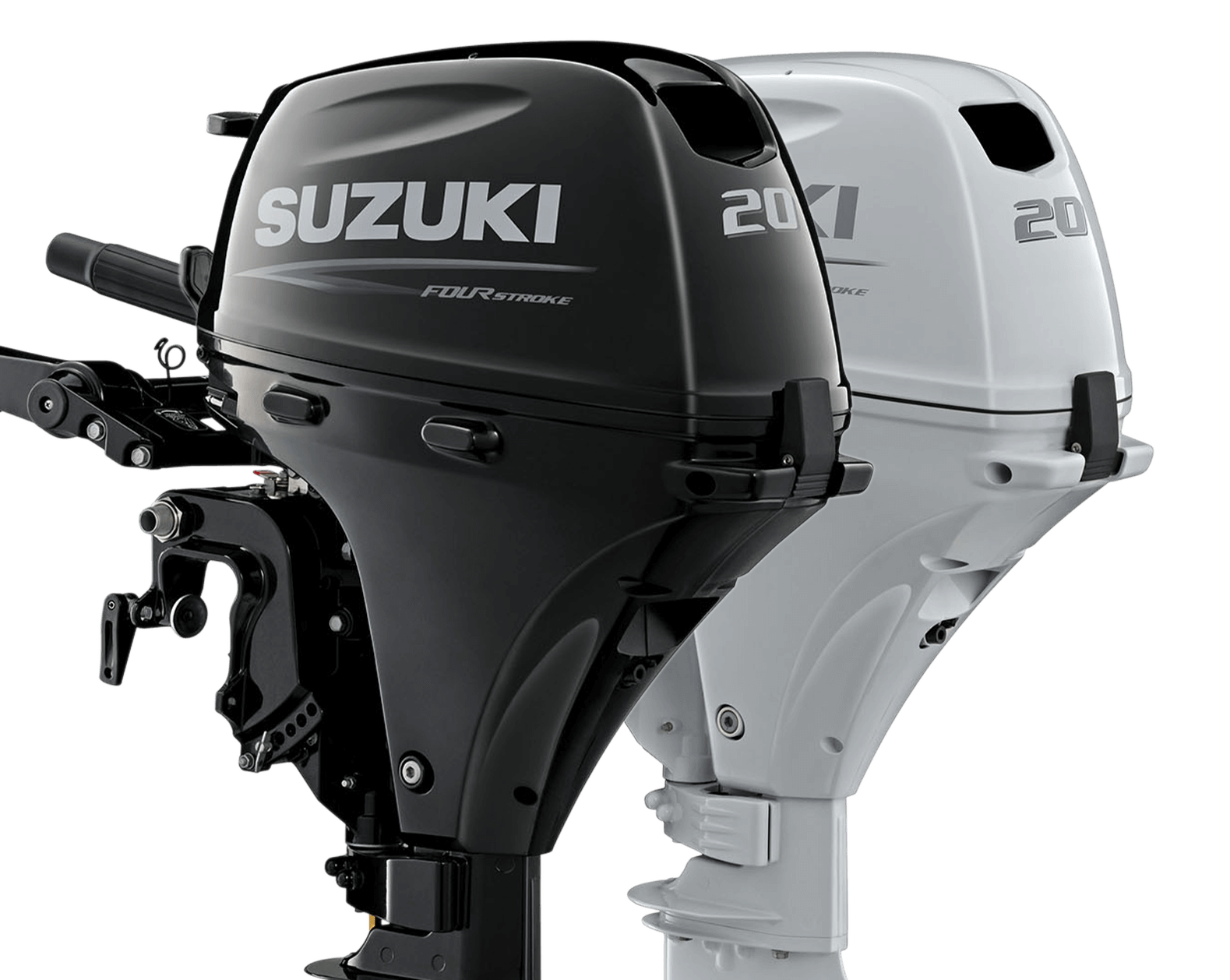

DF20A
The result of a complete redesign that strove to create the lightest parts possible without compromising integrity, our engineers have successfully crafted an outboard that, even when configured with a power tilt system, still weighs less than any other outboard in the four stroke 14.7kW (20PS) class. Beyond being ultra-light, the DF20A EFI is also among the most technologically advanced portable outboard motors on the market, featuring Suzuki’s proven Lean Burn Control System and Battery-Less Electronic Fuel Injection.
SPECIFICATIONS
- MODEL: DF20A
- Body Color: Pearl Nebular Black or White
- Recommended Transom Height (inches): S: 15" L: 20"
- Starting System: S 15" Manual and Electric / L 20" Electric
- Weight lbs: S Manual:97 lbs S Electric:105 lbs / L Electric:108 lbs
- Engine Type: SOHC 4-Valve
- Fuel Delivery System: Electronic Fuel Injection with Lean Burn
- No. Of Cylinders: 2
- Piston Displacement inches (cc): 20.0 (327)
- Bore X Stroke Inches (mm): 2.38 x 2.24 (60.4 x 57)
- Maximum Output HP: 20
- Operating Range (RPM): 5000 - 6000
- Steering: Tiller
- Choke: N/A - Suzuki EFI
- Oil Pan Capacity quarts (liter): 1.06 (1.0)
- Ignition System: Digital CDI
- Alternator: Manual 12V 6A / Electric 12V 12A
- Trim Position: 5 Tilt Pin Positions and 2 Shallow Water Drive Settings - Option Power Tilt
- Gear Ratio: 2.08:1
- Standard Propeller: 3 x 9.25 x 9
- Propeller Selection: 7 - 11
FEATURES
Twenty horses at your command:
Our DF20A represents a unique leap forward in the way that power is converted into performance. Through extensive testing, we have engineered this small footprint motor to make the most of every ounce of horsepower. Beyond being ultra-light, the DF20A EFI is also among the most technologically advanced portable outboard motors on the market.
