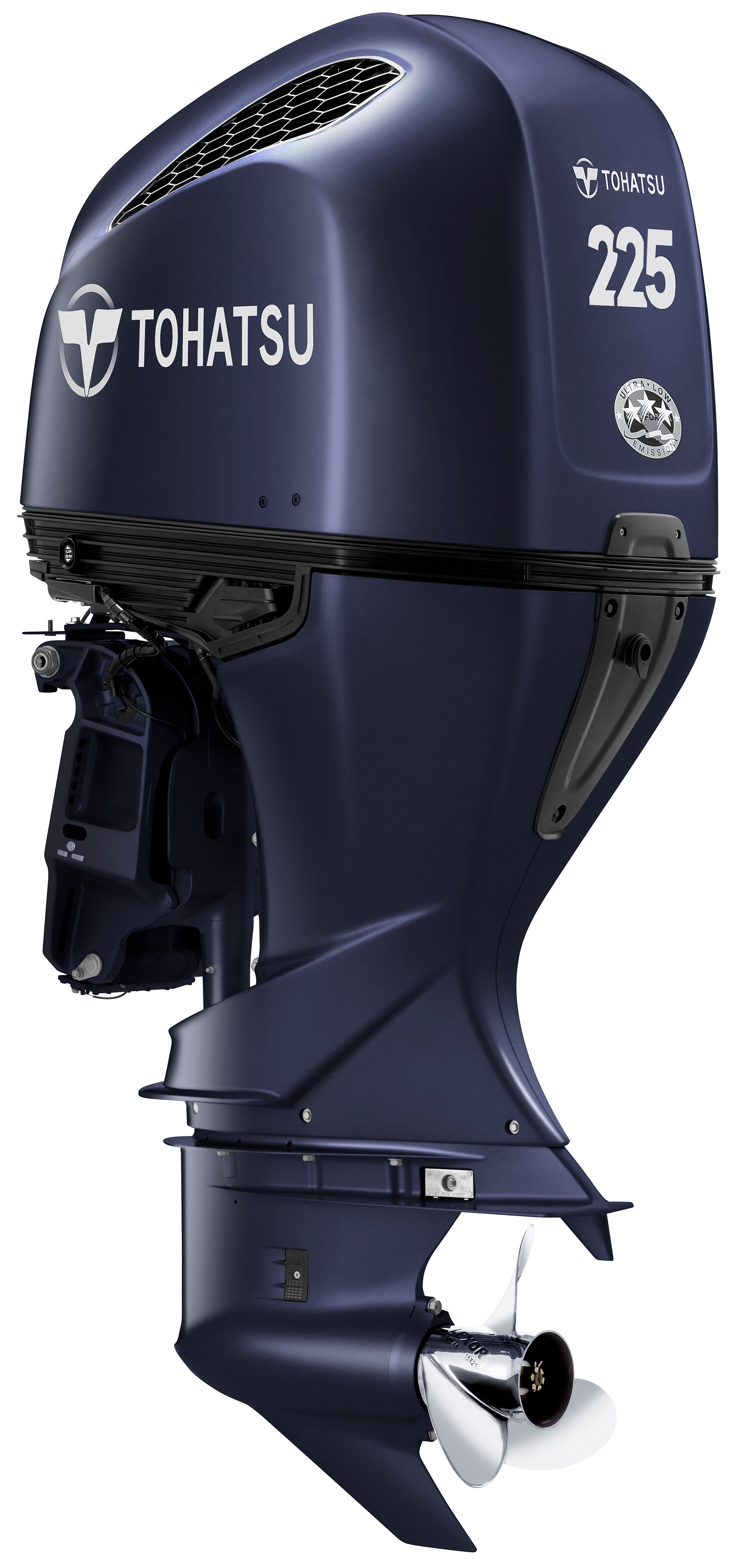

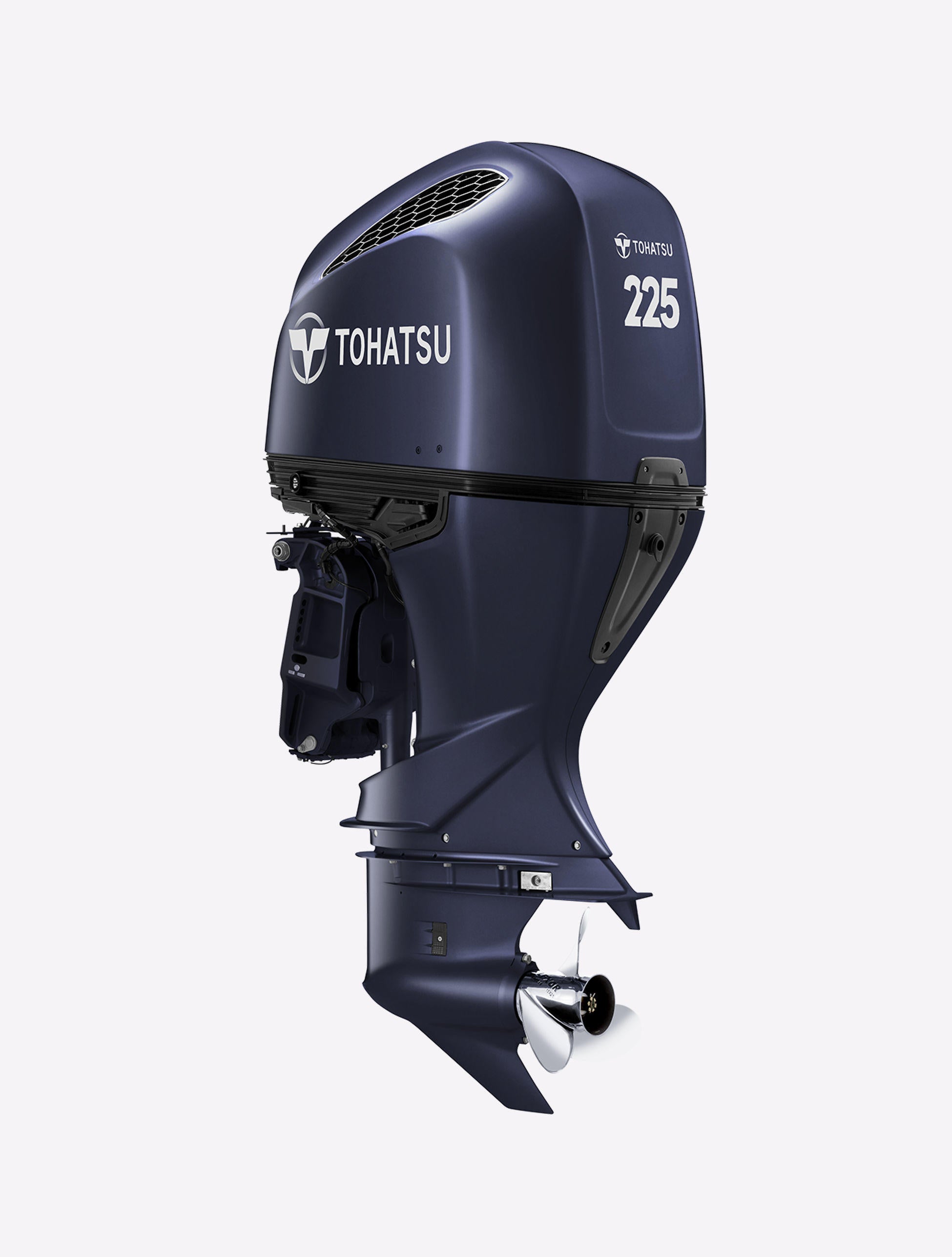

BFT225D
HIGH POWER
The 225 hp powerful four stroke, the BFT225D, brings a large displacement 3.6 liter V6. This narrow V6 design offers top performance and durability, as well as great fuel economy. The high output alternator provides a 90 amp alternator with 60 charging amps.
The new BFT225D provides a broader torque range and smoother power throughout the engine’s operating range. With an innovated exterior, the improvement of corrosion resistance and water intrusion makes BFT225D the right choice.
SPECIFICATIONS
- Engine (No. of Cylinder): 6 Cylinder SOHC, 60° V6, 24 Valve
- Output: 225 hp (167.8 kw)
- Displacement: 3,583 cc (218.6 cu.in.)
- Bore x Stroke: 89 x 96 mm (3.5 x 3.78 in)
- Max. RPM Range: 5,000 - 6,000
- Starting: Electric
- Control Type: Remote Control
- Gear Shift: Forward - Neutral - Reverse
- Gear Ratio: 2.0:1
- Ignition System: MicroComputer Programmed
- Transom Height: 20", 25"
- Fuel: Unleaded Gasoline (87 Octane) or higher
- Oil Type: NMMA Certified FC-W® 4-stroke oil** SAE 10W-30 (SF, SG, SH, SJ)
- Oil Capacity: 2.1 gal. (7.8 L) with filter
- Weight*: 619 lbs. (281 kg)
- Alternator Output: 12V, 720W, 90A***
- Programmed Fuel Injection: Standard
- Start In Gear Protection: Standard
- Thermostat Controlled Cooling System: Standard
- Through-The-Prop Exhaust: Standard
- Overheat Buzzer: Standard
- Oil Pressure Warning: Standard
- Power Trim and Tilt: Standard
- Variable Valve Timing & Lift Control: Standard
* Weight specification is based on the lightest version.
** FC-W® is a registered trademark of the National Marine Manufacturers Assoc. (NMMA)
Specifications and descriptions are subject to change without notice.
***D.C. Output
FEATURES
Variable Valve Timing and Lift Control
system provides power where and when you need it. This gives you a broader, flatter torque curve and smooth power delivery throughout the engine's operating range. The result is a superior combination of power, torque and fuel efficiency.
Large Displacement V6
A poweful compact 24 valve Single Overhead Cam [SOHC] design. The narrow V6 design offers top performance and durability as well as great fuel economy.
Dual Stage Induction - Breathing easier improves performance
BFT 225 has a unique variable intake system which optimizes air flow to match the engine's speed. The results are maximized combustion efficiency, increased torque, and superb fuel economy.
4-front Corrosion Protection System
A patented, "Double Sealed" multi-layered paint process, sacrificial anodes and stainless steel technology, along with waterproof connectors, all enhance corrosion protection.
Tohatsu 225 hp 4-Stroke Benefits
- High output alternator that produces 90 amp alternator with 60 charging amps
- Large Displacement 3.6 Litre V6
- Available in 20" & 25" shaft lengths. Standard and Counter rotation
- Double sealed multi-layered paint process to help protect against corrosion
- Painted interior cooling passages for extra protection against corrosion
- Semi direct air intake system
- Enhanced sealing system by adopting three new large locks
- Ultra-low 3 star CARB emission approved
- 5 Year limited warranty
4-Stroke Technology
- Lean burn control for better fuel economy at cruising speeds
- Maximum Acceleration System helps to deliver an exceptional hole shot
- Variable valve timing and lift control
- 3-Way Cooling System to help protect against overheating
- Heavy duty 5" diameter gear case built to withstand extreme conditions
- Non-linear rubber mounts provide smoother operation at all engine speeds
- A crankshaft-driven trochoid oil pump ensures long-term durability of critical engine components
- Optimized Fuel Injection delivers the precise amount of fuel/air to each cylinder
Fundamentals for User Convenience and Reliability
- Through the prop exhaust for a quieter ride
- Built-in freshwater flushing system for easy routine flushing
- Separate dual air intake cowling design to help keep your engine's critical components cool
- Sealed starter motor that is inverted into a sealed chamber to help protect vital components against elements
- Electronic Control Module protocols allow engine data to be interfaced with on-board systems and systems displays, such as SONAR or GPS
Warning & Protection
- Low oil pressure warning
- Overheat warning
- Water in fuel warning
- Start-in-gear protection
- Over-rev. limiter
