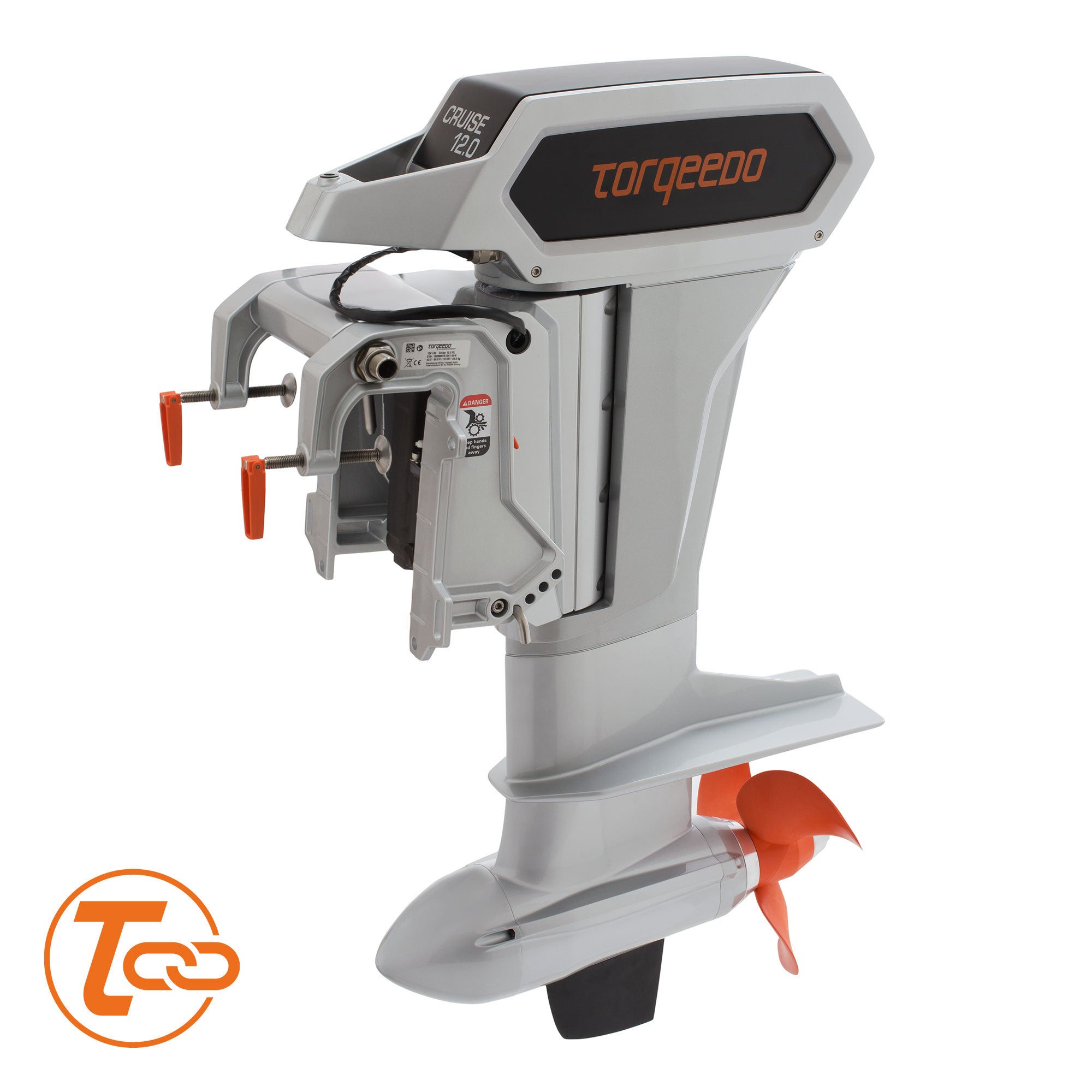

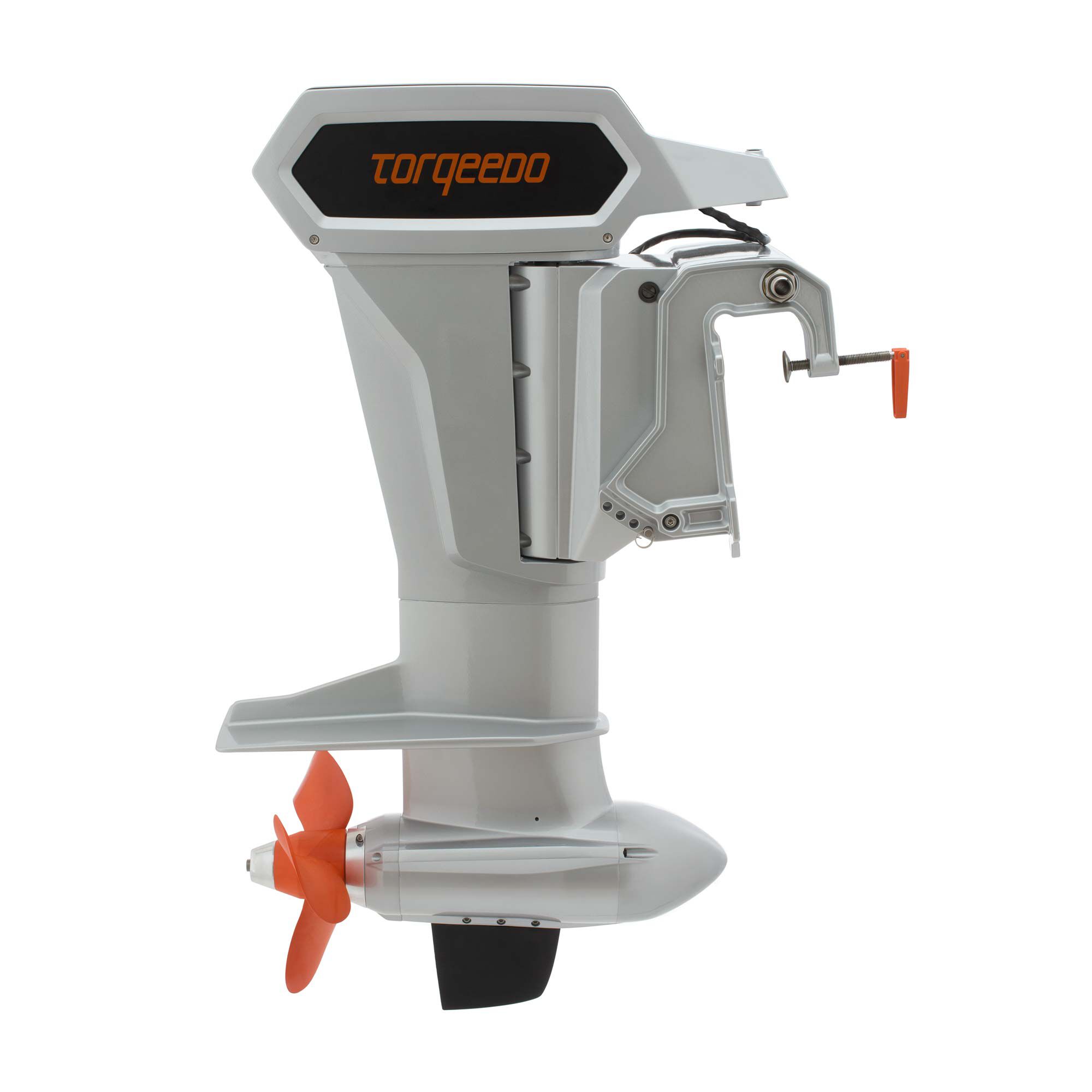

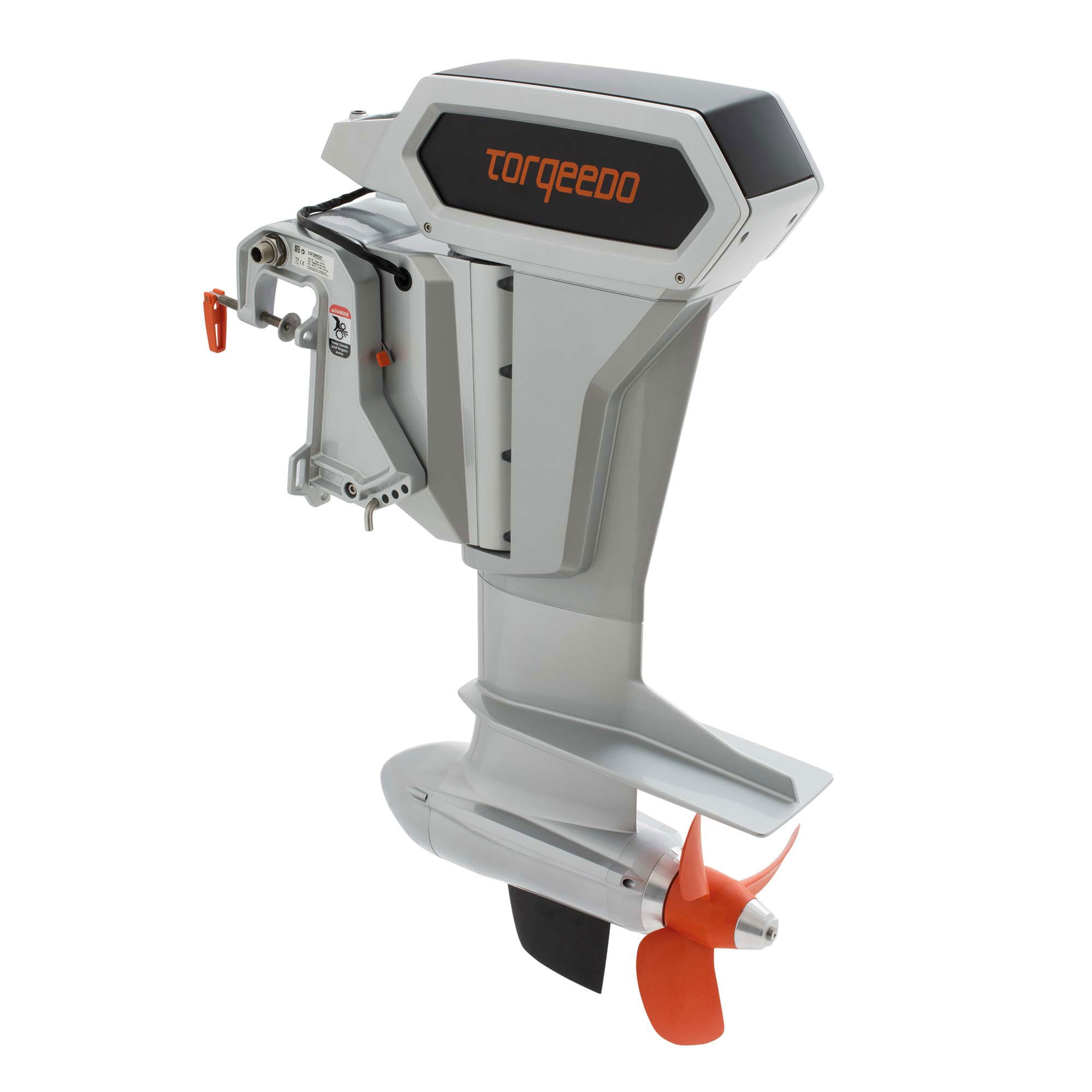

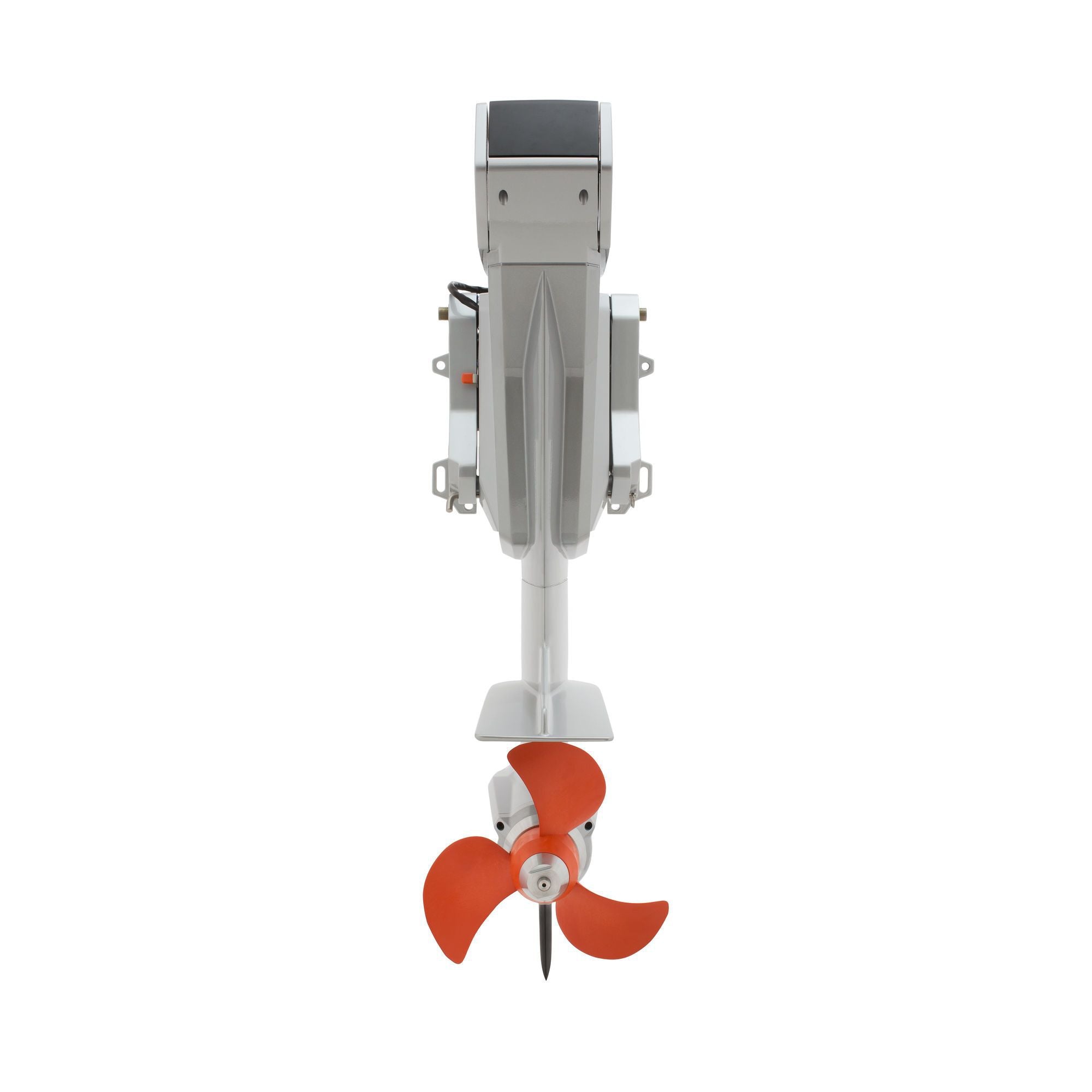

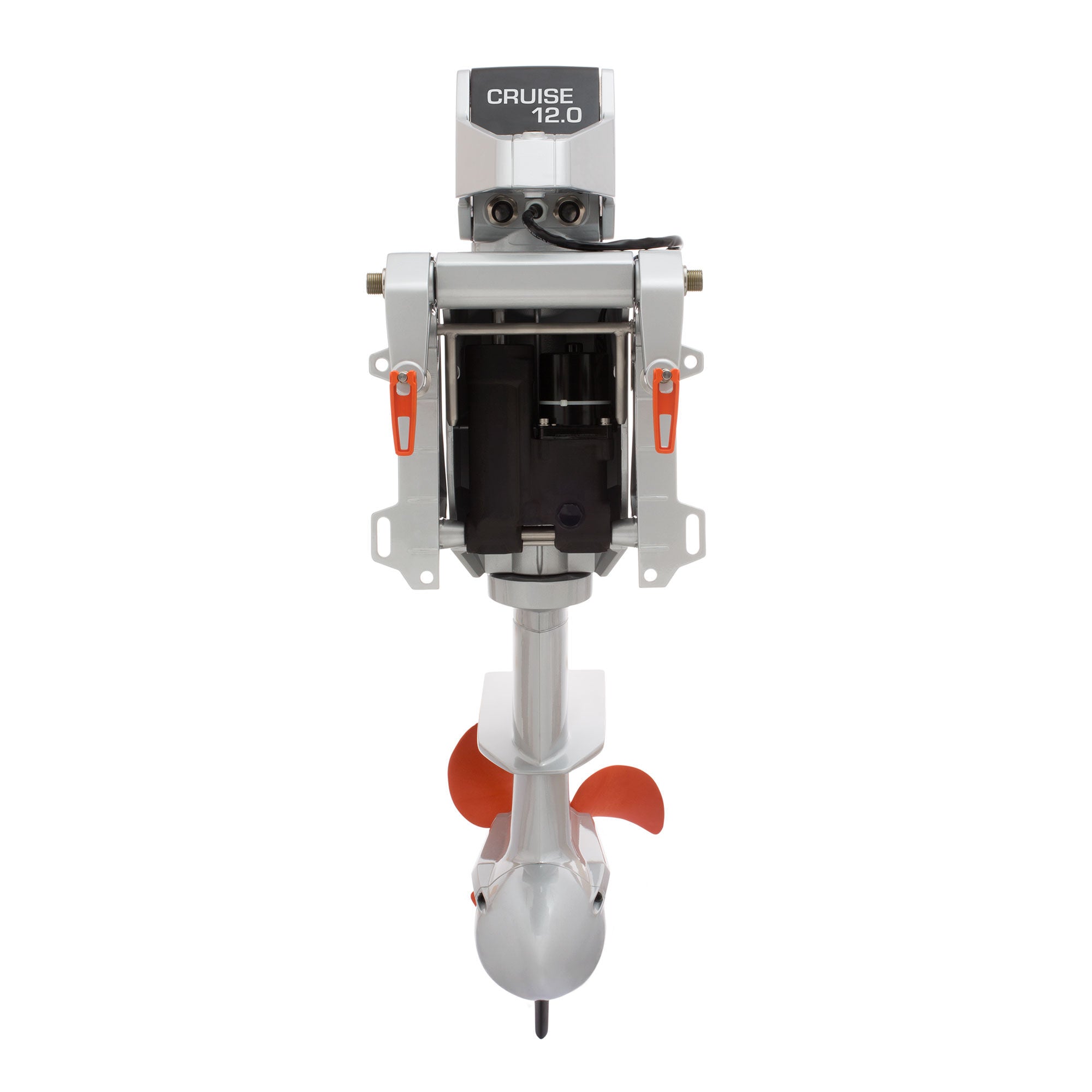

Cruise 12.0 RS TorqLink
Electric outboard for motorboats and sailboats up to 12 tons
- 12 kW continuous power - powerful propulsion like a 25 hp combustion engine
- TorqLink data interface - enables fast data exchange between TorqLink components without gateway
- Electric tilting device for comfortable operation
- Easy handling thanks to low-voltage design (48 volts)
- Very robust construction - corrosion-protected, seawater-proof and waterproof all around (IP67)
- Battery connection cable with water-protected battery pole terminals (IP 66) for connecting up to two Power 48-5000
- Variants: Short shaft S: 38.5cm shaft length, long shaft L 51.2cm shaft length, extra long shaft XL 63.9cm shaft length
- Weight (without cable & main switch): 59.8 kg (S), 61.3 kg (L), 62.5 kg (XL)
- To operate the Cruise 12.0 with more than two Power 48-5000 batteries, please contact your Torqeedo dealer
- Please note that the engine power is reduced to 6 kW when operating with only one Power 48-5000 battery
SPECIFICATIONS
- Input power in watts: 12,000
- Propulsive power in watts: 6720
- Comparable petrol outboards (propulsive power): 25 CV
- Comparable petrol outboards (thrust): 25 CV
- Maximum overall efficiency in %: 56
- Static thrust in lbs*: ≤ 405
- Integrated battery: -
- Nominal voltage: 48
- Final charging voltage: -
- Weight in kg (w/o cables & main switch): 59.8 (S), 61.3 (L), 62.5 (XL)
- Motor weight without battery in kg: -
- Weight of integrated battery: -
- Shaft length in cm: 38.5 (S) / 51.2 (L) / 63.9 (XL)
- Standard propeller
v = speed in km/h at p = power in watts: v22/p10k - Alternative propeller options: v32/p10k & v15/p10k
- Maximum propeller speed in rpm: 1,400
- Control: Remote throttle
- TorqLink: Yes
- Steering: Provision to connect to standard remote steering
- Tilting device: Electrohydraulic tilt device with overload protection.
- Tilt angle: +-45°
- Trim device: Manual, 4-step
- Integrated on-board computer: Yes
- Stepless forward/reverse drive: Yes
Cruise motors are the electric outboard motor of choice for motorboats, dinghies and commercial users. All Cruise systems have a built-in GPS with onboard computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon due to advanced helical gear design. Cruise 12.0 is a 48-Volt, 25 horsepower-equivalent outboard perfect for boats up to 10 tons. The Cruise 12.0 R ships with Torqeedo’s advanced communication system, TorqLink (see below for further information), which allows faster and more accurate data sharing between system components.
Cruise 12.0 R TorqLink - Benefits:
- High-efficiency outboard with 12,000 W input power, equivalent to a 25 HP petrol outboard
- Pair with two or more Power 48-5000 for best performance and accurate range/runtime functionality
- This model ships with remote steering link arm
- Your choice of TorqLink throttles (we recommend part number 1976-00 TorqLink throttle with colour display)
- Rugged aluminium pylon with integral fin – extra protection when running aground
- Highest-grade seawater-proof aluminium for long service life, even in the harshest conditions
- Comprehensive galvanic corrosion protection through careful matching of all materials and meticulous isolation of materials with different electrochemical properties - ships with anode set for fresh and saltwater
TorqLink is Torqeedo’s advanced electronics communication system developed for Deep Blue and now available for select Cruise motors, throttles and Power 48-5000 batteries. All products marked TorqLink will communicate seamlessly at startup. A TorqLink Gateway (2217-00) allows you to include components without TorqLink in your system.
