GENERATION 525 DLX
LUXURY PERFORMANCE TENDER
The Generation 525 luxury yacht tender is the result of countless hours of research, design and development. We designed this deluxe console boat from the beginning to be superior in every way. From the Polyurethane Composite Micro Stringer System that results in a smoother ride, to our proprietary jig and alignment system for better alignment and better handling, we’ve thought through every detail and then put our design through extensive testing to deliver a Deluxe RIB unlike any other.
- 17’2″ LENGTH OVERALL
- 10 ppl MAX CAPACITY
- 115 hp MAXIMUM HP
- 1160 lbs BOAT WEIGHT
SPECIFICATIONS
LOA – 5.25m / 17’2″
Beam – 2.44m / 8’4″
Tube Diameter – .51m / 20″
Internal Length – 3.30m / 10’10”
Internal Beam – 156cm / 5’2″
Chambers – 5
Max Passengers – 10
Max Load – 1250kg / 2750lbs
Boat Weight – 527kg / 1160lb
Max Power – 86kw / 115hp
Recommended Power – 68kw / 90hp
Max Recommended Speed – 40 kt
Tank Size – 125L / 32gal
Tube Material – Orca CSM®
Model specific features
Gray or Mocha EVA Steps – Included
Gray or Mocha EVA Floor – Optional
Stern Boarding Ladder – Included
Retractable Ski Post – Optional
Fresh Water Shower – Included
Sun Bed – Optional
STANDARD FEATURES

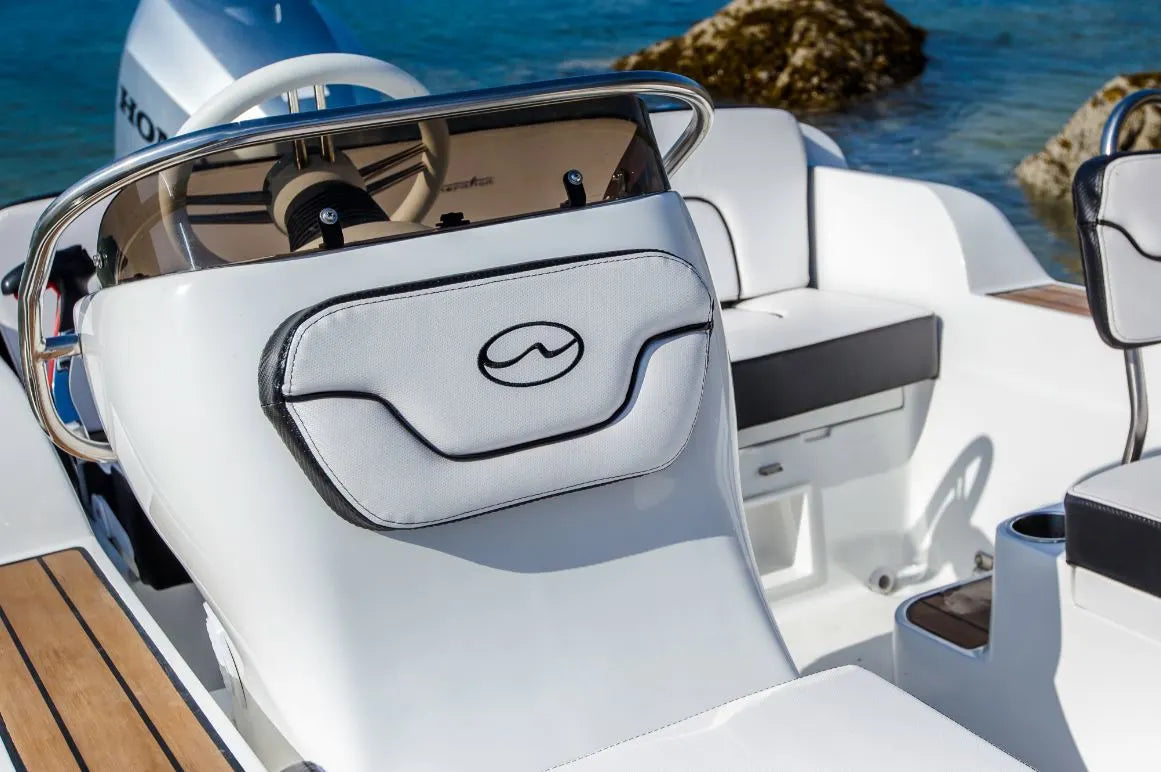

- Console w. Passenger Backrest Cushion
- Hydraulic Tilt Steering System

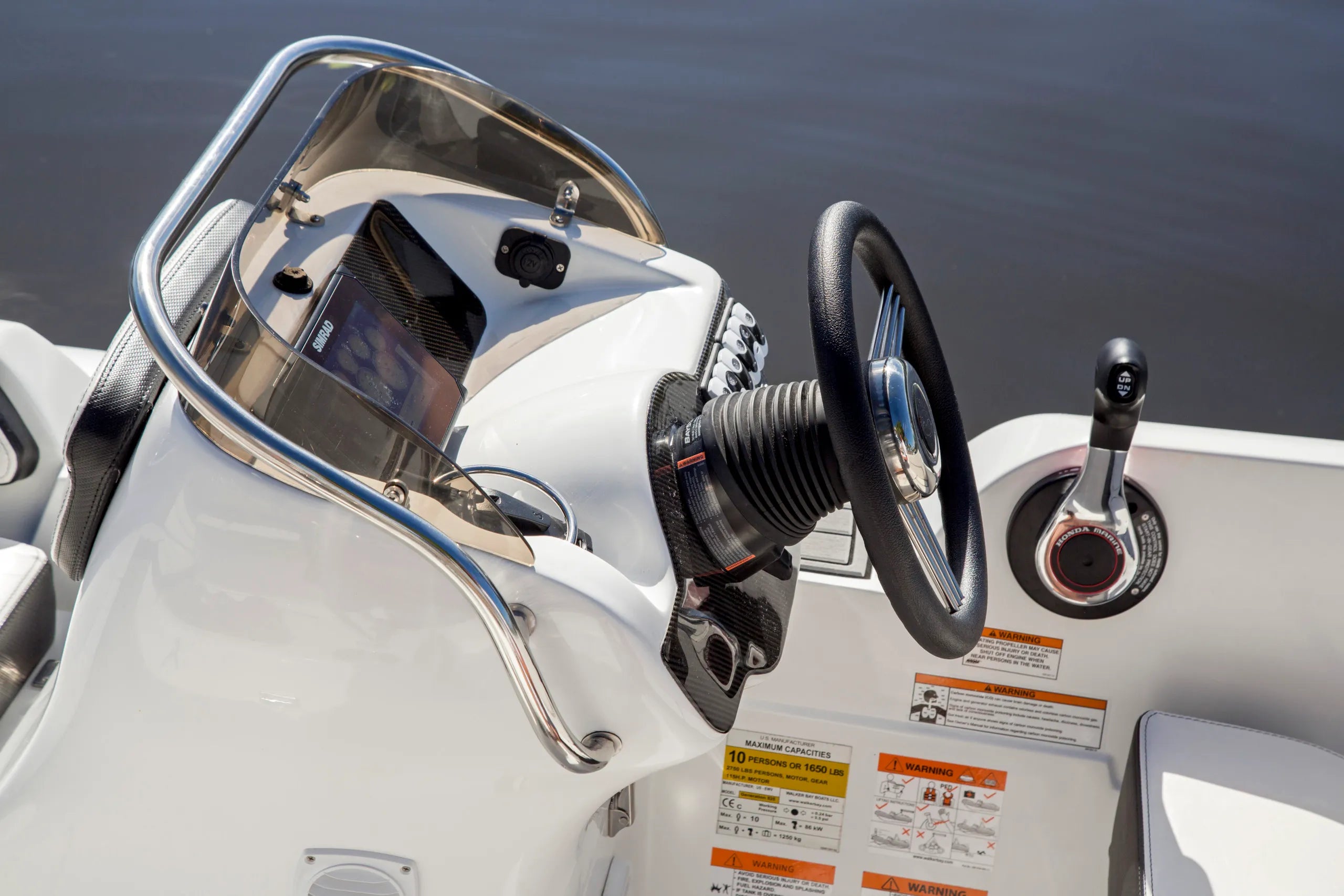

- Deluxe 13” Steering Wheel
- Deluxe Boarding Ladder
- Port and Starboard Boarding Steps

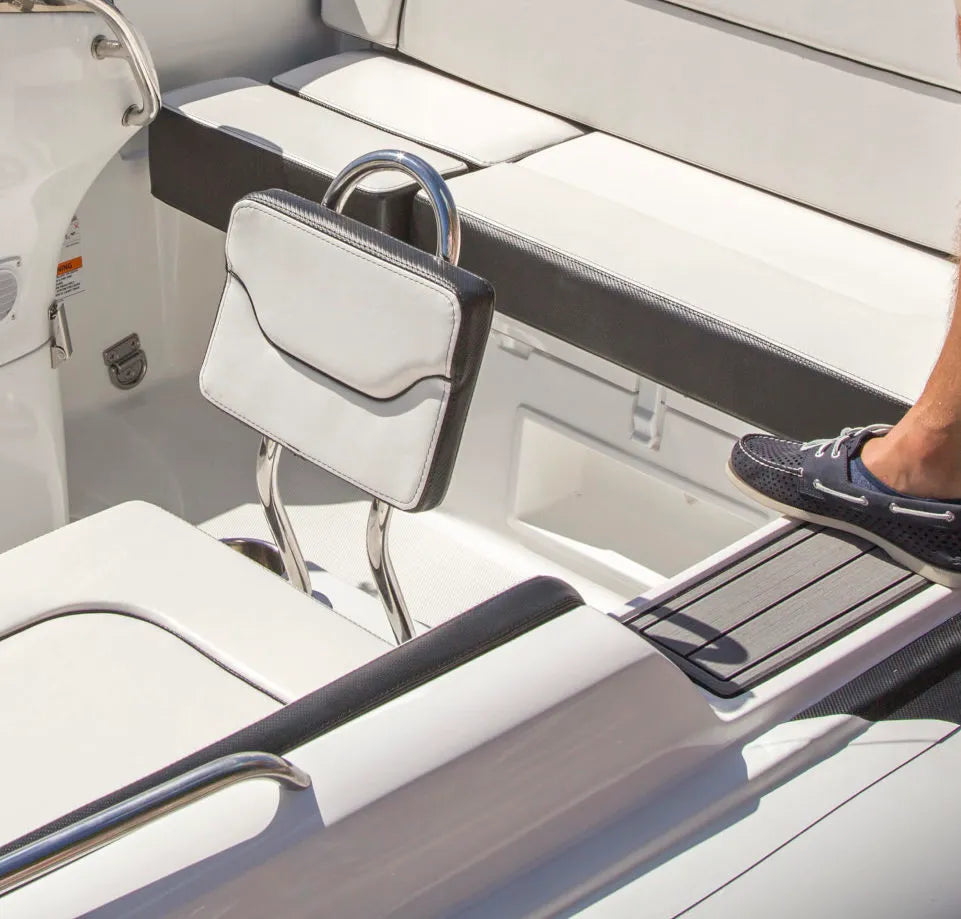

- Removable Leaning Post / Boarding Handle

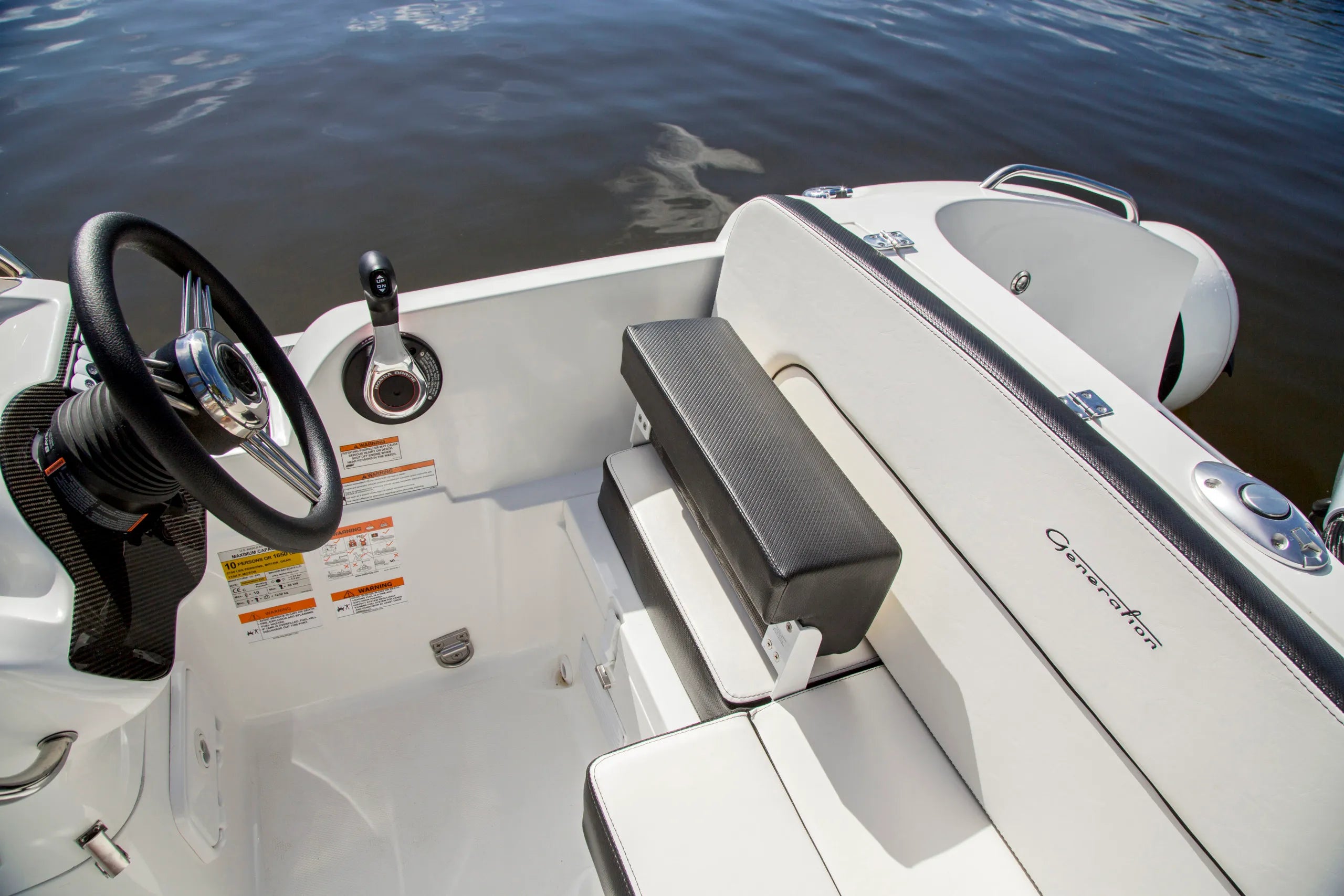

- Driver’s Side Flip-up Bolster Seat
- 5 Stainless Steel Cup Holders
- Heavy Duty Stainless Steel Towing Rings
- 6 Stainless Steel Handrails
- 4 Stainless Steel Pop-up Cleats
- 4 Davit Lifting Point Options
- 7 Stainless Steel Davit Lifting Points
- Low Profile LED Bow Light

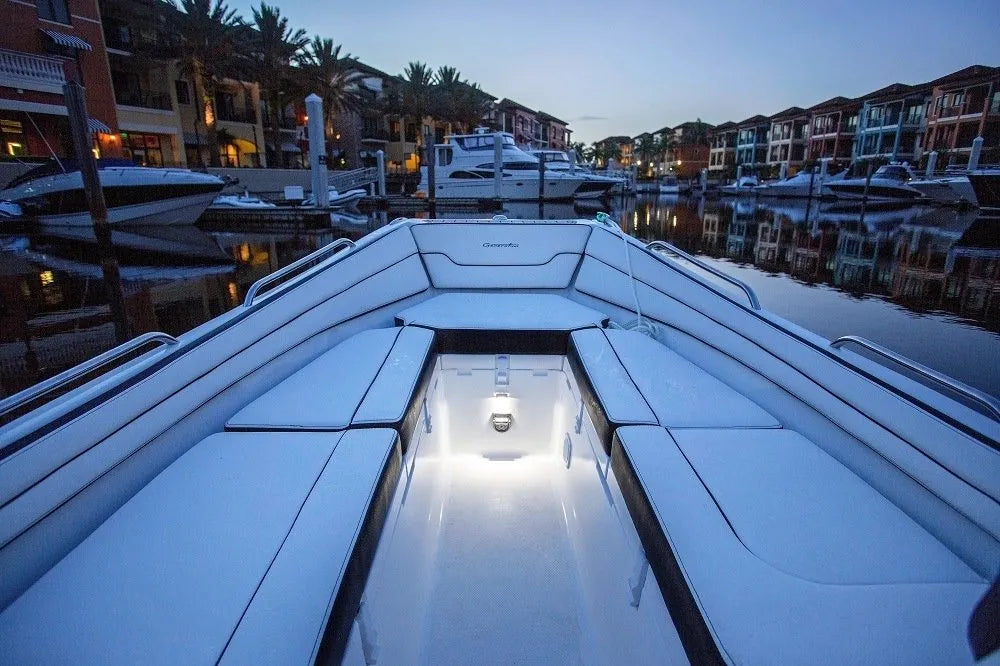

- LED Courtesy Lights
- Fresh Water Shower (10G/38L Capacity)
- Deluxe Cushions

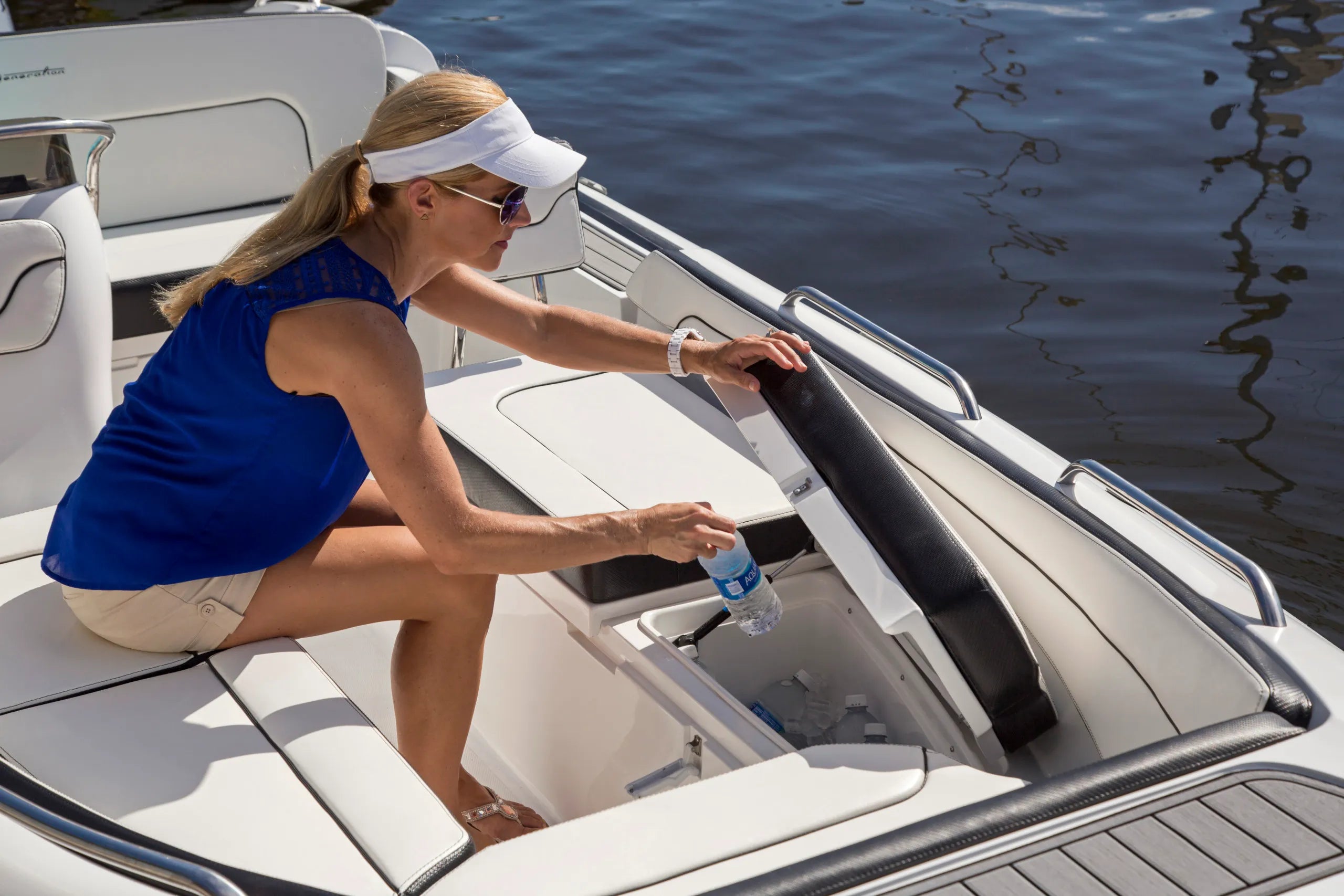

- 2 Insulated Cooler Lockers

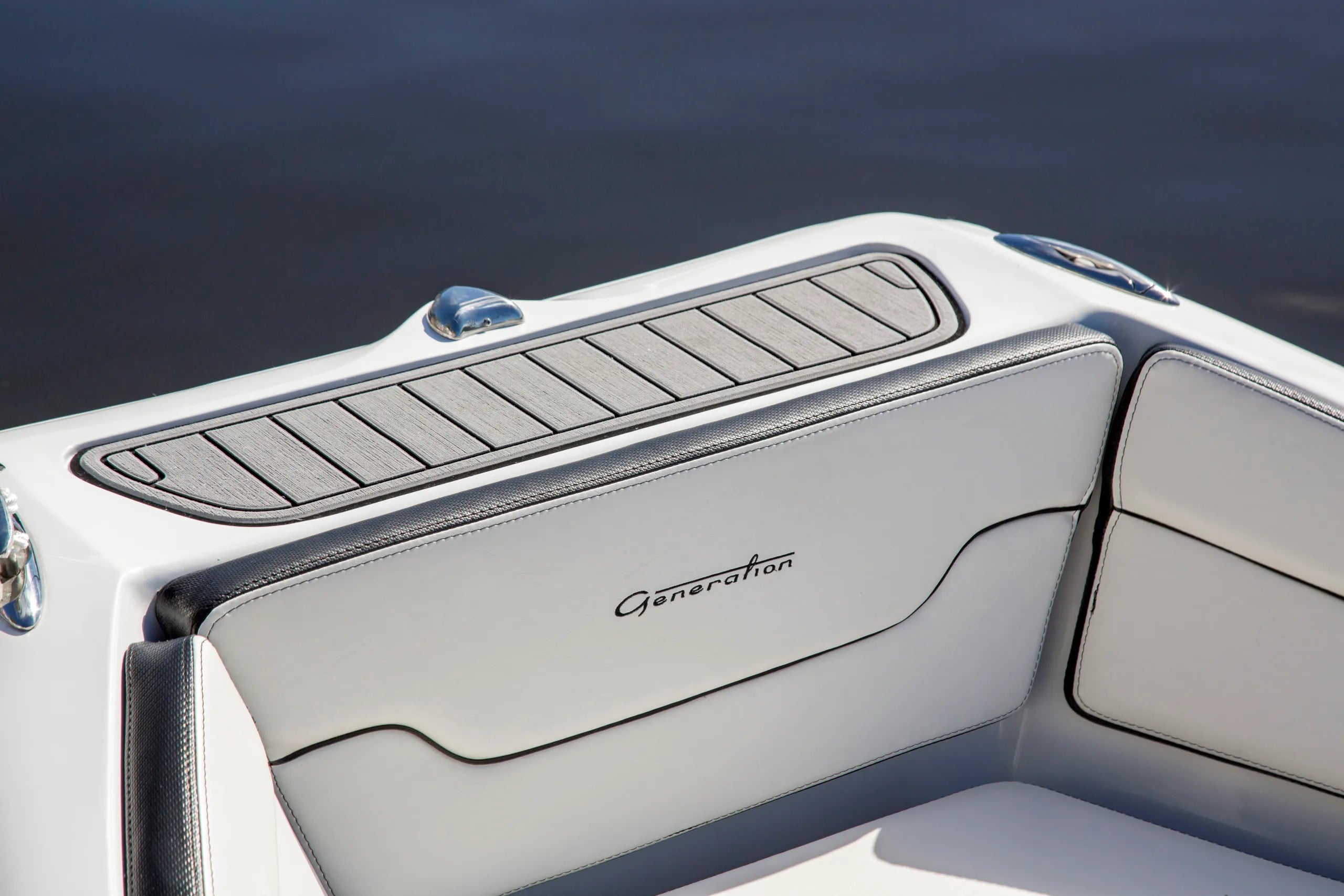

- Gray or Mocha EVA Boarding Steps
OPTIONAL FEATURES

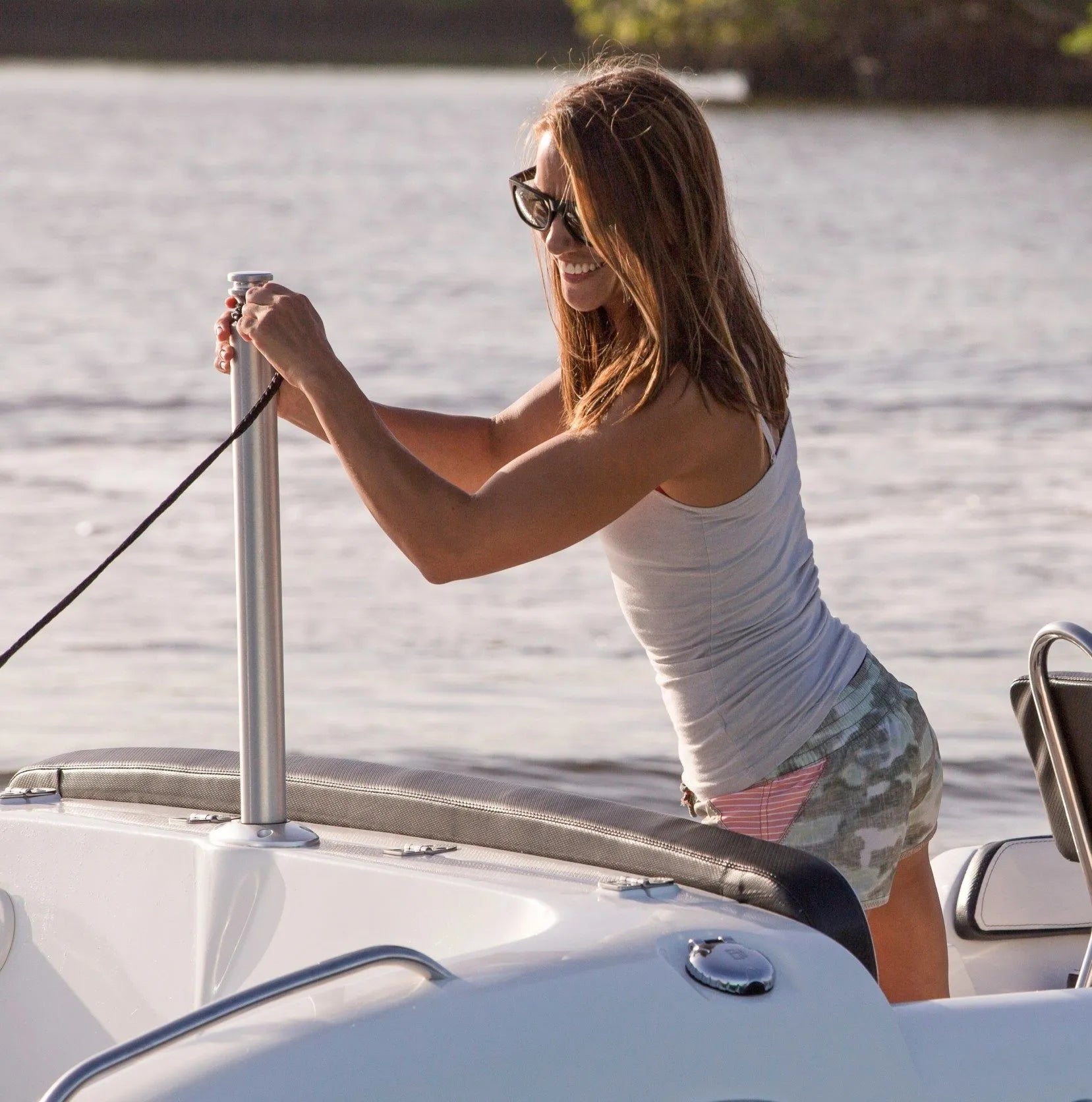

- Retractable Ski Pole
- Bow Area Deluxe Sun Bed
- Gray or Mocha EVA Floor
- *Sunbrella Boat Cover
* A boat cover is strongly recommended as it will protect your tube and prolong the lifespan of your boat. You can purchase your boat cover in the “Parts & Accessories” section of this page.
Walker Bay uses ORCA CSM® tube fabric. The CSM compound offers the best UV resistance and ageing properties for boats permanently exposed to sun, sea and weather.
ACCENT COLOUR OPTIONS
Military Gray
Carbon Black
Ocean Blue

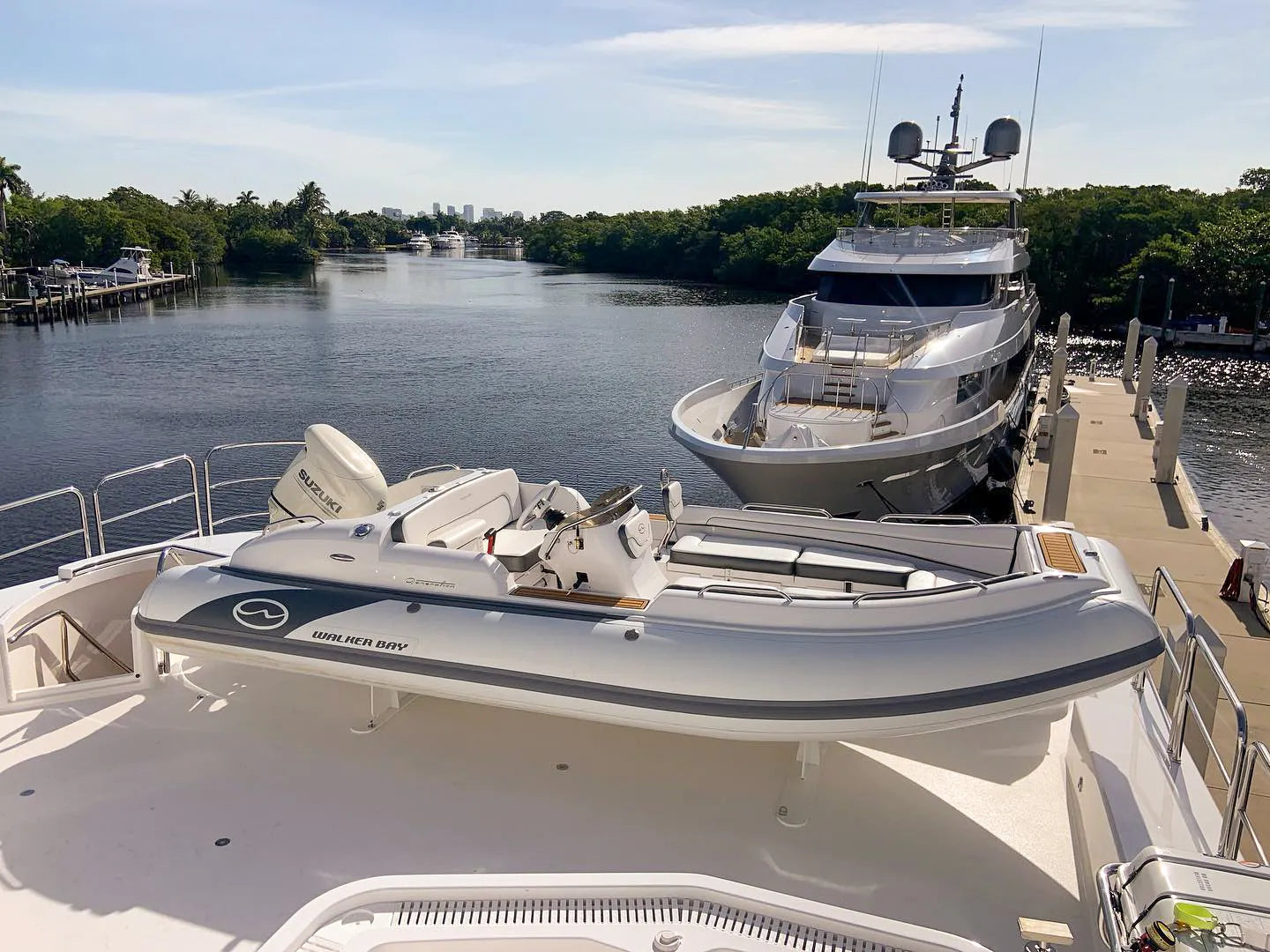

The Generation Family of Boats

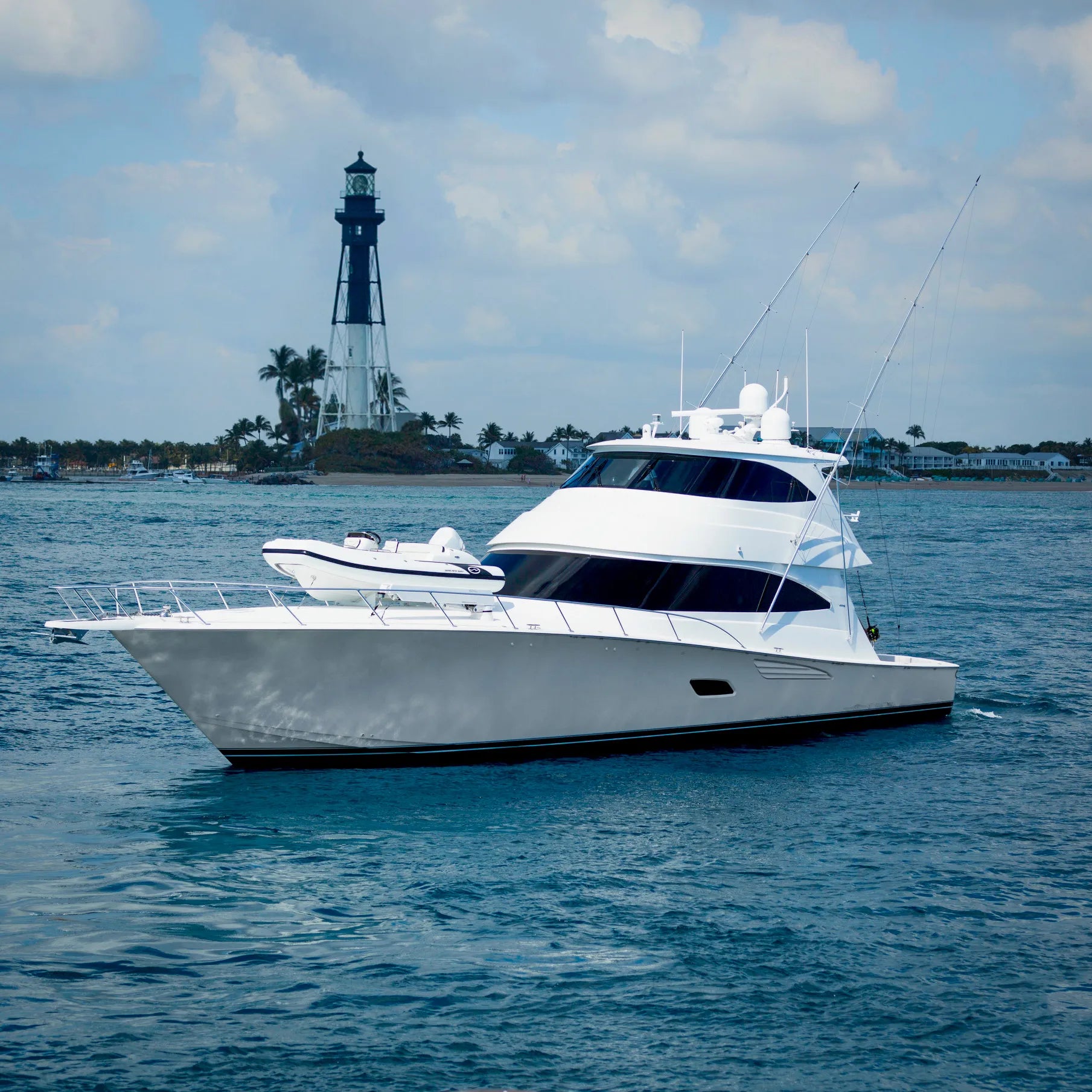

With elegant European styling and a sporty wide-body frame, the Walker Bay Generation luxury yacht tenders will exceed your expectations in both form and function. With detailed attention to hull design and hydrodynamics, the Generation DLX series outperforms its class in comfort and handling. The spacious interior of the open cockpit design provides ample space for people and gear.

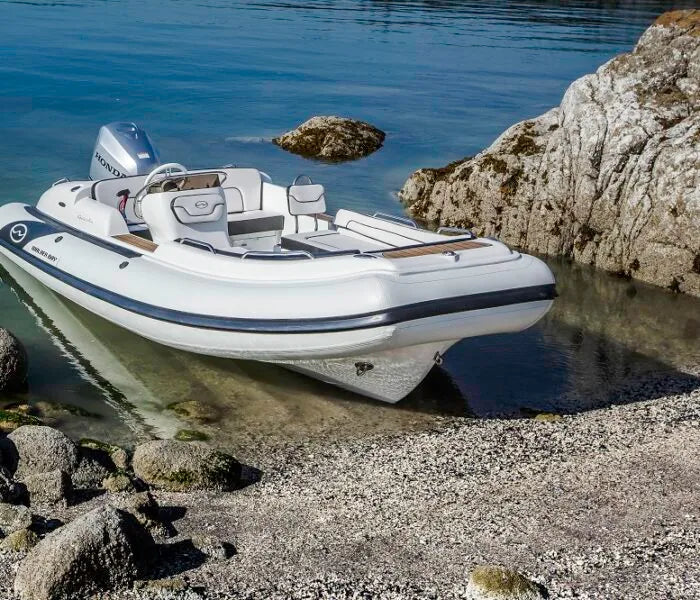

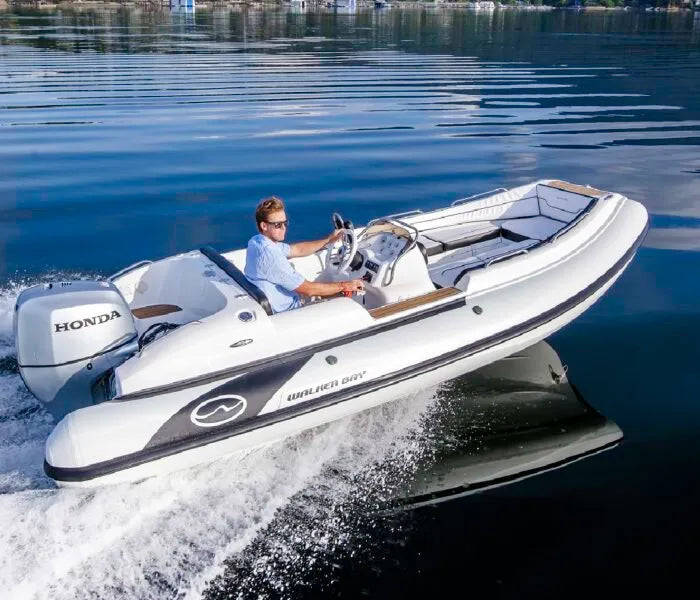

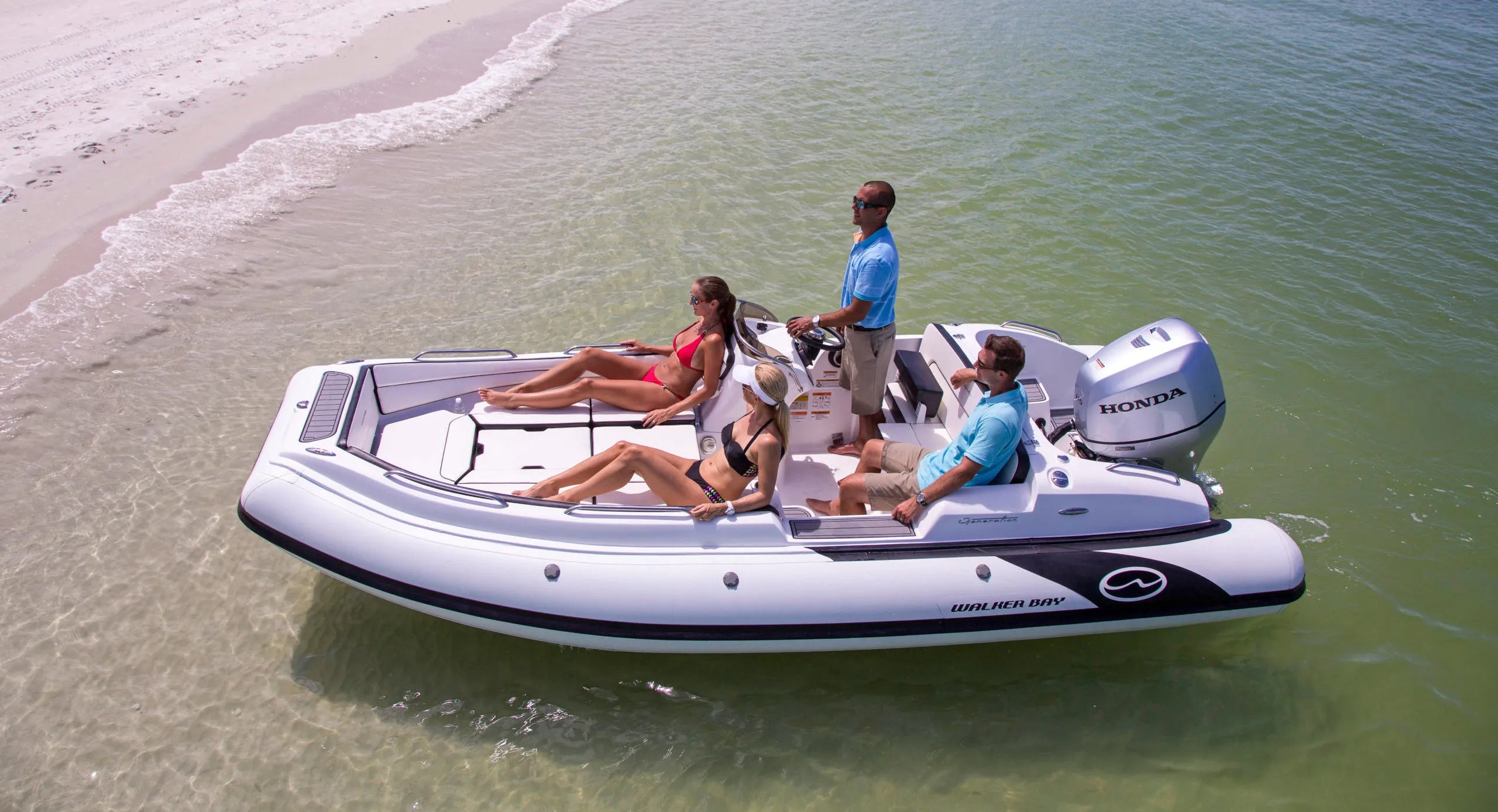

The Generation 525 DLX Luxury RIB.
The Generation 525 luxury RIB will exceed your expectations in both function and comfort. Our attention to hull design and engineering along with more standard features have resulted in a truly world class deluxe Rigid Inflatable Boat (RIB).
Most RIB manufacturers use basic plywood stringers to support the hull and top deck, Walker Bay incorporates a Polyurethane Composite Micro Stringer System in the floor which is lighter, stronger than wood and results in a smoother ride.
Where typical RIBs may have an air cavity between the hull and deck, Walker Bay bonds the hull and deck together using a unidirectional glass and a polyurethane stringer grid bonding system. This absorbs the impact from wave chop, makes the hull stronger and lighter and provides permanent positive flotation.
When it comes to quality control, we pay attention to every detail. Distortion and misalignment in a hull contributes to poor handling and stress cracks. Walker Bay creates a straighter and better riding boat by incorporating a proprietary “jig and alignment” process for the joining of the main parts so stress energy is distributed efficiently for a better handling and longer lasting boat.
