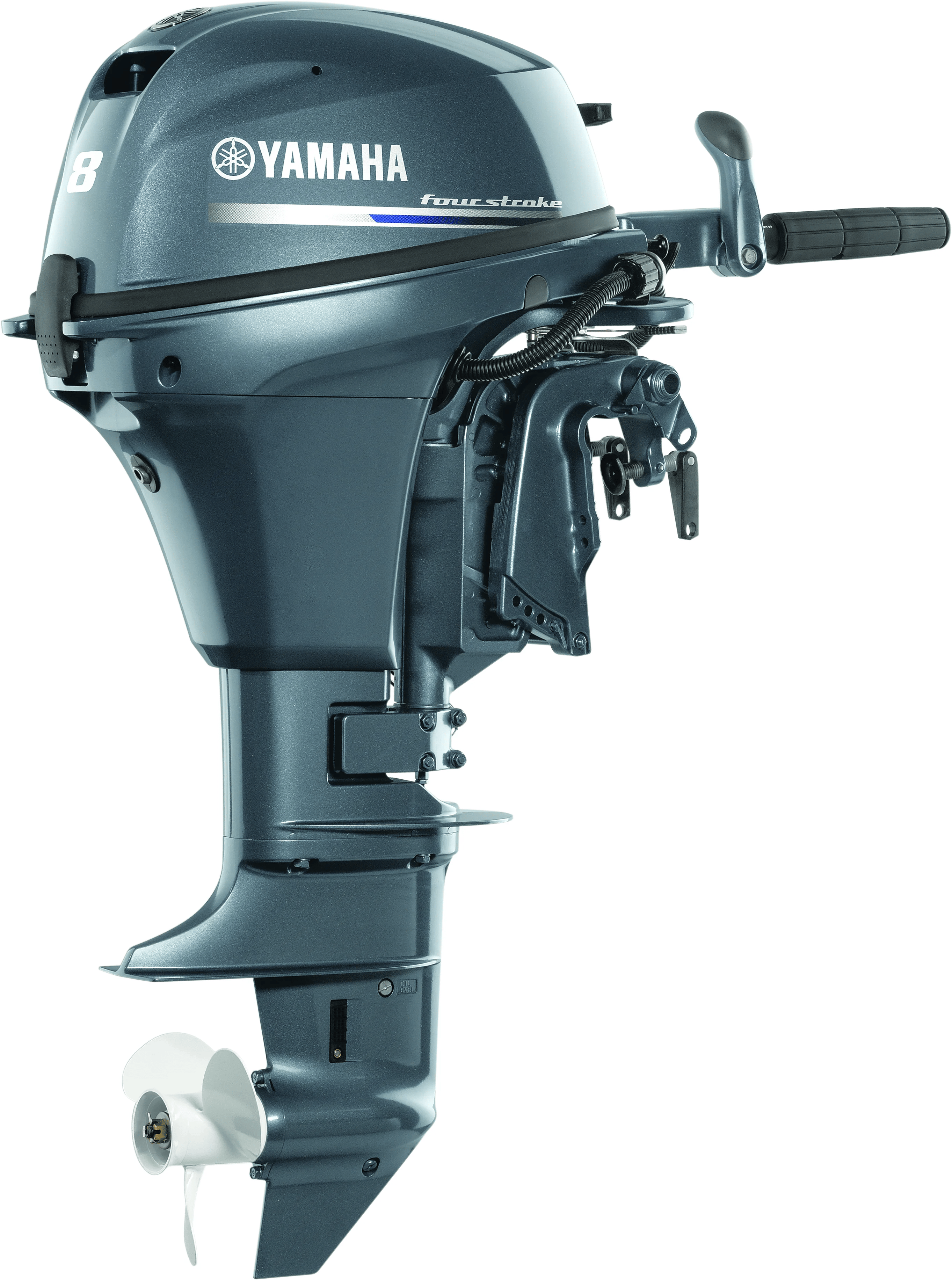

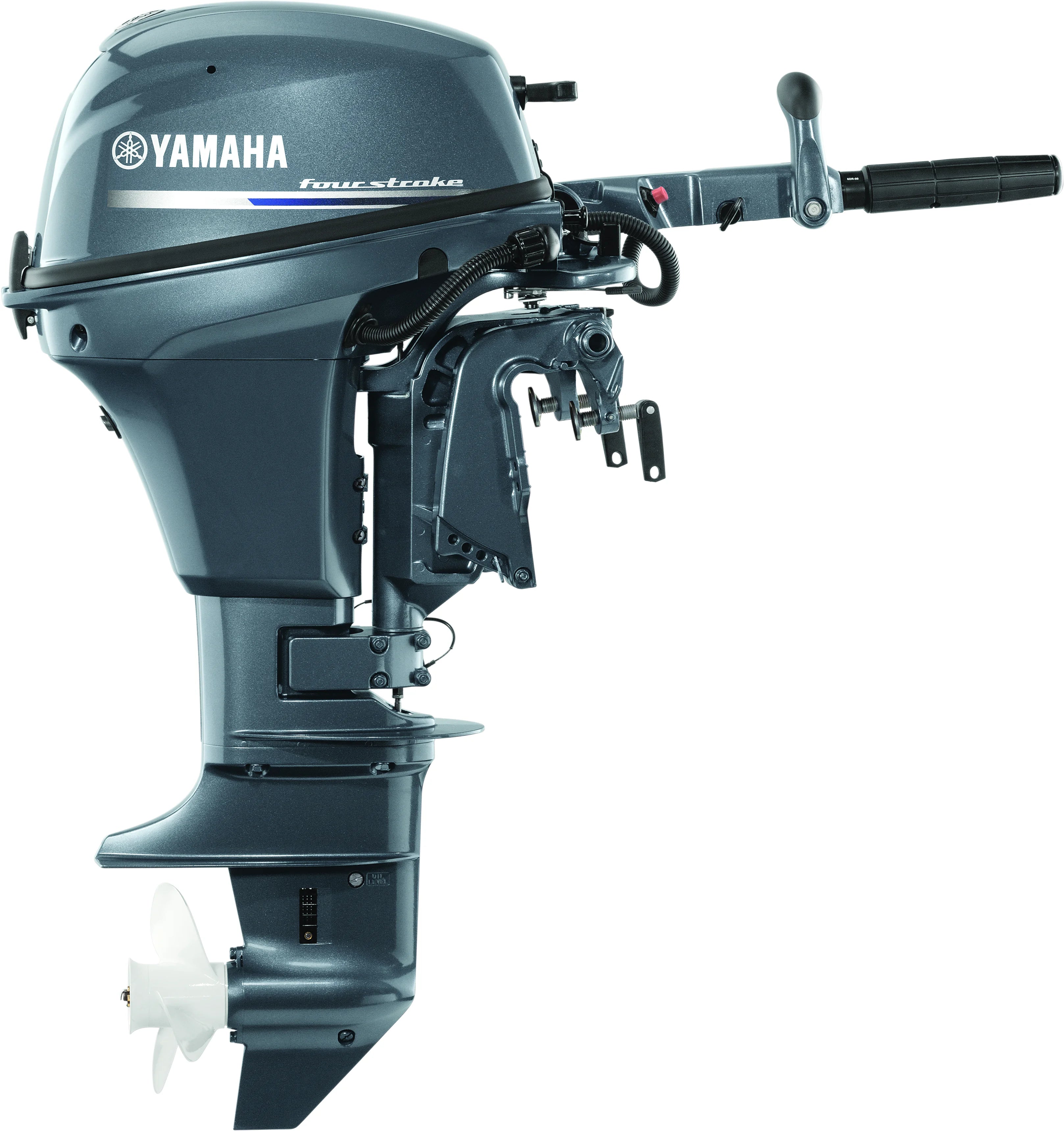

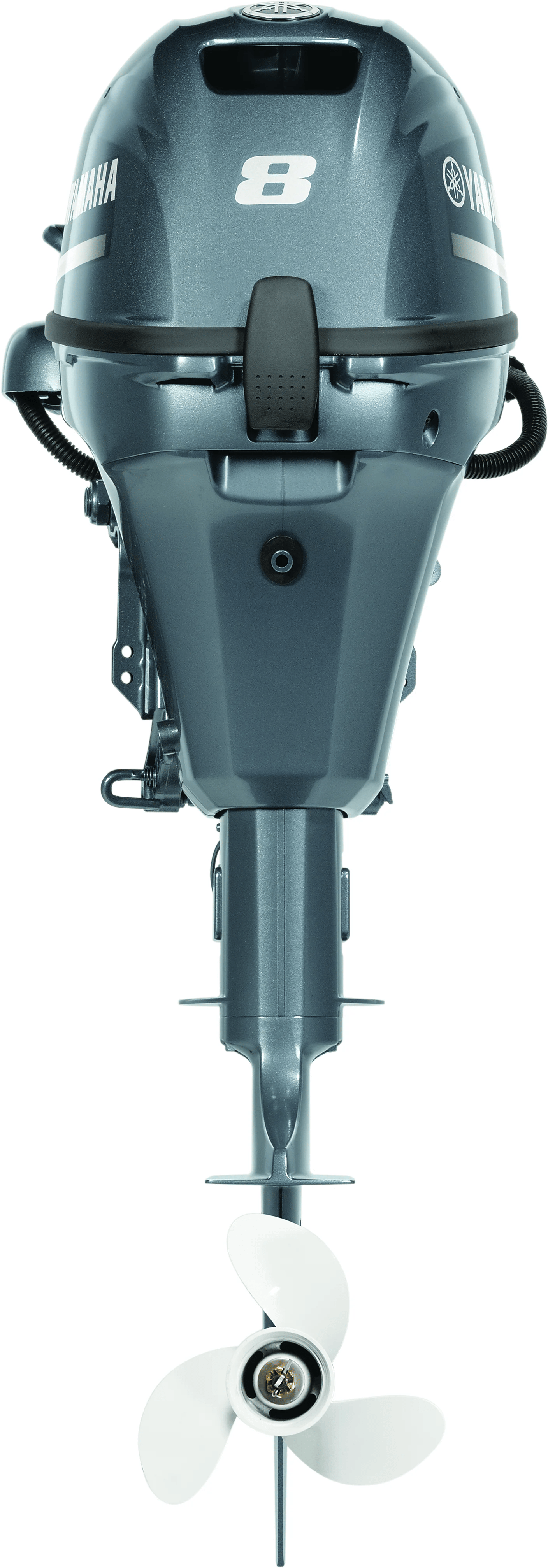

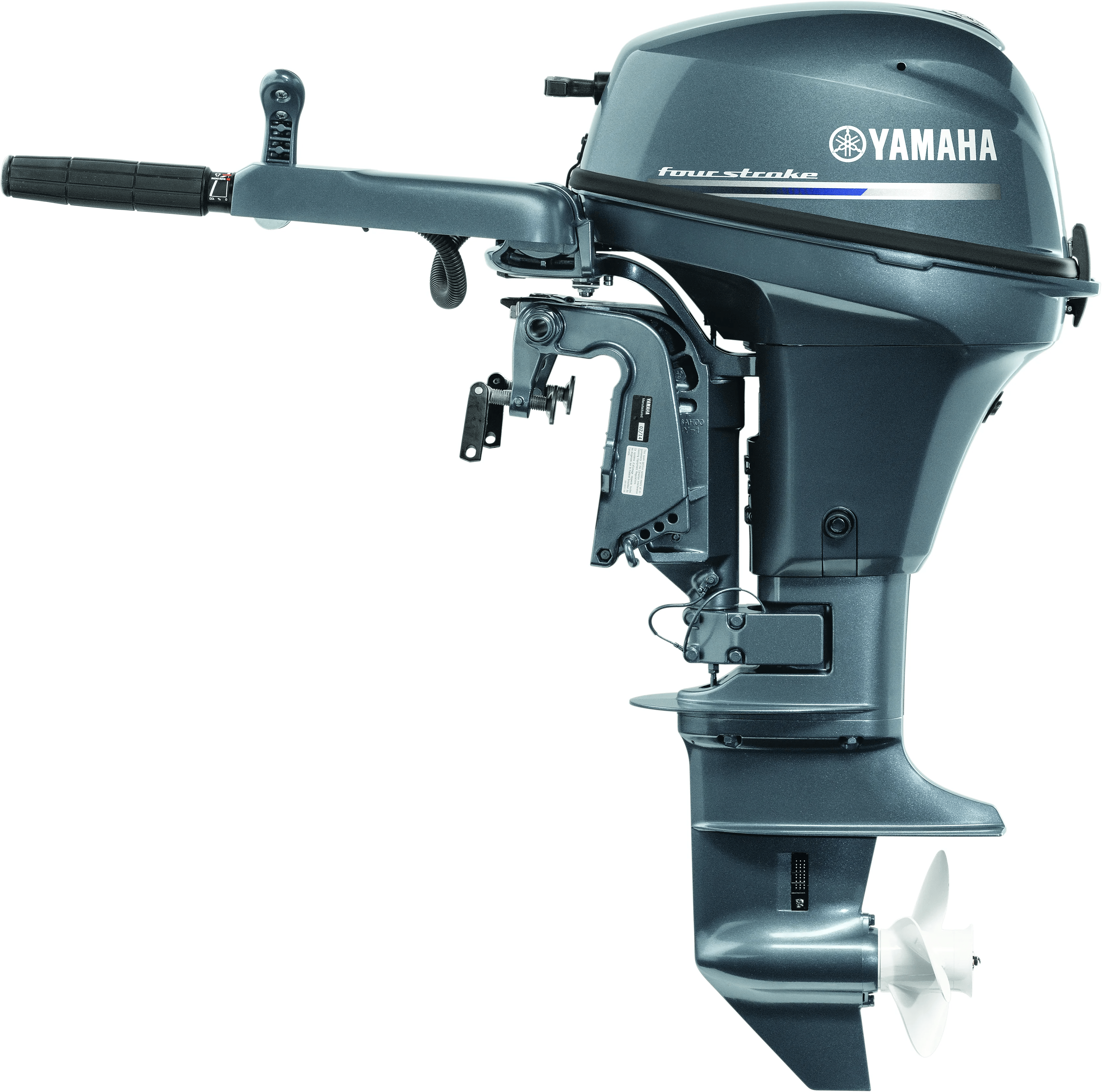

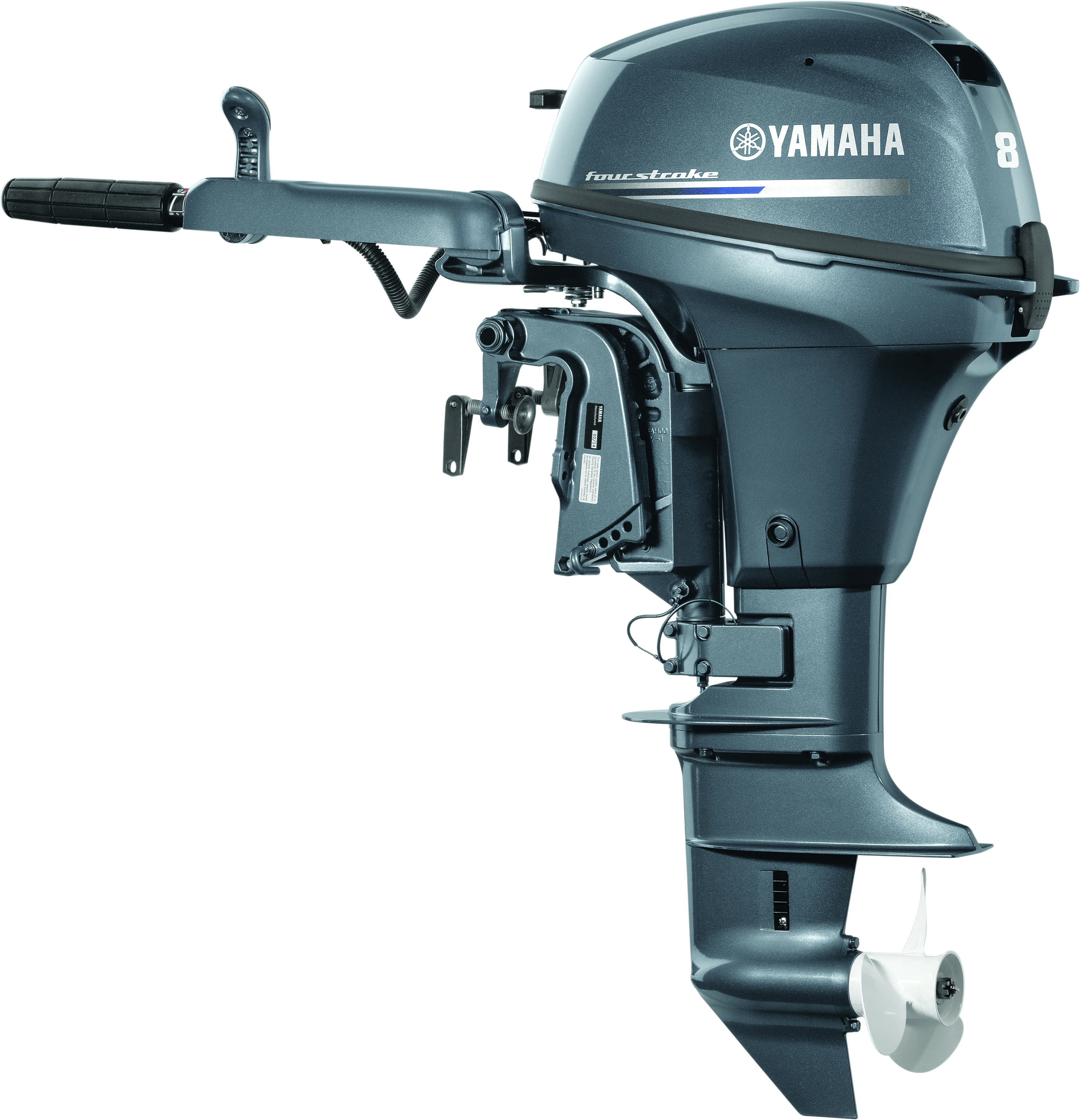

Yamaha F8 Portable Outboard Motor

• Weight*: 39 kg (87 lbs) - 40 kg (89 lbs)
• Full Throttle RPM Range: 5000 ~ 6000
• Fuel Induction System: Carb
• Recommended Engine Oil: Yamalube® 4M (See owner's manual)
• Engine Type: 2 cyl
• Displacement: 212cc
• Bore x Stroke: 56 x 43mm (2.20 x 1.70 in.)
• Prop Shaft Horsepower: 8hp at 5500 rpm
• Alternator Output at W.O.T.: 6 Amp
• Compression Ratio: 9.4:1
• Recommended Fuel: Octane 87
• Recommended Fuel Filtration: Yamaha 10-Micron Fuel/Water Separating Filter (external)
• C.A.R.B. Rating: 3-Star
• Exhaust: Through Propeller
• Intake: 4
• Ignition: CDI Microcomputer
• Spark Plug: BR6HS-10
• Starting System: Manual
• Lubrication: Wet Sump
• Engine Oil Capacity: 0.8L
• Recommended Cooling: Thermostatic Control
• Ethanol Blend Limit: 10% Maximum
• Gear Ratio: 2.08:1
• Gear Shift: Forward, Neutral, Reverse
• Shaft Length: 15" - 20"
• Degree of Tilt: 71°
• Degree of Trim: -4° through +16°
• Mounting Centers: N/A
• Steering
• Steering Angle (maximum): 43° from center, either direction
• Warranty: Limited 3-Year Pleasure, 3-Year Government, 1-Year Commercial


*Weight refers to shortest shaft length, and is measured without motor oil, gearcase oil and propeller (except models 25 hp and under, which include a standard propeller). All Jet model weights include the jet pump assembly (weight estimated).

The 212-cc 8-hp portable is available with a shorter tiller handle for comfort. Explore compatible components below and contact your dealer for rigging expertise.

Compatible Controls:
Multi-Function Tiller Handle

Compatible Gauges:
Command Link and Analog Gauges

Power and Performance:
Compact, Lightweight Design
Responsive Acceleration
Streamlined Intake

Convenience and Control:
Smart Evolution
Portability And Storage
Propeller Protection
