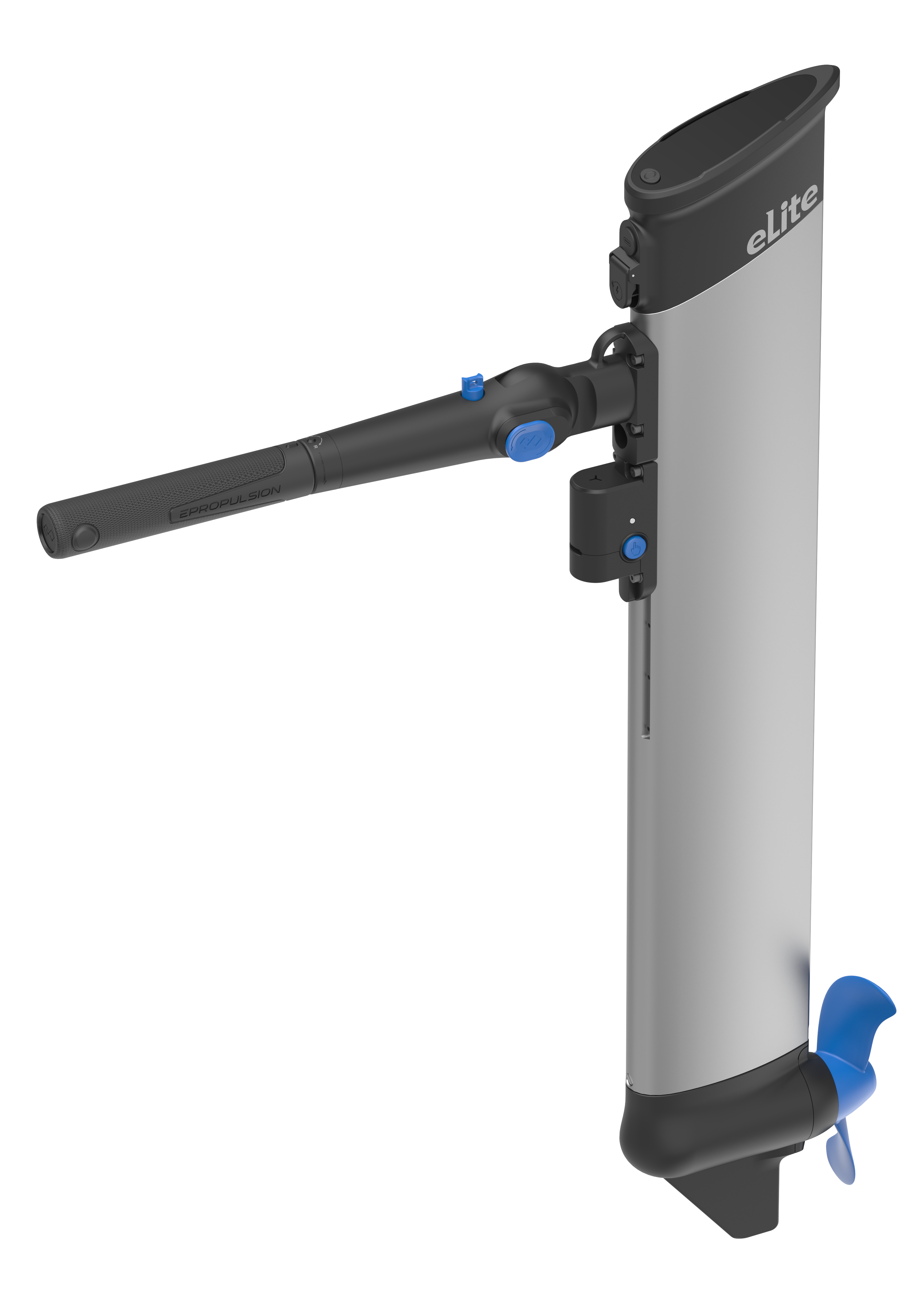

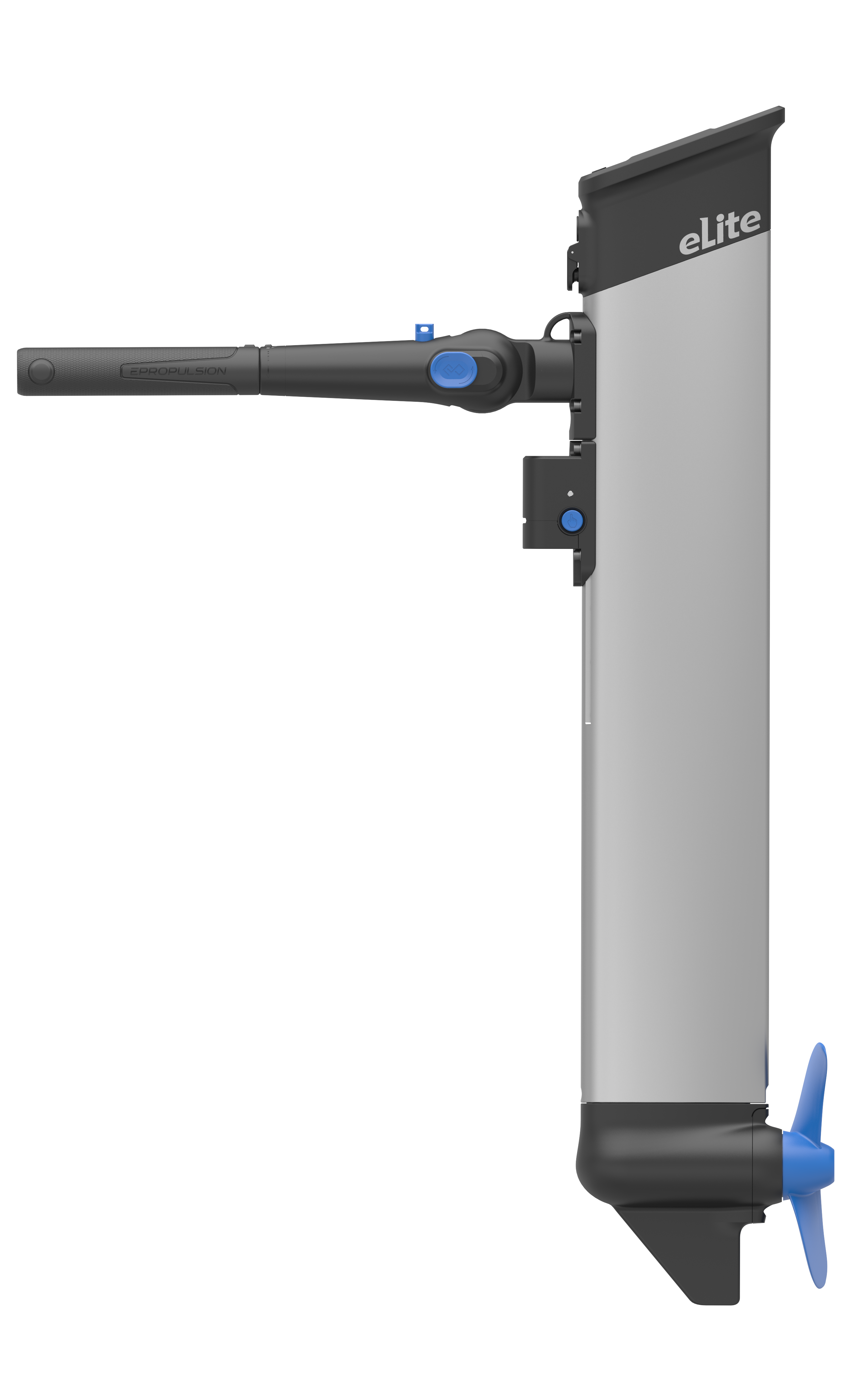

ePropulsion E-Lite
Lightweight, Easy-to-Use
FEATURES

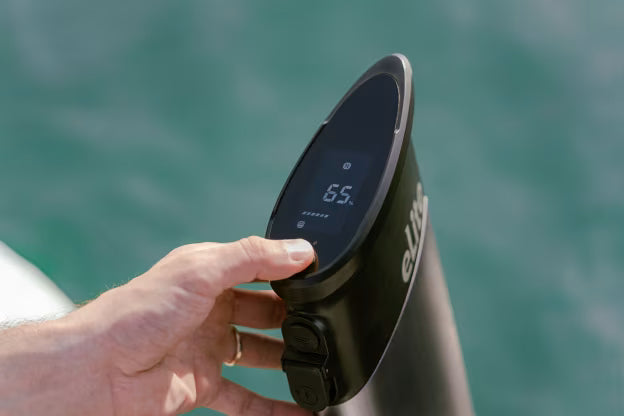

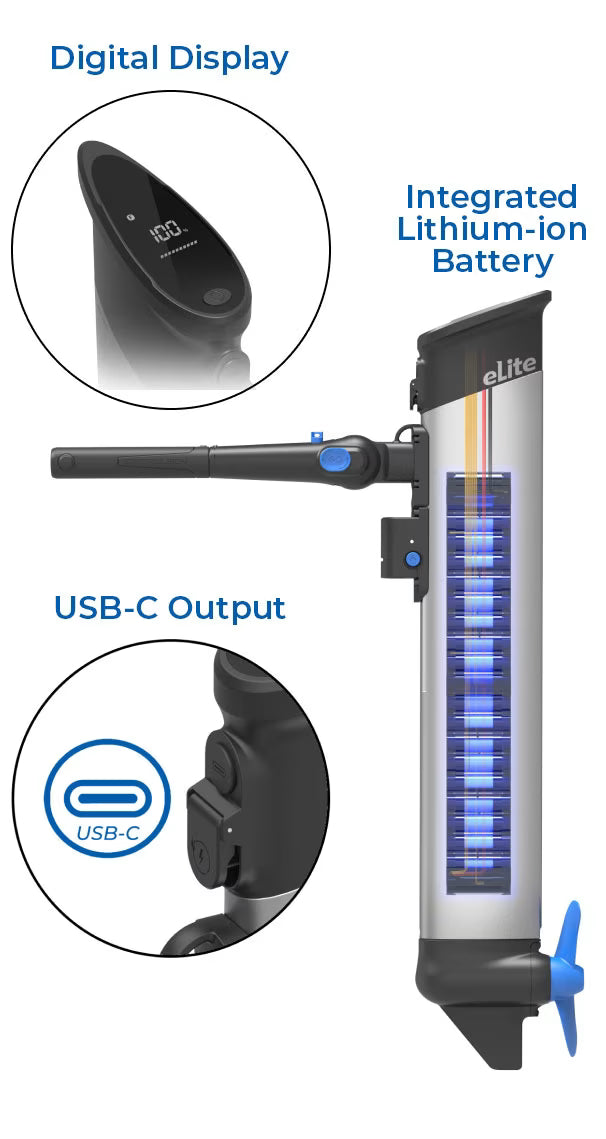

- Digital display with single-button control
- Integrated lithium-ion battery
- USB-C output for charging external devices

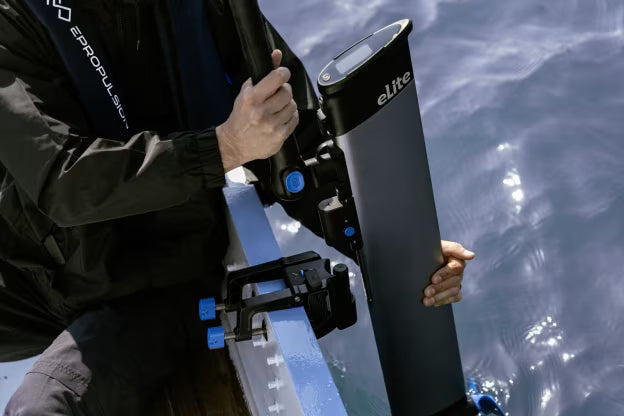

- Easy Setup: One-click connector for quick removal and installation

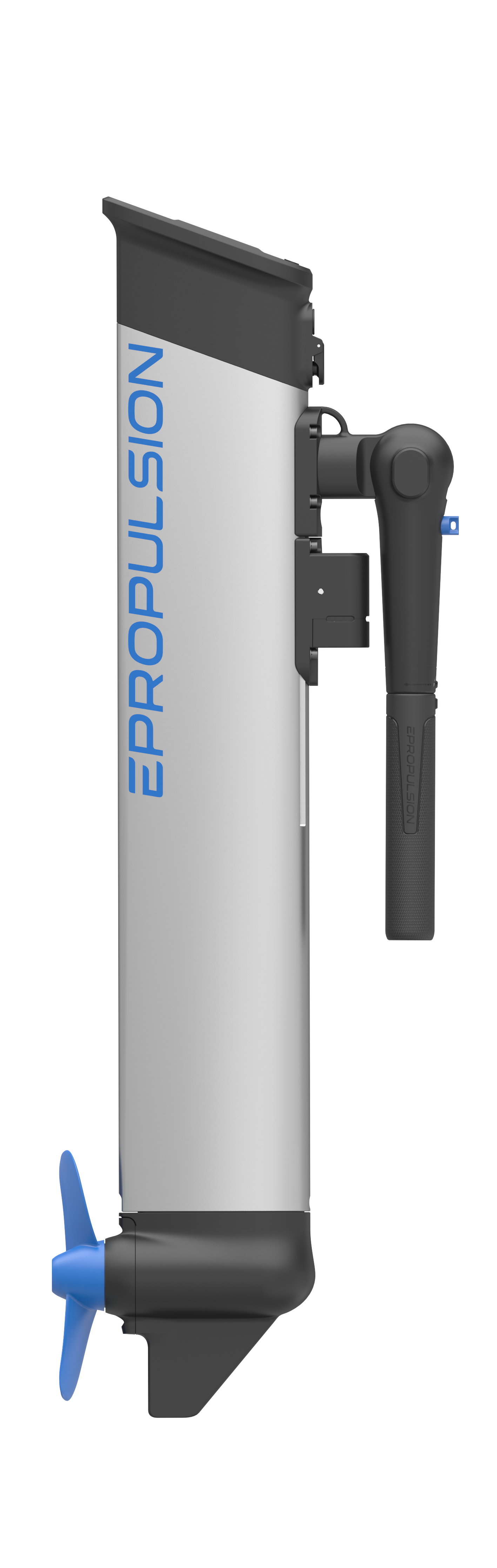

- Easy to Carry: Balanced weight when the tiller is folded
- Travel bag included for convenient transport and storage
- Emergency magnetic kill switch
- Twist-grip handle controls for forward, reverse, and power output

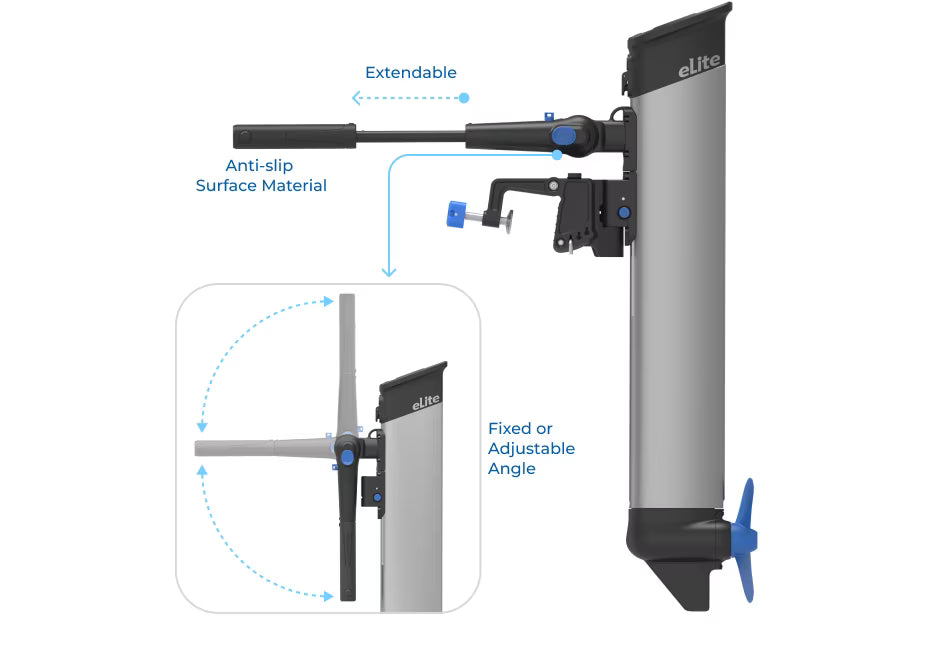

- Advanced Tiller: Adjustable height and length, anti-slip surface, extendable, fixed or adjustable angle
- Clamp Bracket: Quick motor release, partial tilt to 36° for shallow water, full tilt to 75° for beach landings and storage
- Adjustable shaft length
- Aerospace-grade aluminum alloy casing
- High-efficiency direct-drive motor
- Advanced propeller design
SPECIFICATIONS
- Nominal Power: 500 W
- Maximum Power (in Sport mode): 750 W
- Battery: Integrated 378 Wh 25.2V Lithium-ion
- Charger: 220V AC charger included, 12V charger optional
- Cooling System: Natural water cooling
- Rated RPM:1450 to 1800
- Operating Temperature: -5 to 55 °C
- Storage Temperature:-20 to 45 °C
- Trim and Tilt: 8° / 17° / 26°
- Tilt Angle: 75°
- Shallow Water Mode Tilt Angle: 36°
- Steering Angle: ±70°
Standard-
- Dimensions (L x W x H): 297 x 75 x 890 mm (11.7 x 3 x 35”)
- Motor Weight (excluding bracket): 6.7 kg / 14.7 lbs
- Motor Weight (including bracket): 7.9 kg / 17.4 lbs
- Adjustable Shaft Length: 401 / 362.5 / 322 / 282.5 mm (15.8 / 14.27 / 12.7 / 11.1”)
Longshaft-
- Dimensions (L x W x H): 297 x 75 x 1040 mm (11.7 x 3 x 41”)
- Motor Weight (excluding bracket): 7.3 kg / 16.1 lbs
- Motor Weight (including bracket): 8.5 kg / 18.7 lbs
- Adjustable Shaft Length: 551 / 512.5 / 472 / 432.5 mm (21.7 / 20.2 / 18.6 / 17”)
What's in the Box
- eLite
- eLite Charger
- eLite Clamp Bracket Assembly V2
- eLite Kill Switch
- eLite Outboard Bag
- eLite Propeller
- eLite Trim Pin
Logo list

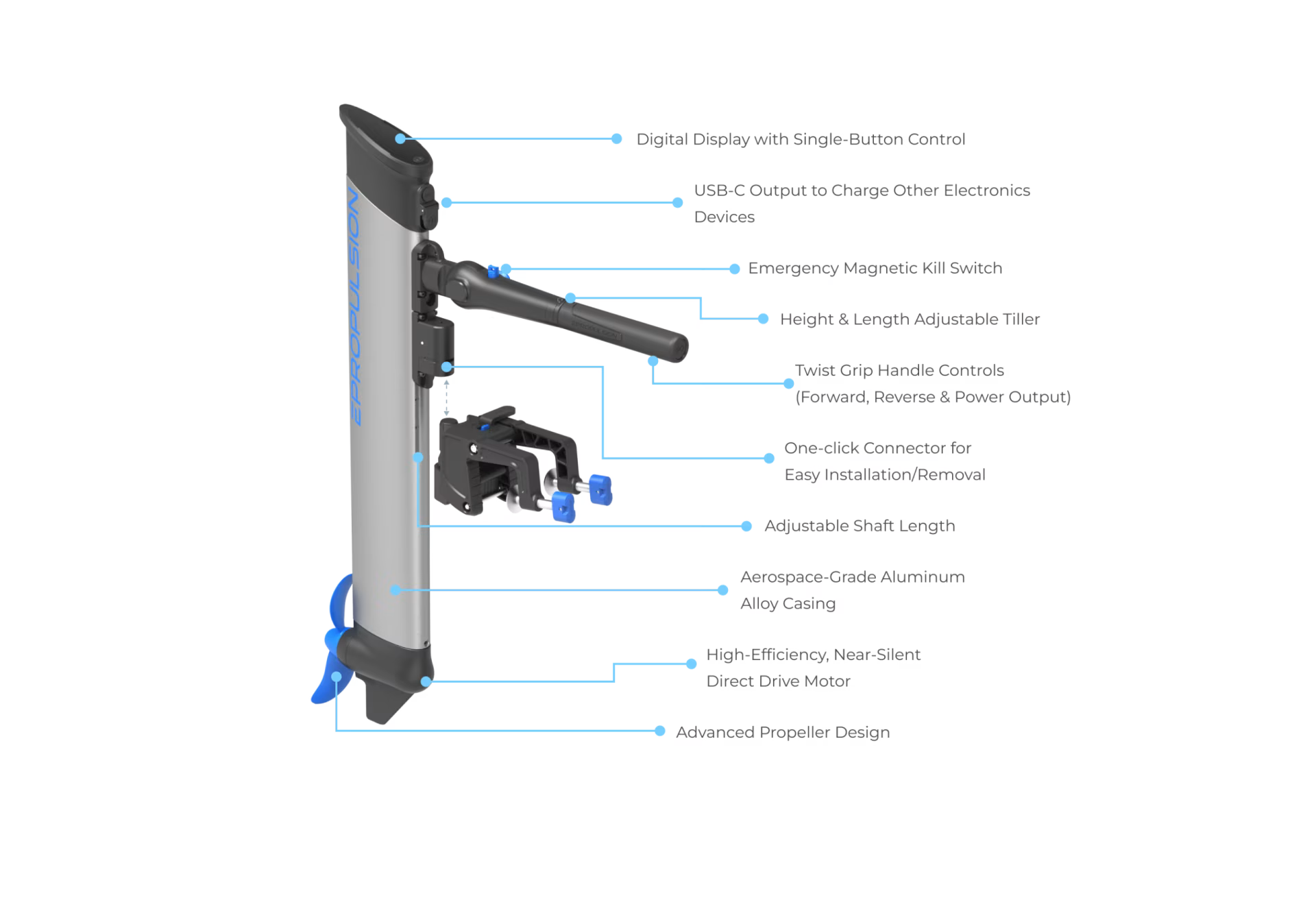

Compact, Integrated Design for Maximum Efficiency
Performance and Range*
| Power (W) | Speed (mph/kph) | Runtime (hh:mm) | Range (mile/km) |
|---|---|---|---|
| Half Power 250W | 3.7 / 6.0 | 01:30 | 5.6 / 9.0 |
| Full Power 500W | 4.7 / 7.5 | 00:45 | 3.5 / 5.6 |
| Sport Mode 750W | 5.2 / 8.3 | ** | - |
* The data shown is based on testing with a single operator in an 8 ft aluminium dinghy (total weight 117 kg) under calm water conditions. Actual range and operating time may vary depending on vessel type, load, wind, waves, and other environmental factors.
** Sport Mode can be used for 1 minute at a time, subject to battery SOC and temperature.
Our Most Compact and Lightweight Outboard
Lightweight
6.7 kg / 14.7 lbs
Compact
297 × 75 × 890 mm
Adjustable Length
282.5mm to 401mm
Lightweight
7.3 kg / 16.1 lbs
Compact
297 × 75 × 1040 mm
Adjustable Length
432.5mm to 551mm

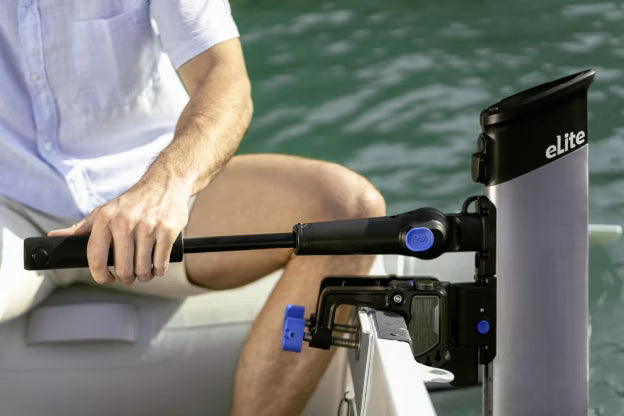

Advanced Tiller
Clamp Bracket Functionality

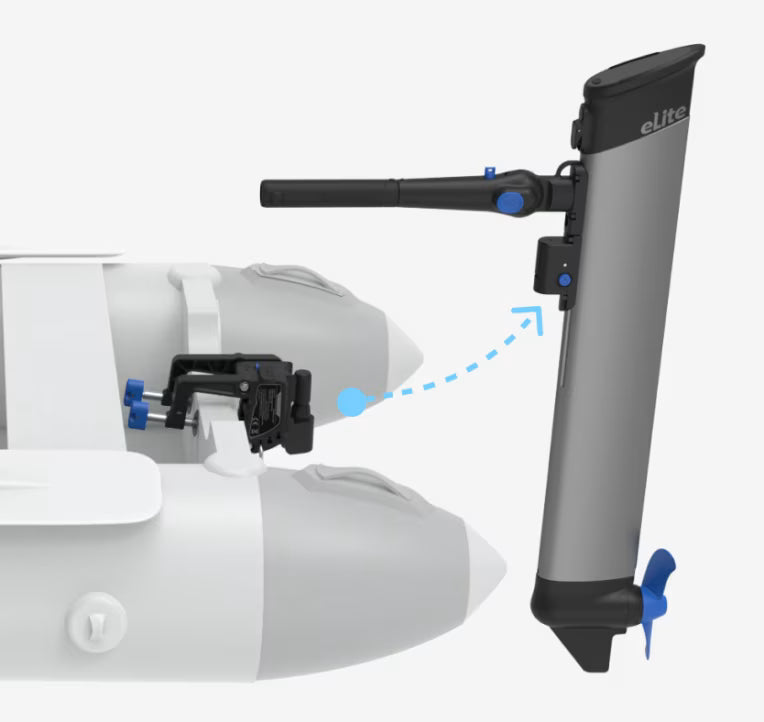

Quick release of motor

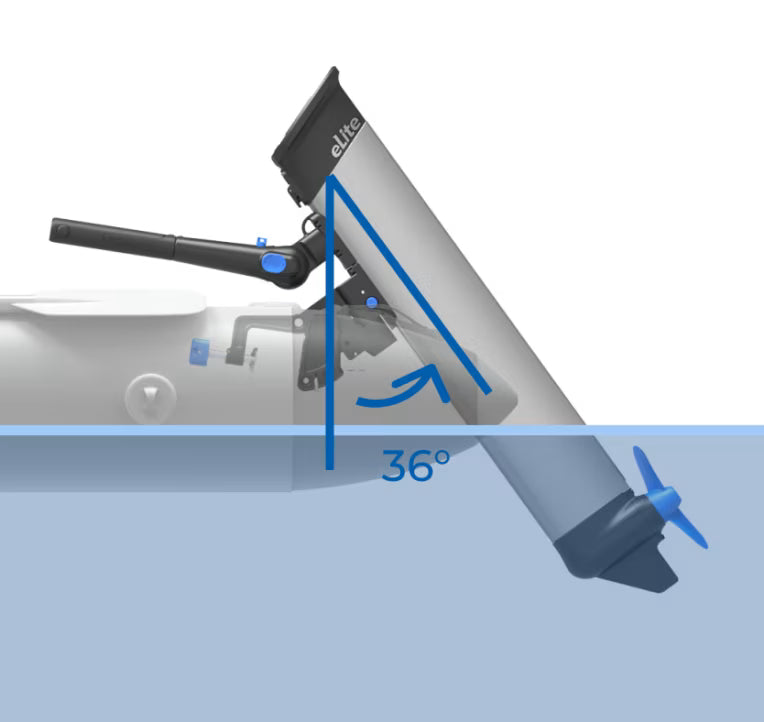

Partial Tilt to 36° for shallow water

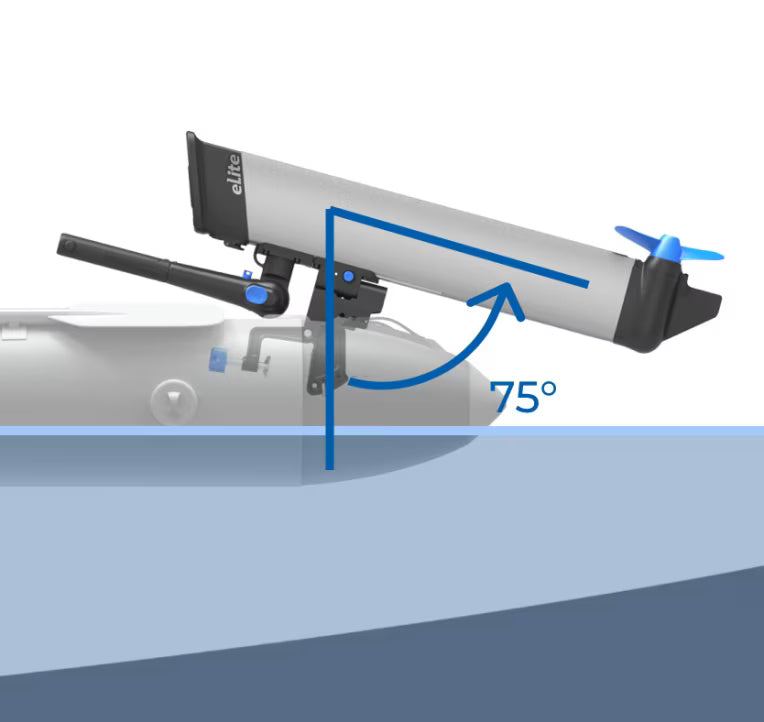

Full Tilt at 75° for beach landings and storage
Features
Shaft Length Recommendation
| eLite Version | Transom Height |
|---|---|
| Standard | 28–40 cm / 11–15.7 inches |
| Longshaft | 43–55 cm / 16.9–21.7 inches |
Related Materials: How Chaps Extend the Life of Your Highfield Classic Tender
Frequently Asked Questions
What type of boats is the ePropulsion eLite suitable for?
The eLite is designed for small, lightweight vessels such as dinghies, Highfield tenders, kayaks, canoes, and small inflatables. Its compact size and 500-watt output make it ideal for short trips, tender runs, and quiet cruising in protected waters.
How long does the eLite battery last on a single charge?
The integrated 378 Wh lithium-ion battery delivers up to 1.5 hours of runtime at half power and roughly 45 minutes at full power. Actual runtime depends on load, water conditions, temperature, and operating mode. A Sport Mode boost up to 750 W is also available for short bursts.
Is the eLite easy to set up and transport?
Yes. The eLite features a one-click mounting bracket for quick installation and removal, a folding tiller for balanced carrying, and a travel bag included for hassle-free storage and transport. Its lightweight build makes handling simple on docks, beaches, and tenders.
Is the eLite safe for shallow water or rocky areas?
The eLite includes a shallow-water mode with a 36° tilt angle and an automatic kick-up function to help protect the motor if it bumps into the bottom. With ±70° steering and multiple trim positions, it stays adaptable in varying water depths.
