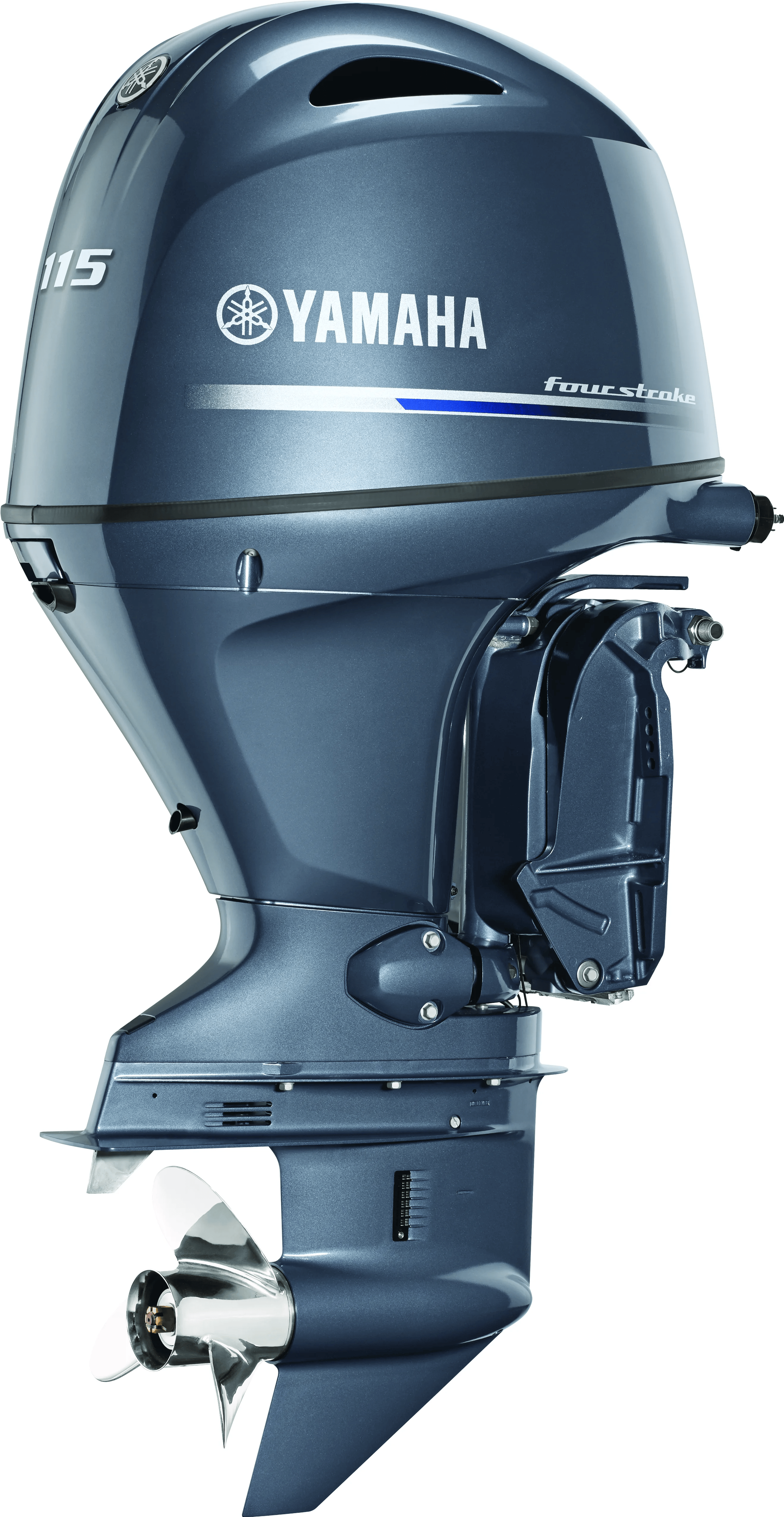

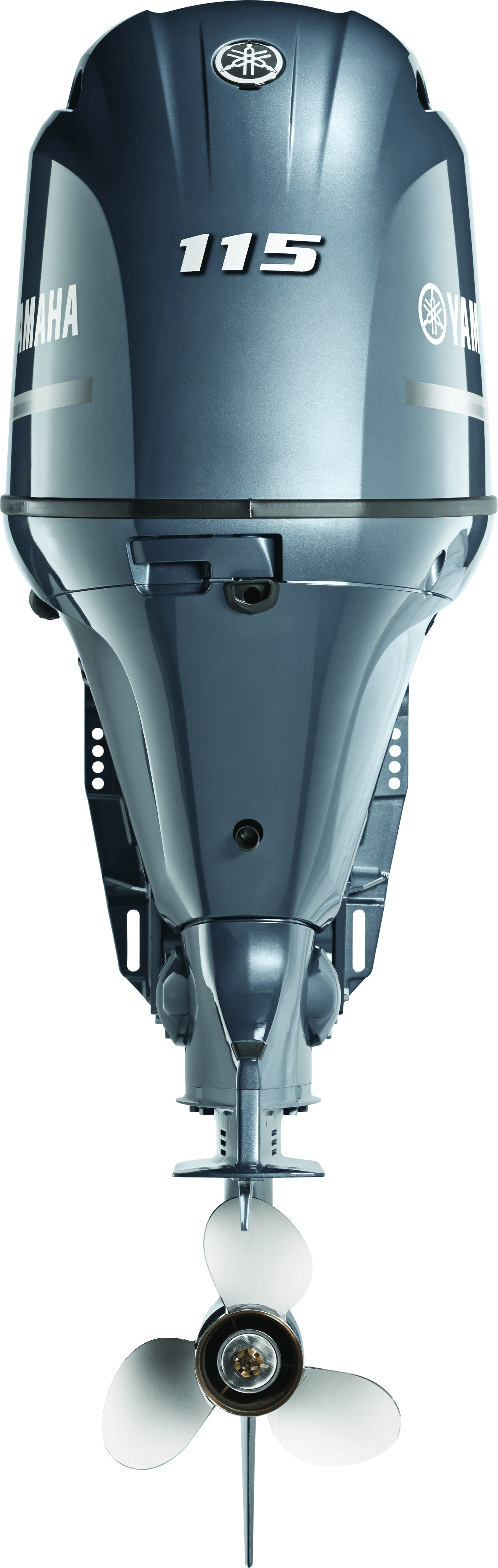

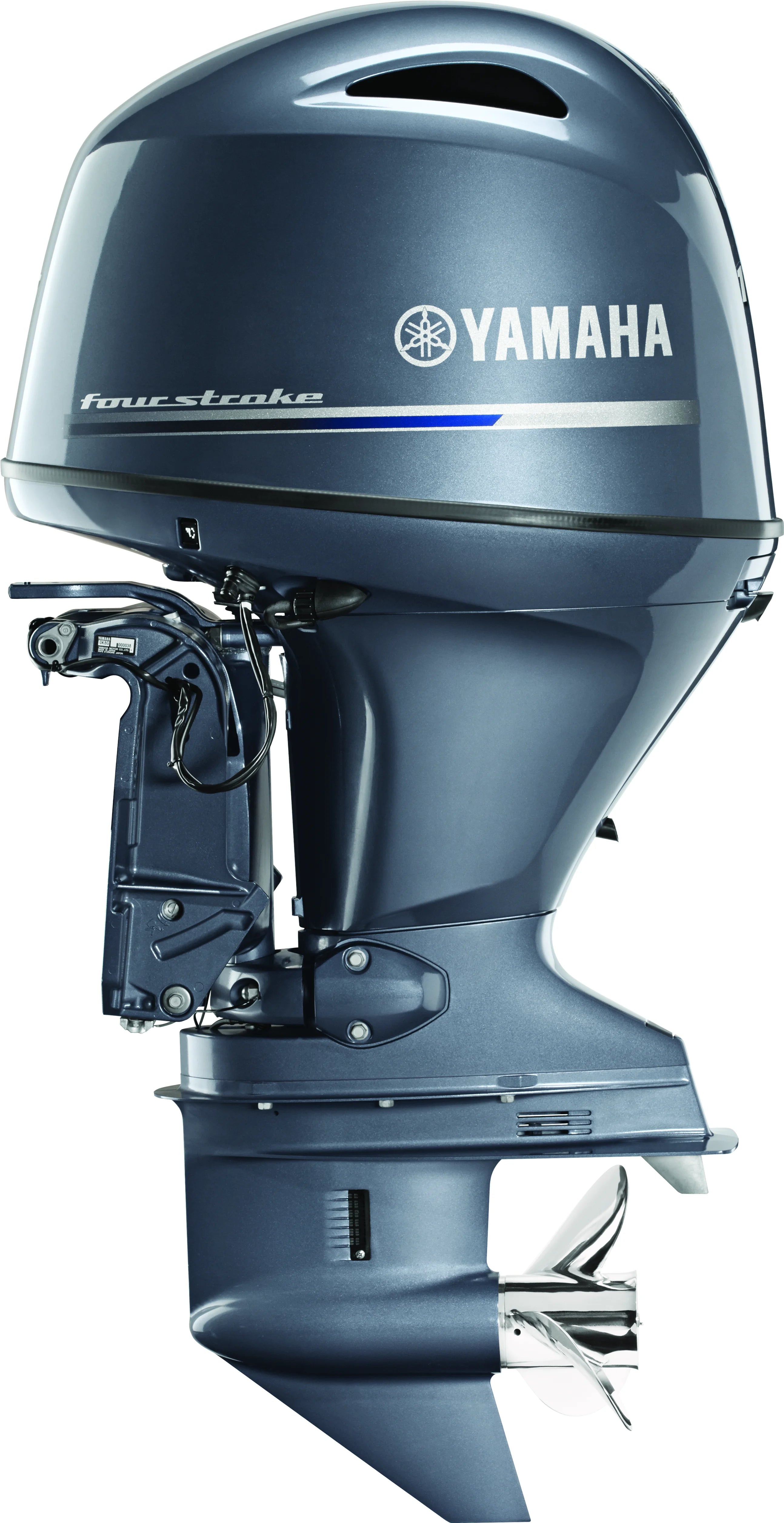

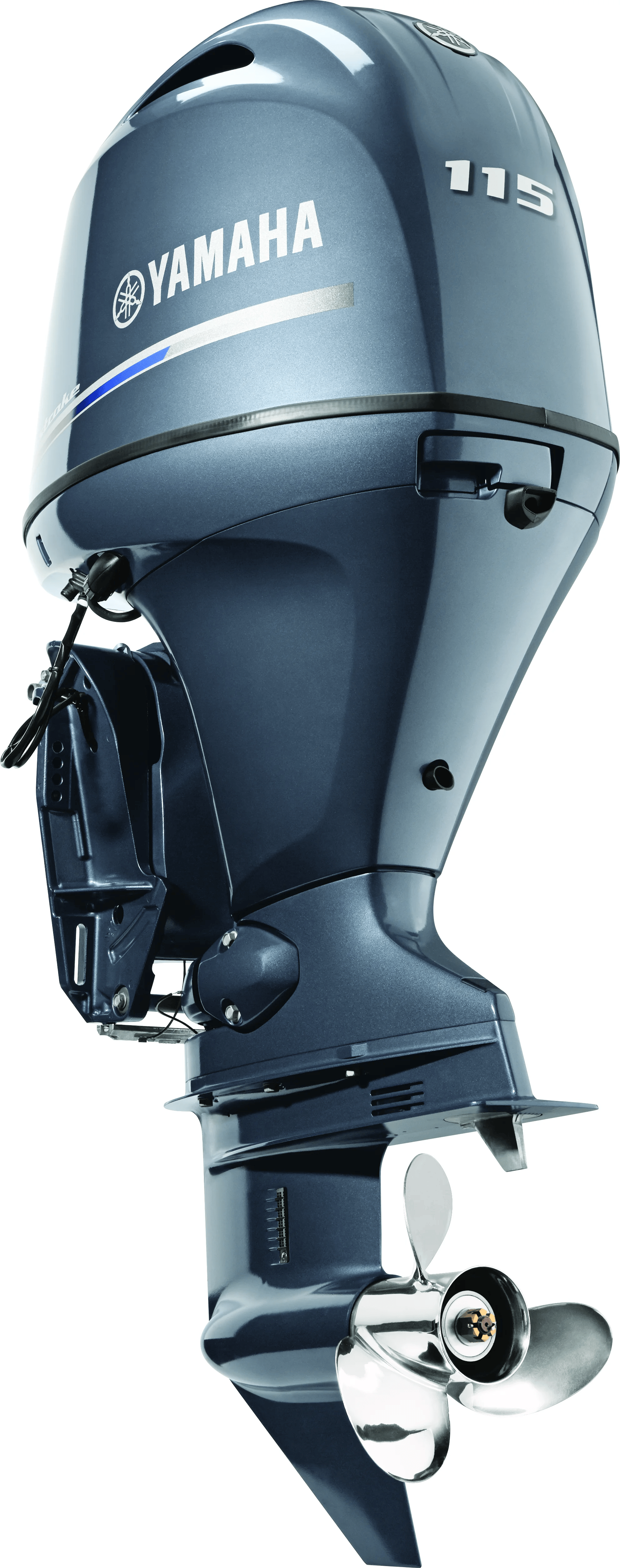

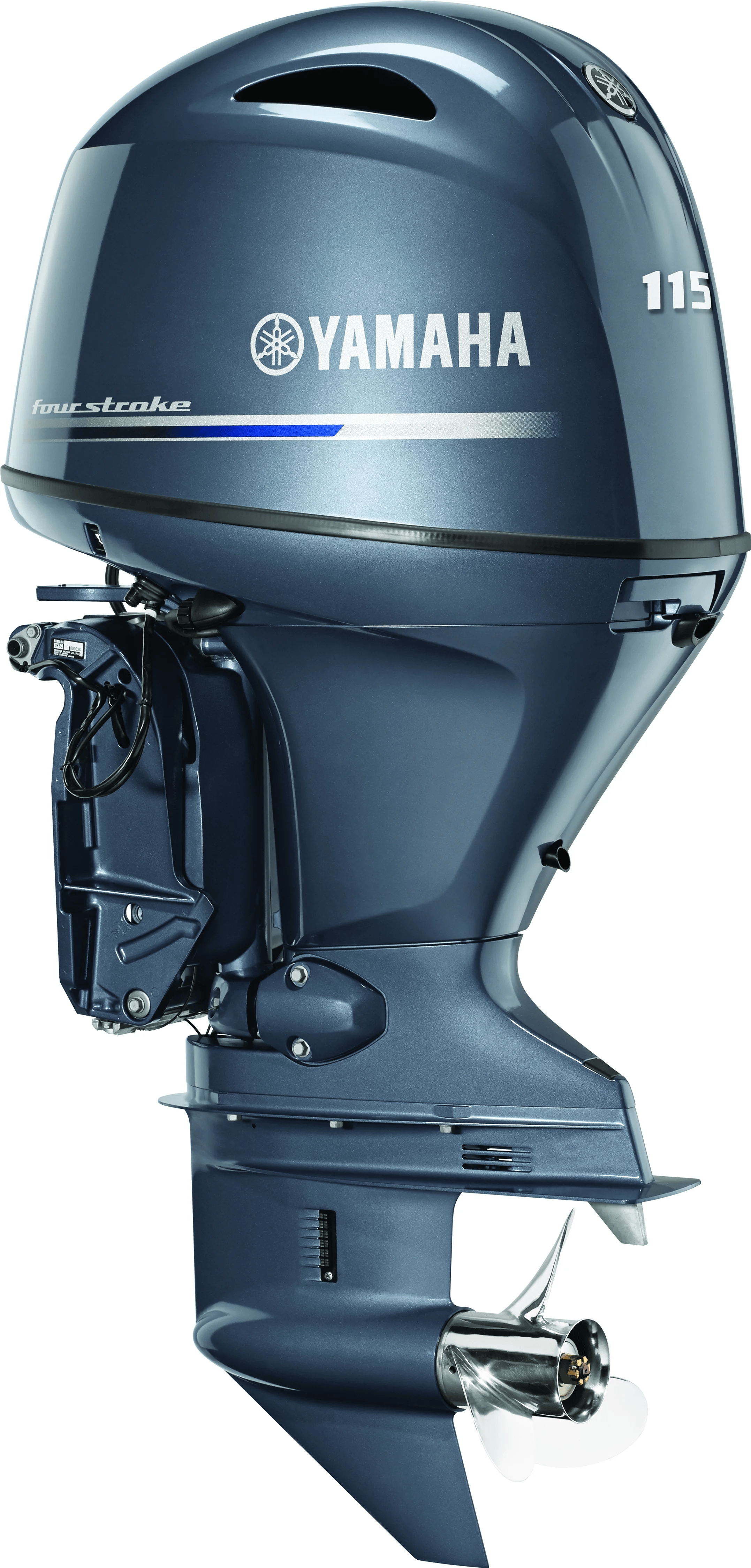

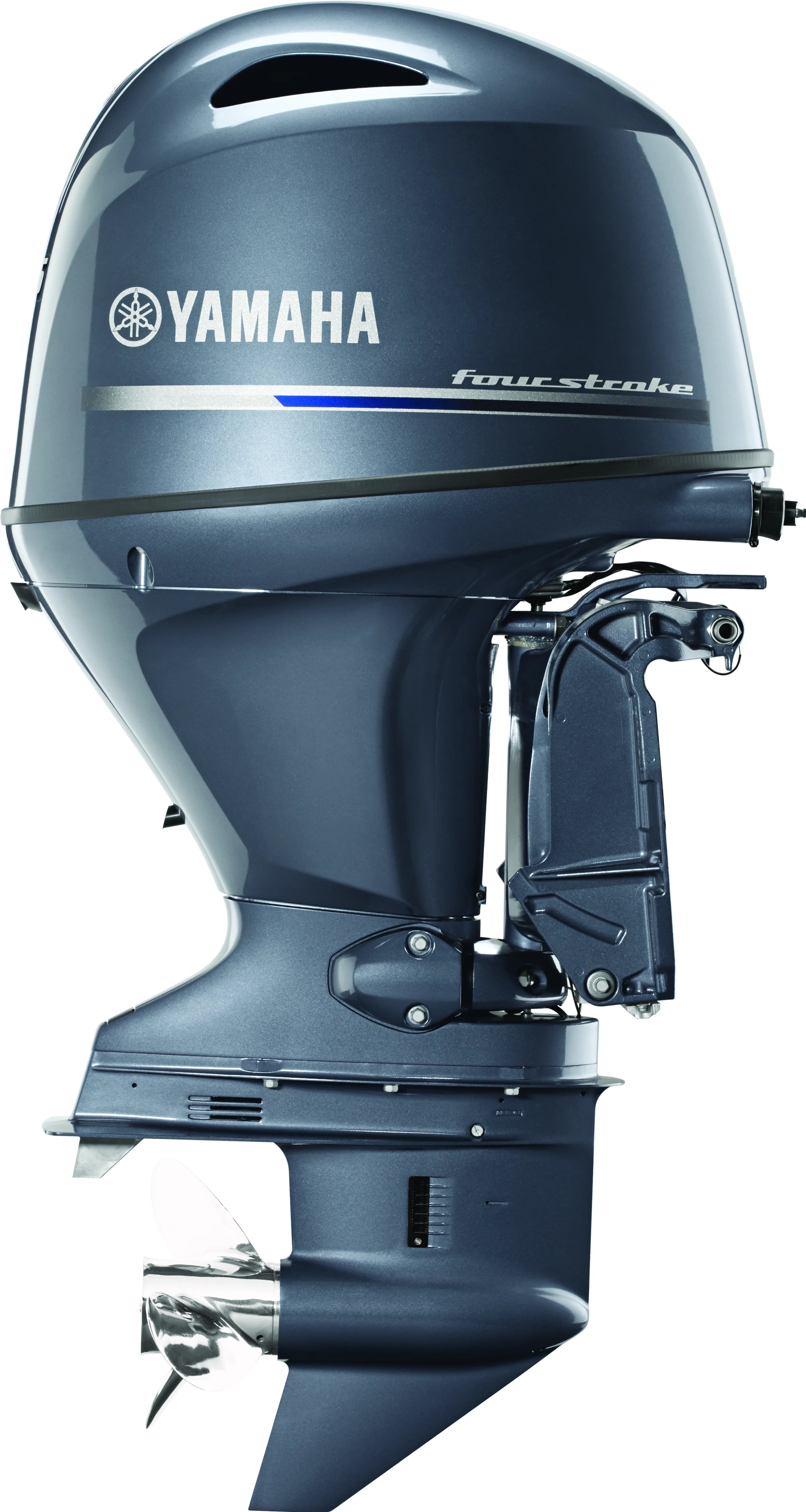

F115
Our 1.8-liter Midrange F115 features a double overhead camshaft with four valves per cylinder. This increases volumetric efficiency and gives the F115 a competitive power to weight.
- Only 377 pounds
- Available in 20” or 25” shafts
- Powerful 35-amp alternator
- Optional Variable Trolling RPM via the Command Link® tachometer
SPECIFICATIONS
- Weight *: 171 kg (377 lbs) - 175 kg (386 lbs)
- Full Throttle RPM Range: 5300 ~ 6300
- Fuel Induction System: EFI
- Recommended Engine Oil: Yamalube® 4M / (See owner's manual)
- Engine Type: Inline 4
- Displacement: 1.8L
- Bore x Stroke: 81 x 88.9mm |3.19 x 3.5in
- Prop Shaft Horsepower: 115hp at 5500 rpm
- Alternator Output at W.O.T.: 35 Amp
- Compression Ratio: 10.0:1
- Recommended Fuel: Octane 87
- Recommended Fuel Filtration: Yamaha 10-Micron Fuel / Water Separating Filter (external)
- C.A.R.B. Rating: 3-Star
- Exhaust: Through Propeller
- Intake: 16
- Ignition: TCI Microcomputer
- Spark Plug: LKR6E
- Starting System: Electric
- Lubrication: Wet Sump
- Engine Oil Capacity: 3.2/3.0L
- Recommended Cooling: Thermostatic Control
- Ethanol Blend Limit: 10% Maximum
- Gear Ratio: 2.15:1
- Gear Shift: Forward, Neutral, Reverse
- Shaft Length: 20" - 25"
- Degree of Tilt: 70°
- Degree of Trim: -4° through +16°
- Mounting Centers: 26"
- Steering:
- Steering Angle (maximum): 35° from center, either direction
- Warranty: Limited 3 Year Limited Pleasure Boat - 1 Year Limited Commercial
*Weight refers to shortest shaft length, and is measured without motor oil, gearcase oil and propeller (except models 25 hp and under, which include a standard propeller). All Jet model weights include the jet pump assembly (weight estimated).
COMPATIBILITY
The 1.8-liter Midrange F115 is compatible with tiller and mechanical controls and a range of gauges and props to suit your preference for performance, control and the display of data. Explore compatible components below and contact your dealer for rigging expertise.
Compatible Controls:
Mechanical Controls
Multi-Function Tiller Handle
Compatible Gauges:
Command Link and Analog Gauges
PERFORMANCE BULLETINS
FEATURES & BENEFITS
Power and Performance:
Power And Efficiency
Powerful Hole Shot
Optimum Performance
Lightweight, Compact Design
Quick Acceleration
Convenience and Control:
Multi-Function Tiller Handle
Charging Power
Variable Trolling
Extended Engine Life
RELIABILITY & DURABILITY
CORROSION PROTECTION
Combined with our proprietary alloy (YDC-30), our Phaze Five™ electro-deposited paint process provides a five-layer barrier against corrosion. Stainless Steel components such as the drive, prop and shift shafts provide an additional layer of critical corrosion protection. And multiple sacrificial anodes throughout the motor provide protection from the elements.
