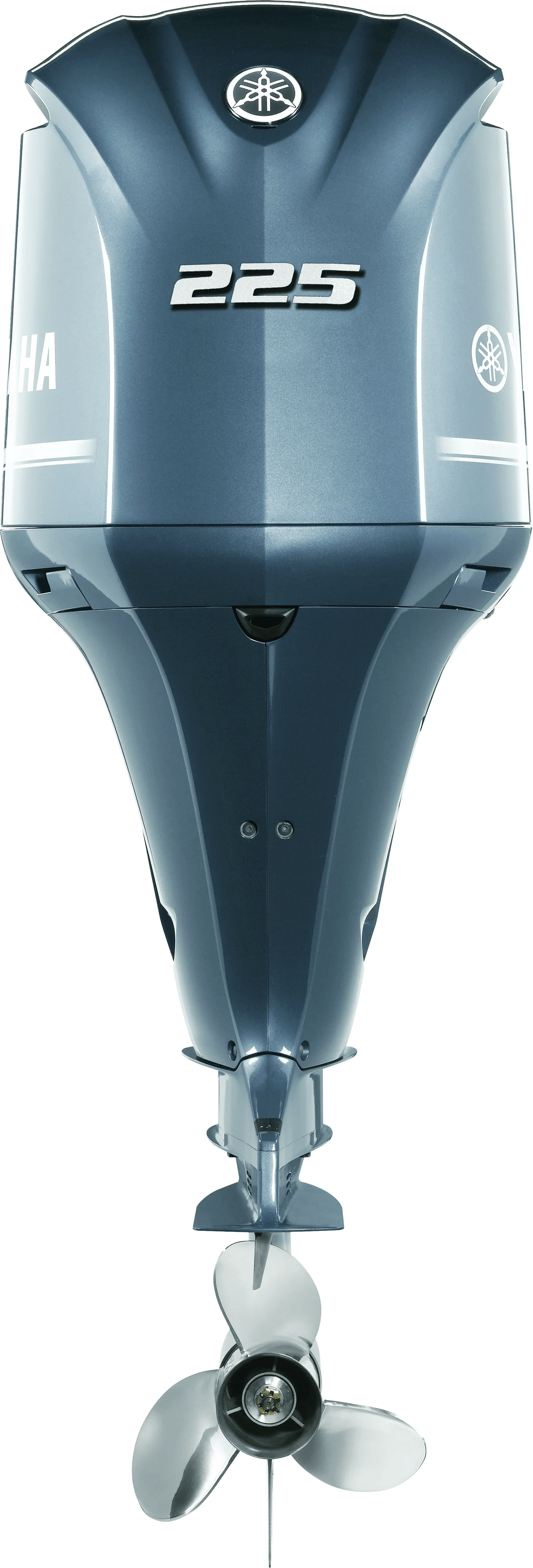

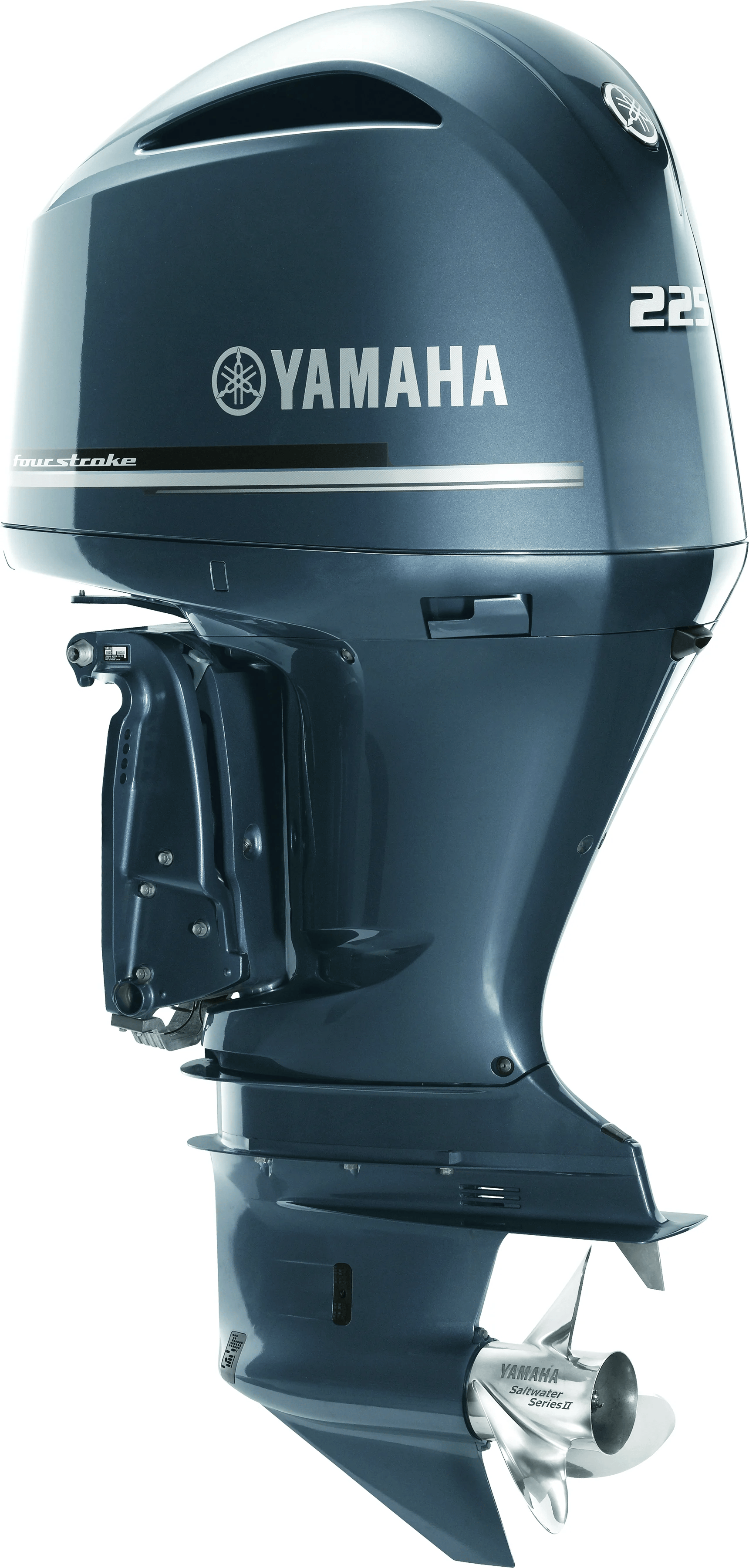

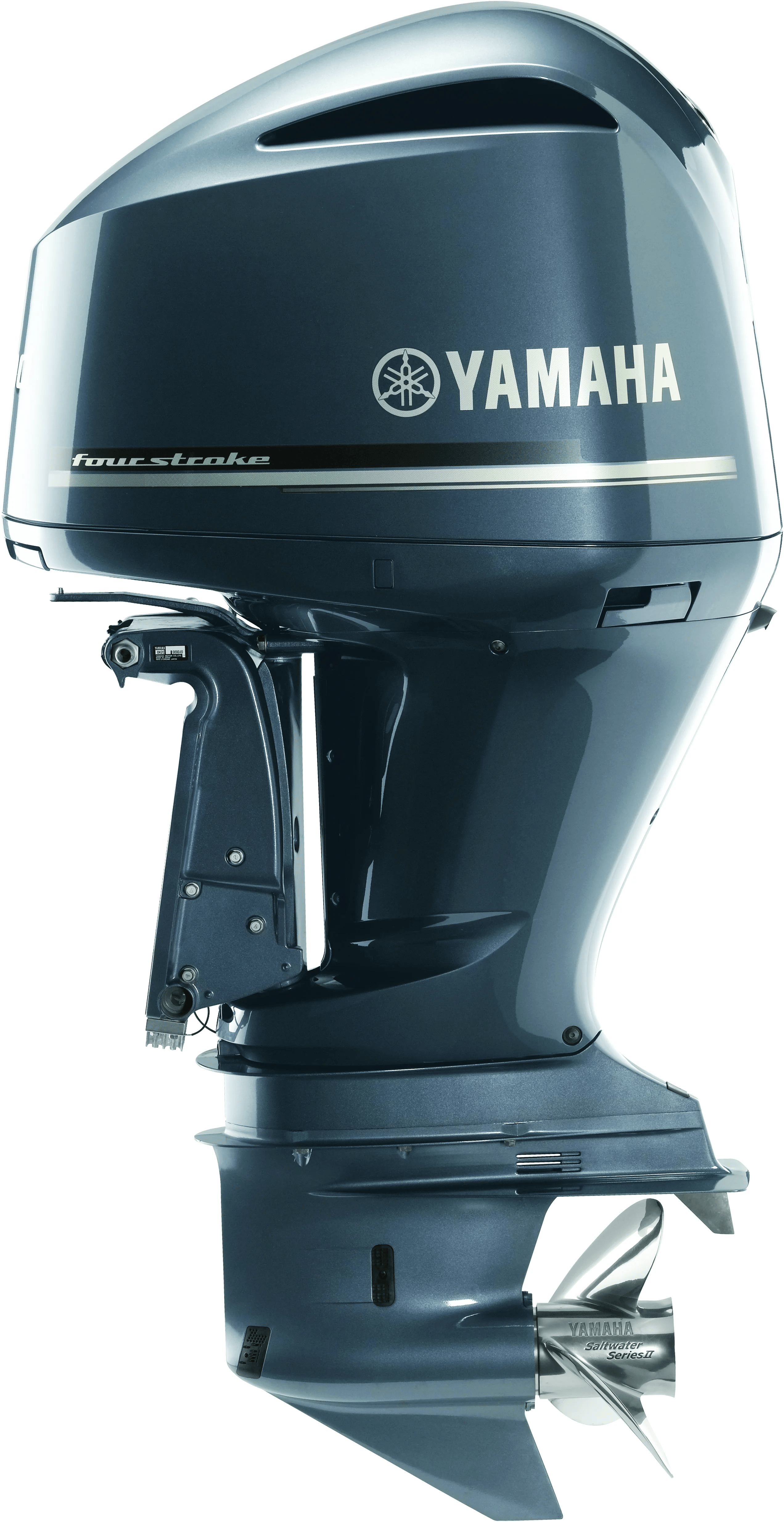

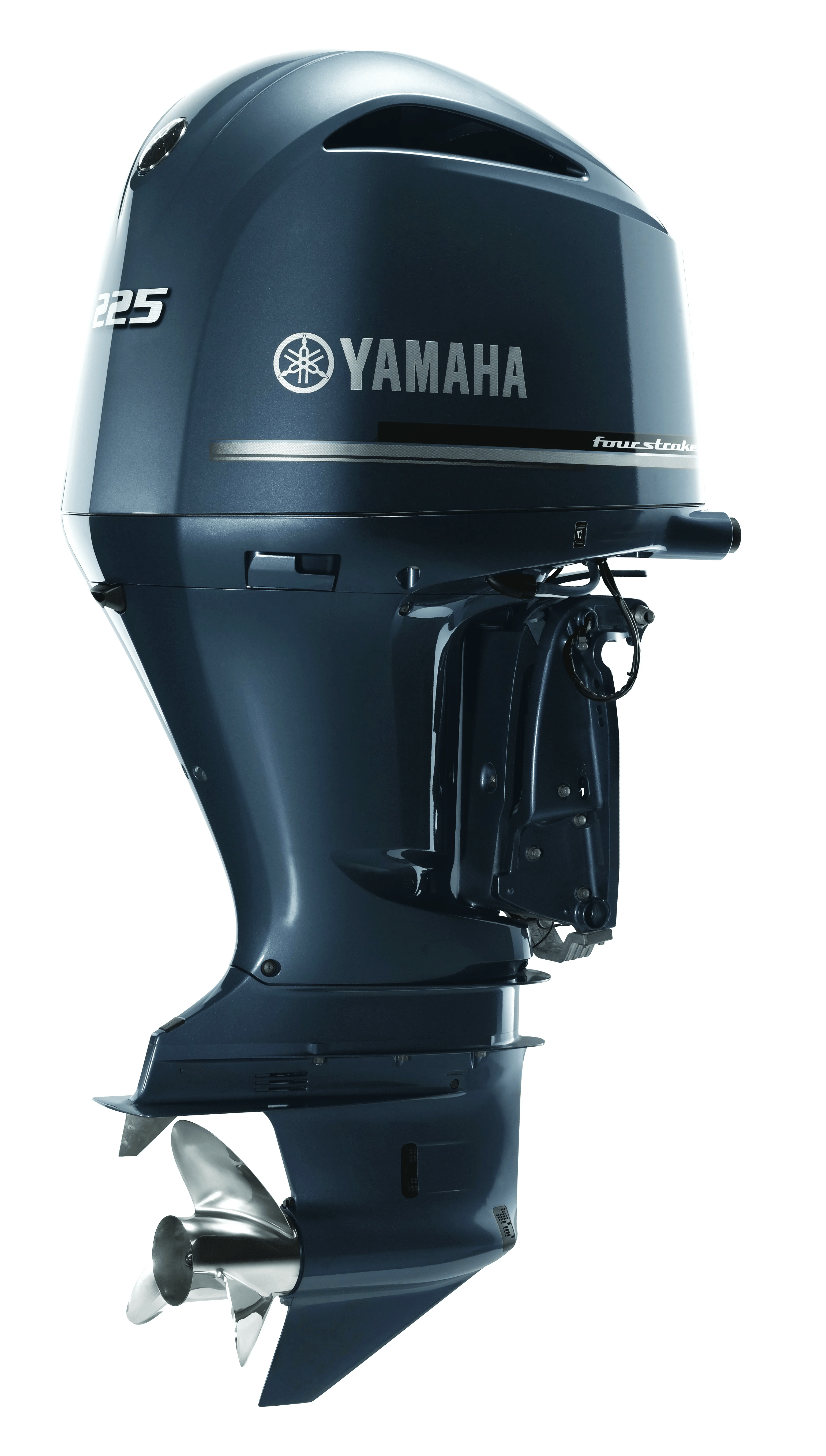

F225

F225


Perfect for 20-foot decks or deep-Vs, the versatile V6 4.2-liter F225 allows you to increase your displacement without replacing your rigging.

  • Recommended fuel: 87 Octane
  • Shaft length: 25”
  • Alternator output: 50 amp
SPECIFICATIONS
  • Weight *: 250 kg (551 lbs) - 254 kg (562 lbs)
  • Full Throttle RPM Range: 5000 ~ 6000 rpm
  • Fuel Induction System: EFI
  • Recommended Engine Oil: Yamalube® 4M (See owner's manual)
  • Engine Type: V6
  • Displacement: 4.2L
  • Bore x Stroke: 96 x 96mm (3.78 x 3.78 in)
  • Prop Shaft Horsepower: 225hp at 5500 rpm
  • Alternator Output at W.O.T.: 50 - 70 Amp
  • Compression Ratio: 10.3:1
  • Recommended Fuel: Octane 87
  • Recommended Fuel Filtration: Yamaha 10-Micron Fuel/Water Separating Filter (external)
  • C.A.R.B. Rating: 3-Star
  • Exhaust: Through Propeller
  • Intake: 24
  • Ignition: TCI Microcomputer
  • Spark Plug: LFR6A-11
  • Starting System: Electric
  • Lubrication: Wet Sump
  • Engine Oil Capacity: 6.3/6.0L
  • Recommended Cooling: Thermostatic Control
  • Ethanol Blend Limit: 10% Maximum
  • Gear Ratio: 1.75:1
  • Gear Shift: Forward, Neutral, Reverse
  • Shaft Length: 25" - 30"
  • Degree of Tilt: 67°
  • Degree of Trim: -3° through +16°
  • Mounting Centers: 28.5"
  • Steering:
  • Steering Angle (maximum): 32° from center, either direction
  • Warranty: Limited 3-Year Pleasure, 3-Year Government, 1-Year Commercial


*Weight refers to shortest shaft length, and is measured without motor oil, gearcase oil and propeller (except models 25 hp and under, which include a standard propeller). All Jet model weights include the jet pump assembly (weight estimated).

COMPATIBILITY

The V6 Offshore® 225 is compatible with mechanical controls and a range of gauges and props to suit your preference for performance, control, and the display of data. Explore compatible components below and contact your dealer for rigging expertise.

Compatible Controls:
Mechanical Controls

Compatible Gauges:
Digital and Analog Gauges

PERFORMANCE BULLETINS
  • Boat Model: Albury Brothers® 23
  • Engine: F225XCA
  • Bulletin: View
  • Boat Model: Hurricane® FunDeck 236 OB
  • Engine: F225XB
  • Bulletin: View
  • Boat Model: Polar Kraft Kodiak 200 Pro
  • Engine: F225XB
  • Bulletin: View
  • Boat Model: Starcraft® Star Step 230 OB
  • Engine: F225XB
  • Bulletin: View
  • Boat Model: Warrior V198 Dual Console
  • Engine: F225XB
  • Bulletin: View
FEATURES & BENEFITS

Power and Performance:
4.2 Liter Big Bore Displacement
Fuel Efficiency
Light Weight
Throttle Response & Acceleration
Responsive Electric Steering

Convenience and Control:
Precise And Convenient Trolling
More Functionality / Security
Top Speed And Smooth Shifting
Fast, Easy Tilting
Powerful, Precise Maneuvering

Legendary

Reliability**

Miles offshore, there’s nothing more important than your outboard’s reliability. With more than a decade of proven performance and an outstanding track record, Yamaha’s 4.2L V6 Offshore is one of the smartest choices on the water.

RELIABILITY & DURABILITY

LONG RANGE FUEL ECONOMY
Multi-Point Electronic Fuel Injection ensures a precise mix of air and fuel for combustion efficiency.
