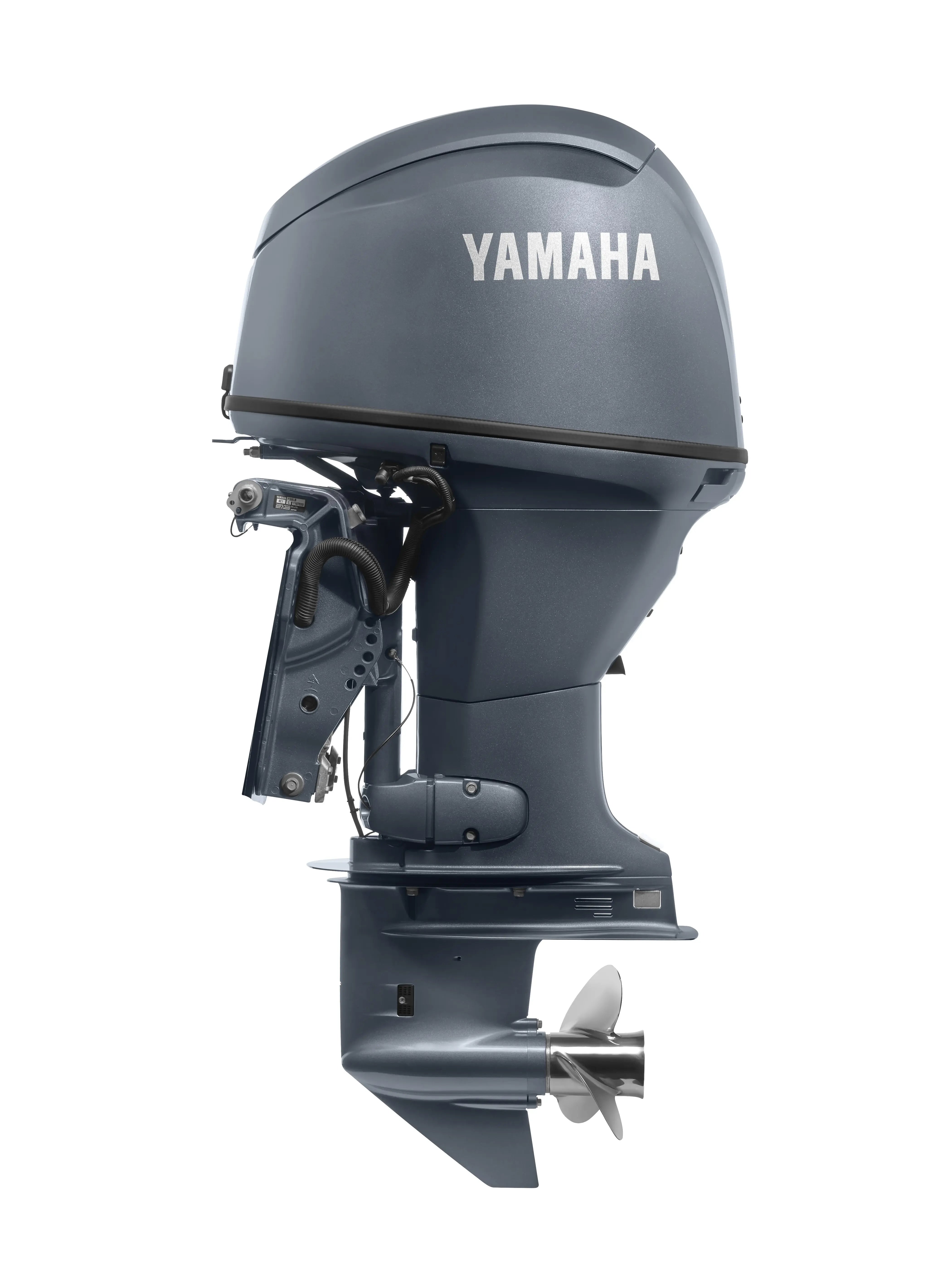

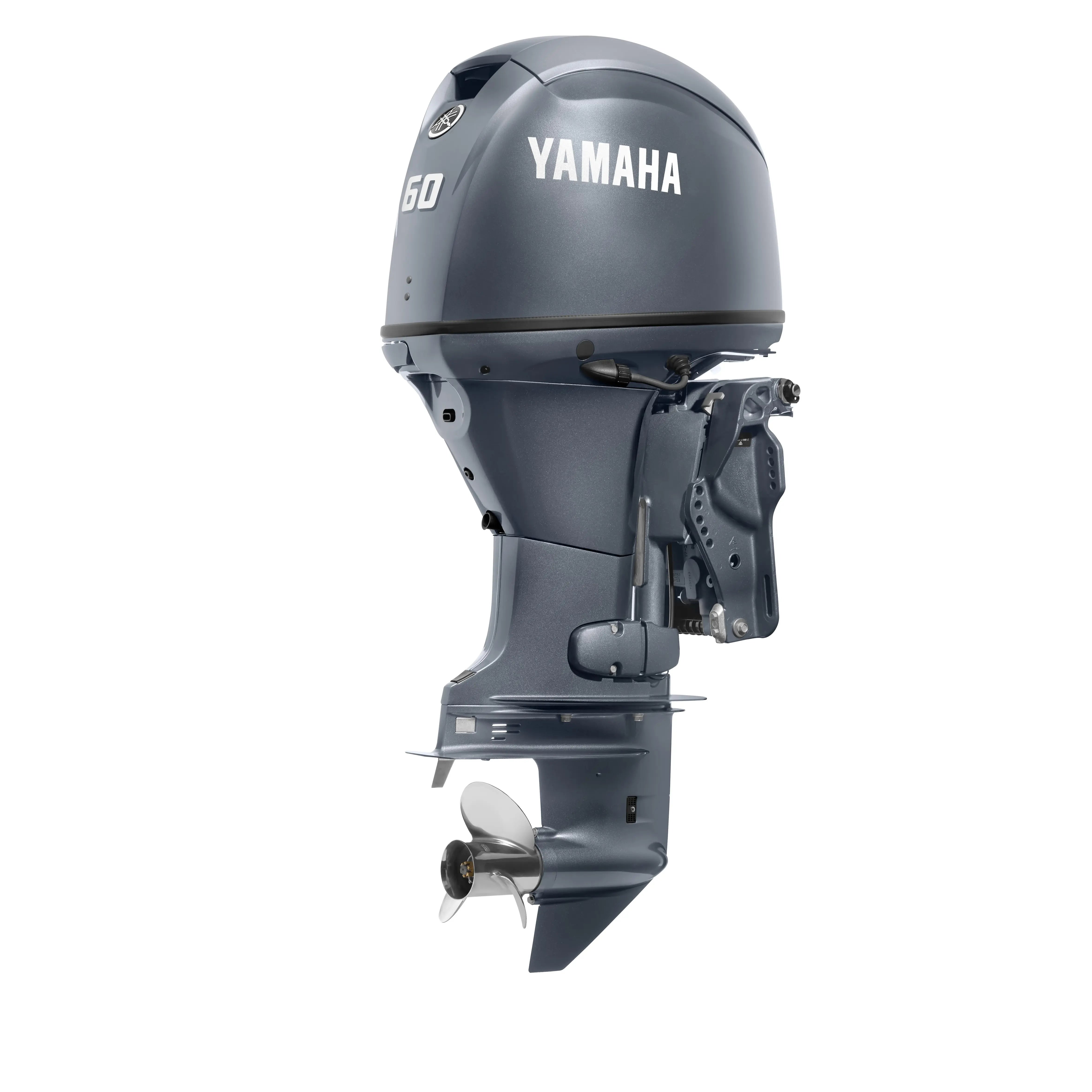

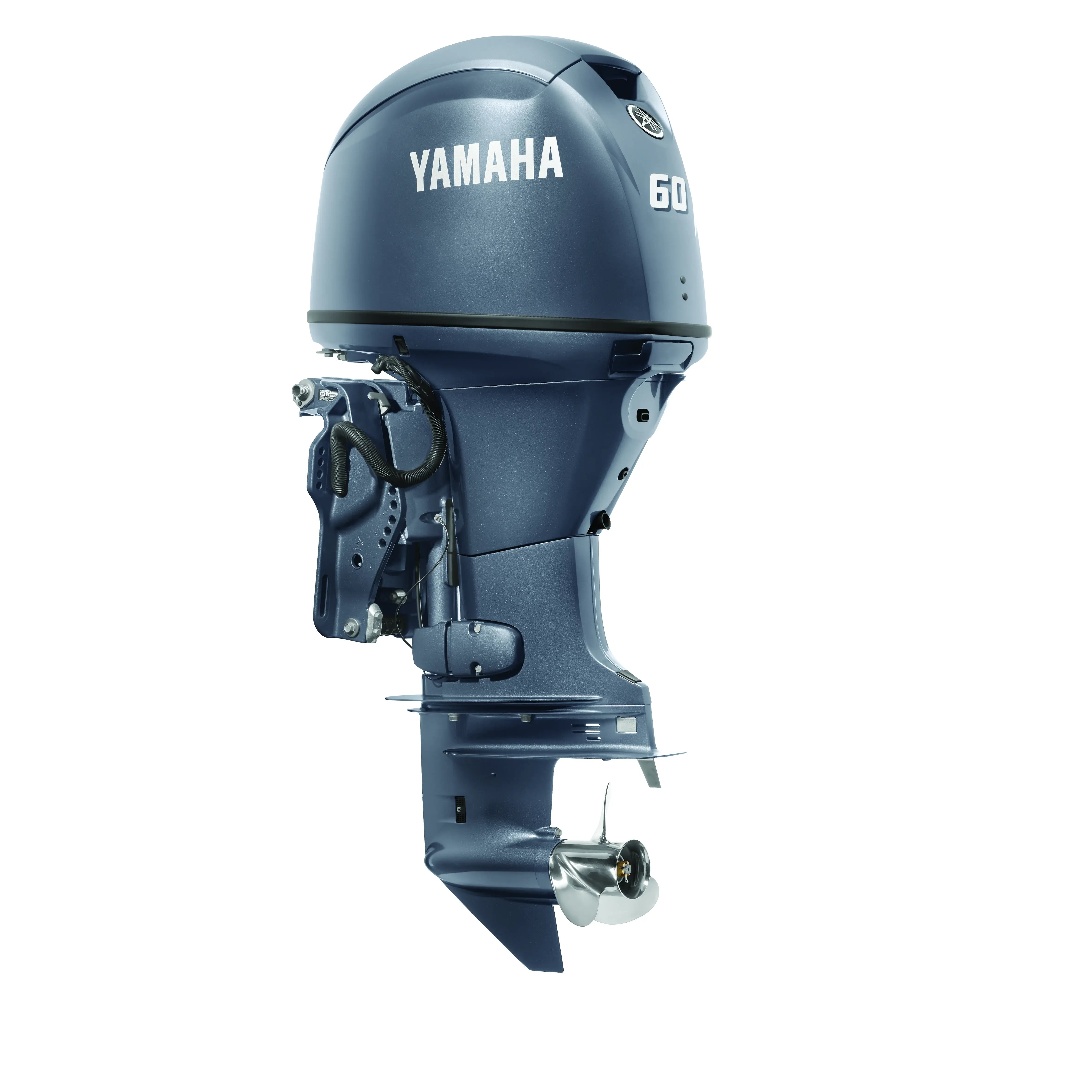

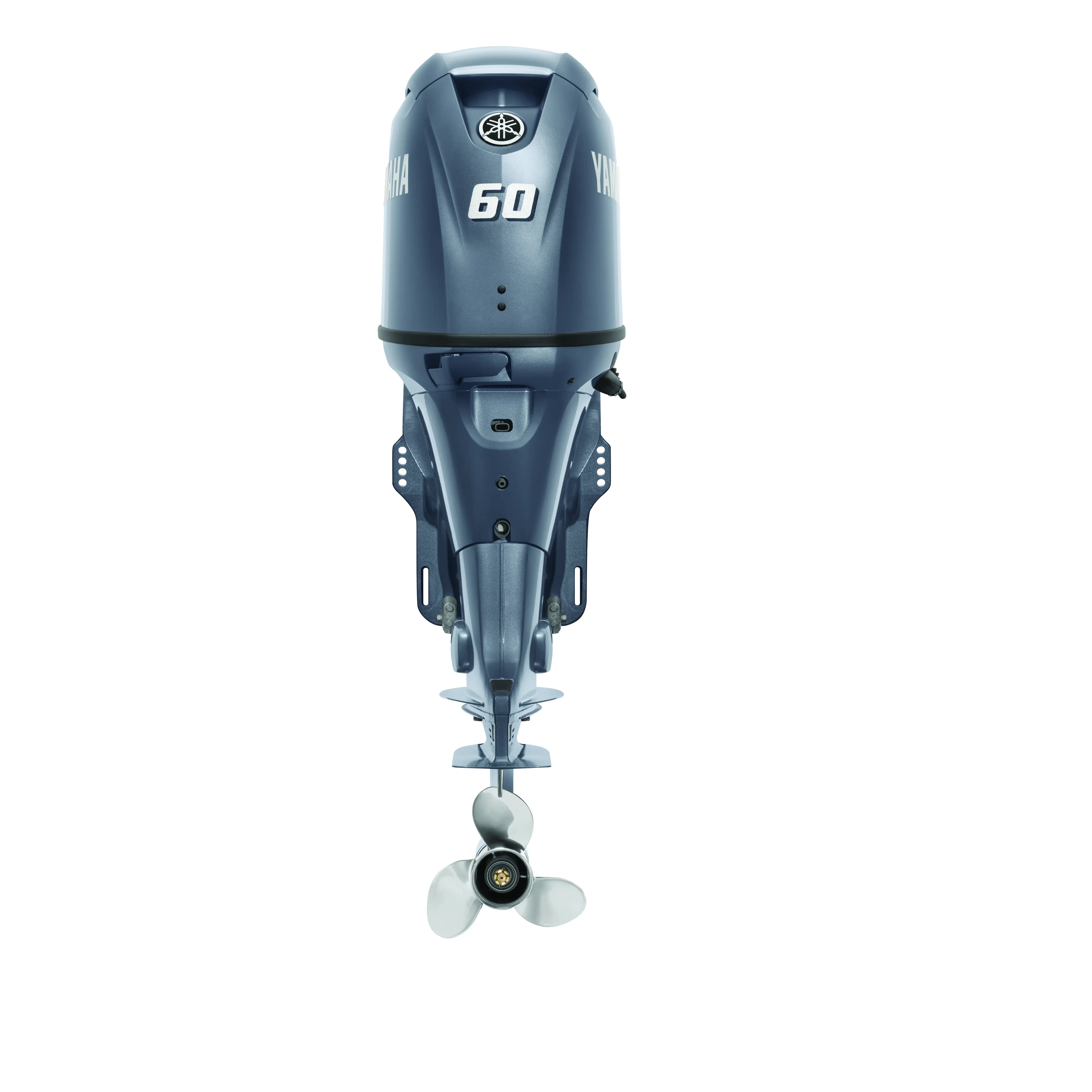

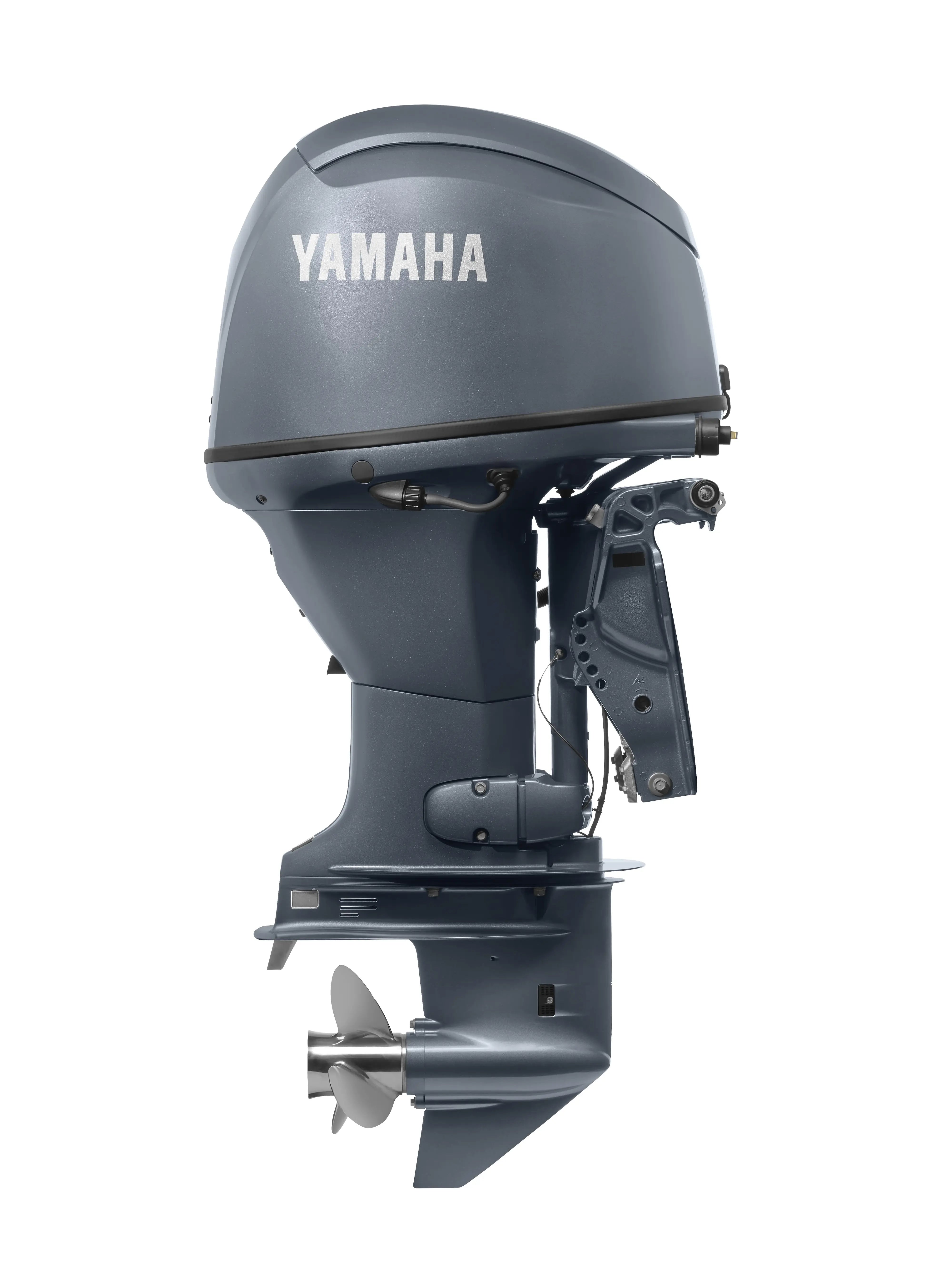

F60

F60


For inshore fishing performance in a few less horses, turn to Yamaha’s 1-liter 50-hp midrange. Inspired by the F70’s ingenious design, it combines light weight, exhilarating performance, and valuable efficiency. Depending on your gauge and control preference, the F50 allows you to access our Variable Trolling RPM Switch  (VTS®).

  • Only 247 pounds
  • Available in a 20” shaft
  • Powerful 16-amp alternator
  • Optional Variable Trolling RPM Switch (VTS®)
  • Available in a T60 High-Thrust model for heavy loads and an F60 Jet-Pump model for shallow water (F60 Jet model produces 40 horsepower at the jet pump nozzle)
  • Available in signature Yamaha gray, pearlescent white, and NEW matte brown
SPECIFICATIONS
  • Weight *: 112 kg (247 lbs)
  • Full Throttle RPM Range: 5000 ~ 6000 rpm
  • Fuel Induction System: EFI
  • Recommended Engine Oil: Yamalube® 4M (See owner's manual)
  • Engine Type: i4
  • Displacement: 1.0L
  • Bore x Stroke: 65 x 75mm (2.56 x 2.95 in.)
  • Prop Shaft Horsepower: 60hp at 5500rpm
  • Alternator Output at W.O.T.: 16 amp
  • Compression Ratio: 9.5:1
  • Recommended Fuel: Octane 87
  • Recommended Fuel Filtration: Yamaha 10-Micron Fuel/Water Separating Filter (external)
  • C.A.R.B. Rating: 3-Star
  • Exhaust: Through Propeller
  • Intake: 8
  • Ignition: TCI Microcomputer
  • Spark Plug: DPR6EB-9
  • Starting System: Electric
  • Lubrication: Wet Sump
  • Engine Oil Capacity: 2.1/1.9L
  • Recommended Cooling: Thermostatic Control
  • Ethanol Blend Limit: 10% Maximum
  • Gear Ratio: 1.85:1
  • Gear Shift: Forward, Neutral, Reverse
  • Shaft Length: 20"
  • Degree of Tilt: 69°
  • Degree of Trim: -4° through +16°
  • Mounting Centers: N/A
  • Steering:
  • Steering Angle (maximum): 40° from center, either direction
  • Warranty: Limited 3-year Pleasure, 3-year Government, 1-Year Commercial


*Weight refers to shortest shaft length, and is measured without motor oil, gearcase oil and propeller (except models 25 hp and under, which include a standard propeller). All Jet model weights include the jet pump assembly (weight estimated).

COMPATIBILITY

The Midrange 60 is compatible with tiller and mechanical controls and a range of gauges and props to suit your preference for performance, control, and the display of data. It also allows you to access our Variable Trolling RPM Switch (VTS®) depending on your rigging. Explore compatible components below and contact your dealer for rigging expertise.

Compatible Controls:
Mechanical Controls
Multi-Function Tiller Handle

Compatible Gauges:
Command Link and Analog Gauges

PERFORMANCE BULLETINS
  • Boat Model: Carolina Skiff® 16 JVXCC
  • Engine: F60LB
  • Bulletin: View
  • Boat Model: G3 Boats® Outfitter V177 T
  • Engine: F60LB
  • Bulletin: View
  • Boat Model: Smoker Craft® Pro Angler 162
  • Engine: F60LB
  • Bulletin: View
  • Boat Model: Starcraft® Starweld 1600 Pro DC
  • Engine: F60LB
  • Bulletin: View
  • Boat Model: Starcraft® Stealth 166 SC
  • Engine: F60LB
  • Bulletin: View
  • Boat Model: Zodiac Bayrunner 500
  • Engine: F60LB
  • Bulletin: View
  • Boat Model: Avid 18 Commander
  • Engine: F60LA
  • Bulletin: View
FEATURES & BENEFITS

Power and Performance:
Single Overhead Camshaft
Fuel Economy
Powerful Hole Shot
Optimum Performance
Precise Throttle Control

Convenience and Control:
Control And Comfort
Easy Engine Flushing
Gauge Compatibility

IMPRESSIVE TORQUE &

ACCELERATION

The impressive F70 Midrange weighs in at up to 80 pounds lighter than its competitors, giving it class-leading power-to-weight. Its siblings, the F60 and F50, also boast the same, ingenious engineering, with fewer horses.

RELIABILITY & DURABILITY

CORROSION PROTECTION
Combined with our proprietary alloy (YDC-30), our exclusive Phaze Five™ electro-deposited, anti-corrosive paint system provides a tough, five-layer barrier against corrosion. This protection is standard on all the Yamaha Midrange 70-, 60-, and 50-horsepower outboards.
