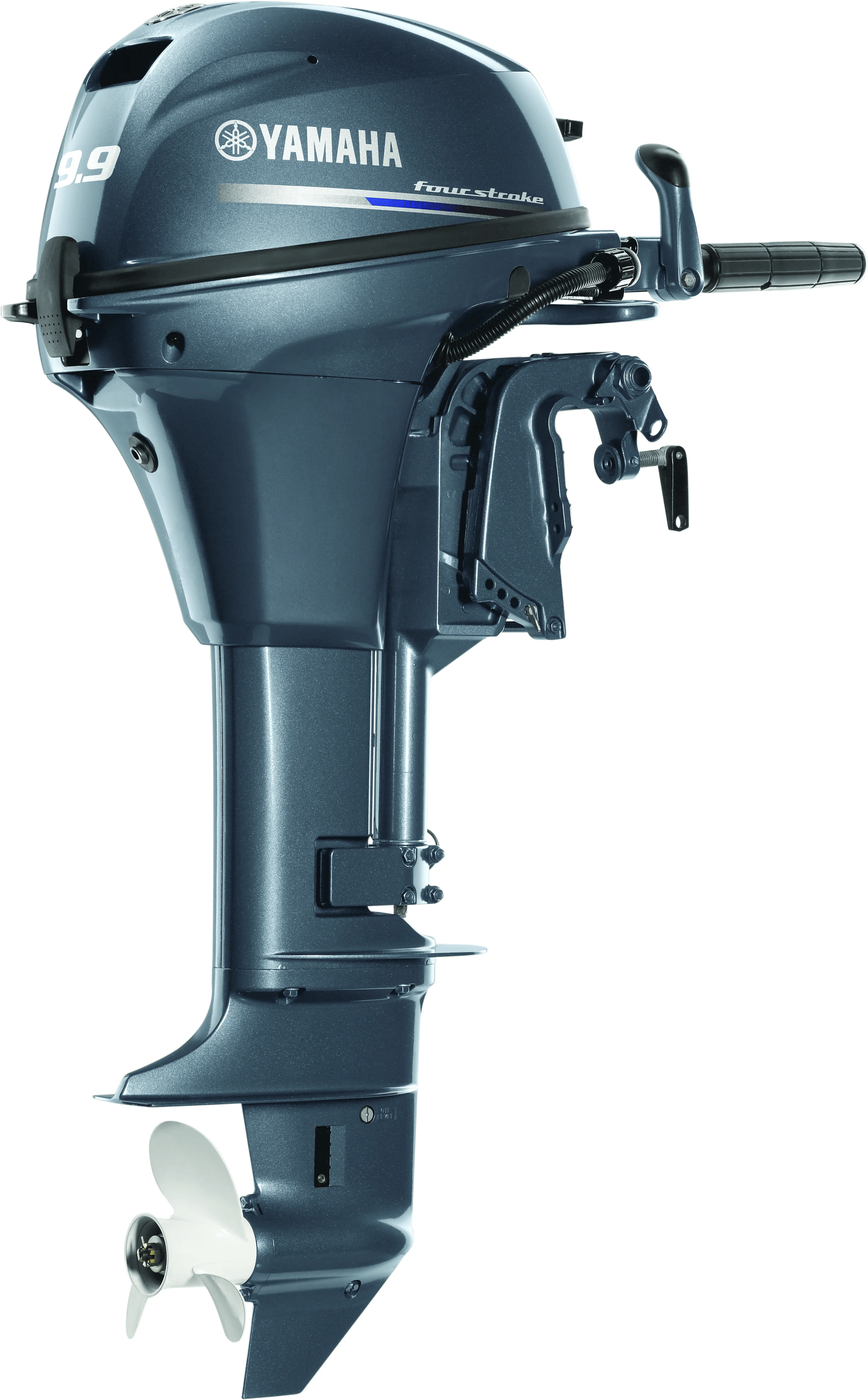

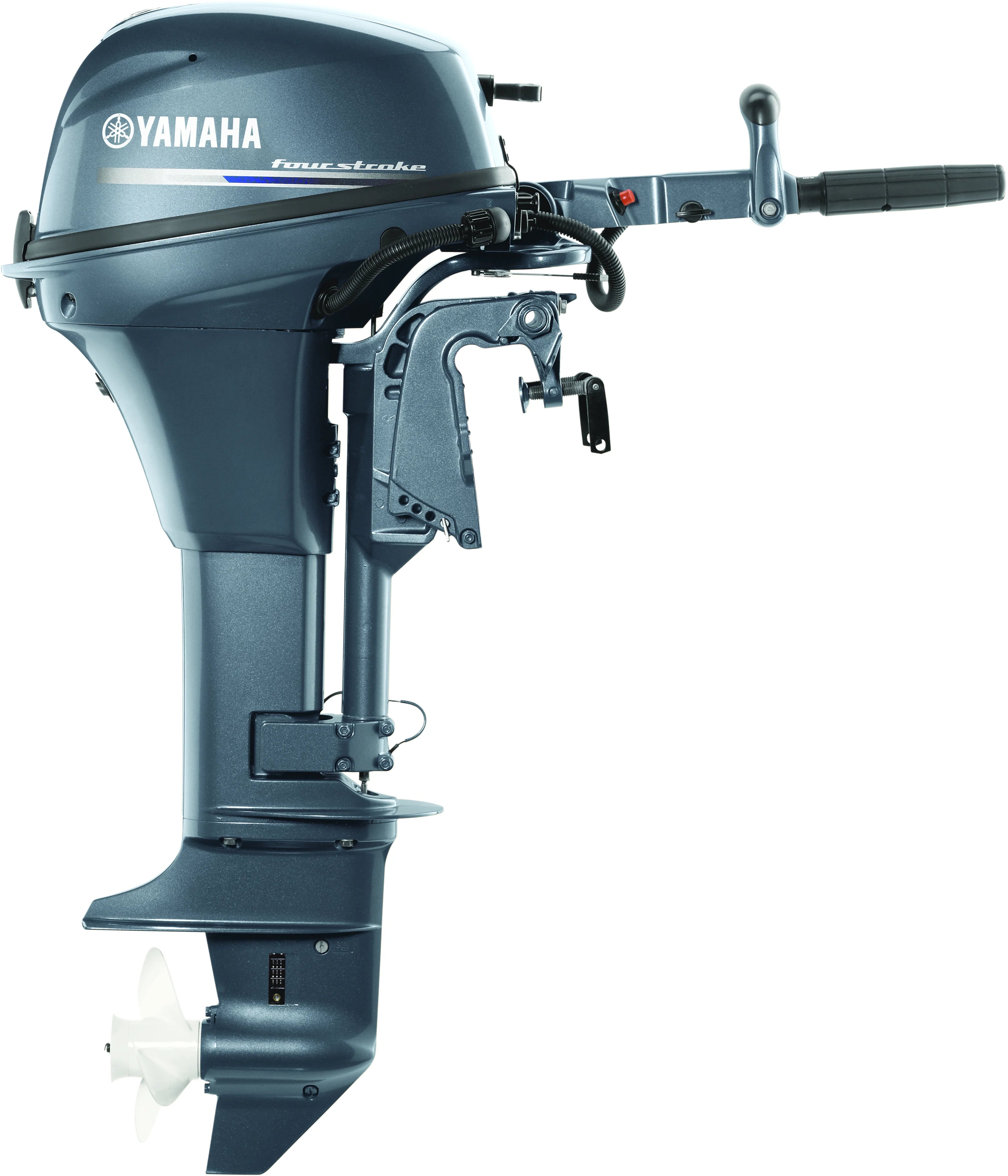

F9.9
Our 212-cc 9.9-hp portable is an impressive little outboard with a short tiller handle for increased comfort and the option of manual or electric start. The F9.9 platform is so popular, we also offer it with new pearlescent white styling, or in a high-thrust T9.9 format. The high-thrust model offers the option of a 25-inch shaft and a V MAX SHO® sport cowling when used as a kicker on a multi-species boat.
- Now available in new pearlescent white, in addition to Yamaha gray
- Only 87 pounds
- Available in 15” and 20” and 25” (T9.9 only) shaft lengths
- Solid 6-amp alternator
SPECIFICATIONS
- Weight *: 39 kg (87 lbs) - 42 kg (93 lbs)
- Full Throttle RPM Range: 5000 ~ 6000
- Fuel Induction System: Carb
- Recommended Engine Oil: Yamalube® 4M (See owner's manual)
- Engine Type: 2 cyl
- Displacement: 212cc
- Bore x Stroke: 56 x 43mm (2.20 x 1.70 in.)
- Prop Shaft Horsepower: 9.9hp @ 5500rpm
- Alternator Output at W.O.T.: 6
- Compression Ratio: 9.4:1
- Recommended Fuel: Octane 87
- Recommended Fuel Filtration: Yamaha 10-Micron Fuel/Water Separating Filter (external)
- C.A.R.B. Rating: 3-Star
- Exhaust: Through Propeller
- Intake: 4
- Ignition: CDI Microcomputer
- Spark Plug: BR6HS-10
- Starting System: Electric & Manual
- Lubrication: Wet Sump
- Engine Oil Capacity: 0.8L
- Recommended Cooling: Thermostatic Control
- Ethanol Blend Limit: 10% Maximum
- Gear Ratio: 2.08:1
- Gear Shift: Forward, Neutral, Reverse
- Shaft Length: 15" - 20"
- Degree of Tilt: 71°
- Degree of Trim: -4° through +16°
- Mounting Centers: N/A
Steering: - Steering Angle (maximum): 43° from center, either direction
- Warranty: Limited 3-Year Pleasure, 3-Year Government, 1-Year Commercial
*Weight refers to shortest shaft length, and is measured without motor oil, gearcase oil and propeller (except models 25 hp and under, which include a standard propeller). All Jet model weights include the jet pump assembly (weight estimated).
COMPATIBILITY
The 212-cc 9.9-hp portable is compatible with tiller and mechanical controls to suit your preference for performance and control. Explore compatible components below and contact your dealer for rigging expertise.
Compatible Controls:
Mechanical Controls
Multi-Function Tiller Handle
Compatible Gauges:
Command Link and Analog Gauges
FEATURES & BENEFITS
Power and Performance:
Compact, Lightweight Design
Responsive Acceleration
Streamlined Intake
Convenience and Control:
Smart Evolution
Portability And Storage
Propeller Protection
RELIABILITY & DURABILITY
OPTIMAL OPERATION
A CDI Microcomputer Ignition monitors throttle position, engine speed and atmospheric conditions in order to precisely adjust ignition timing under all conditions for optimum ignition performance, ensuring smooth and reliable operation.
